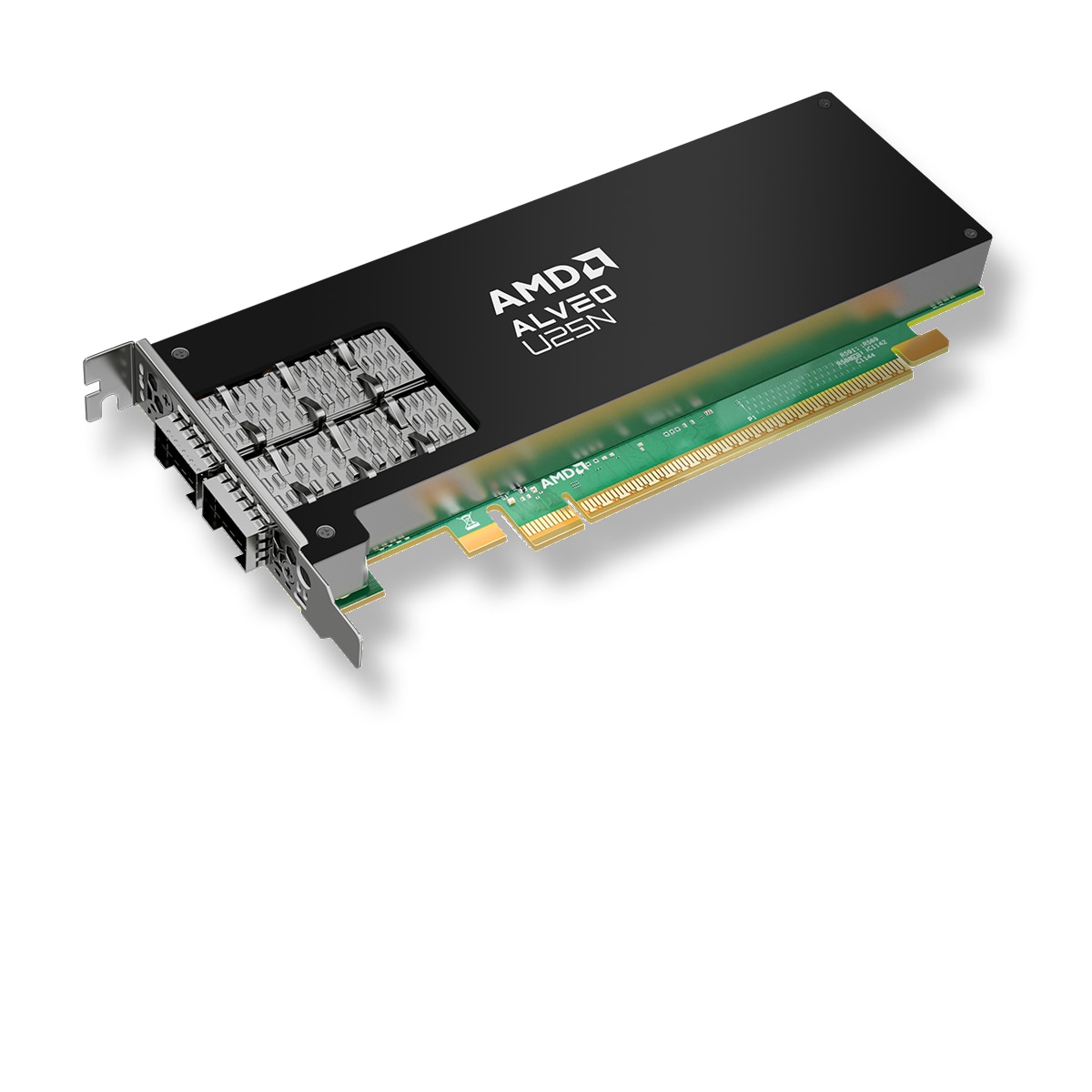

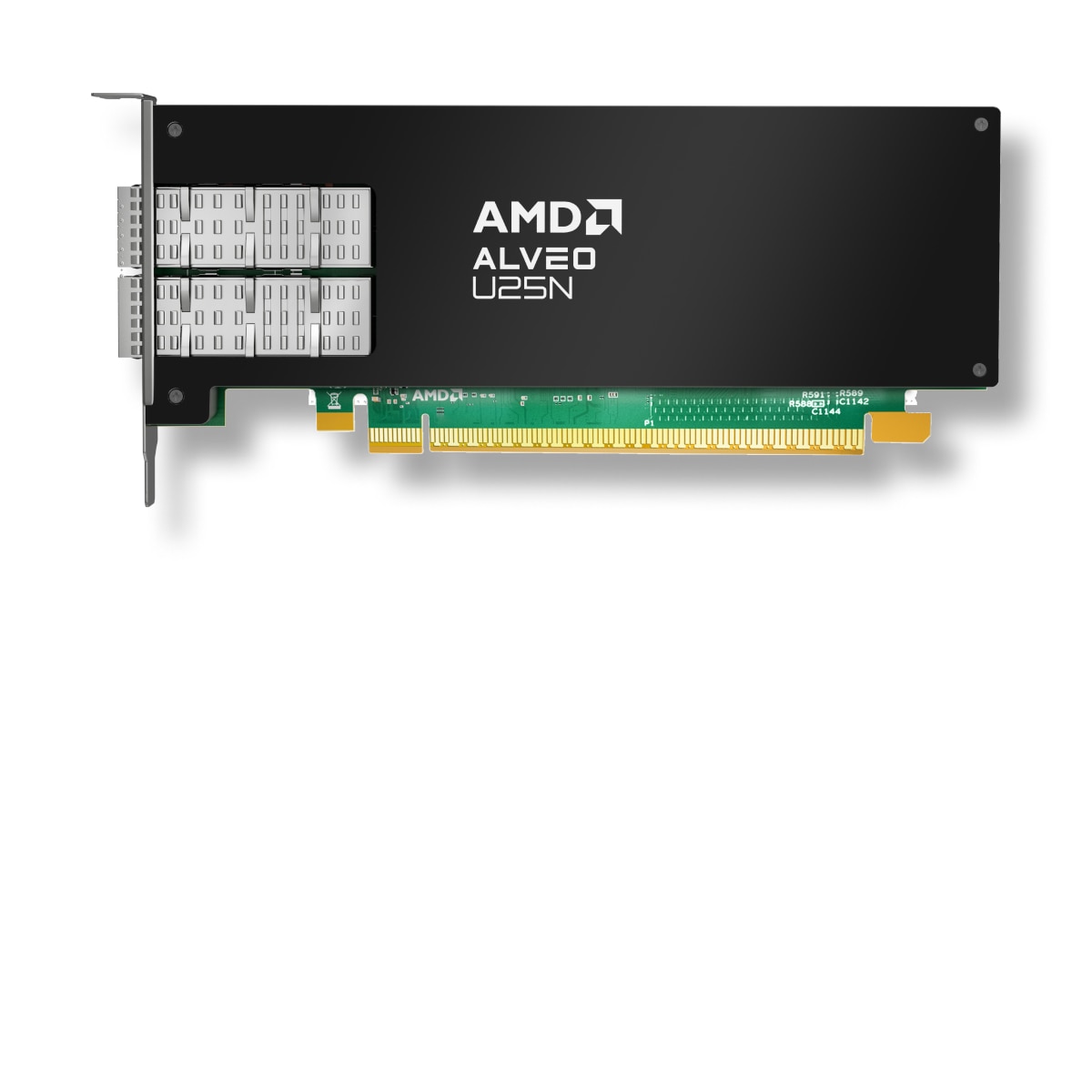

AMD Alveo™ U25N SmartNIC

For cloud architects building modern data centers, the AMD Alveo™ U25N provides a comprehensive SmartNIC Platform that brings true convergence of network, storage, and compute acceleration functions onto a single platform.

  • 价格: $1,824.00
  • 产品编号:
    • A-U25N-P06G-PQ-G

While the Alveo U25N accelerator card is actively being supported for current users, AMD recommends that all new designs target the Alveo U45 compute accelerator card. Contact an AMD product specialist for any questions.

Overview

For cloud and enterprise architects building modern data centers, the AMD Alveo™ U25N provides a comprehensive 25GbE SmartNIC platform that brings true convergence of network and security acceleration functions like OVS and IPsec into a single platform.

The U25N SmartNIC platform is based on the fusion of three technologies, a powerful System on a Chip (SoC) that includes an FPGA and multi-core Arm processor, and a proven XtremeScale™ X2 Ethernet Controller. The FPGA enables in-line hardware acceleration and offload with maximum efficiency while avoiding unnecessary data movements.

The Arm cores handle exception traffic processing, and FPGA-related management and statistics. The X2 Ethernet Controller chip provides a platform for processing two ports of 25 Gigabit Ethernet via field-proven software drivers

Key Features & Benefits

Powerful SmartNIC
The U25N delivers ultra-high throughput, small packet performance, and low latency. The host interface supports standard NIC drivers as well as Onload® kernel bypass to provide both TCP and packet-based APIs for network application acceleration. The U25N is also tamper-resistant and provides secure flow monitoring with enforcement via a stateless firewall.

Programmable Platform
The U25N SmartNIC contains a programmable FPGA processing all the network flows. Each flow can be individually delivered to the host and/or streamed in hardware through bump-in-the-wire network acceleration functions. The platform also enables the ability for customers to accelerate custom workloads.

Hardware Accelerated for Clouds
Cloud service providers are deploying SmartNIC fabrics to achieve virtual switching and micro-segmentation of services that scale linearly with CPU cores and network links. The U25N is a platform for the industry’s first converged SmartNIC fabric, including shrink-wrapped applications.

AMD Advantages

  • Bump-in-the-wire model to offload and accelerate networking and security functions
  • Turnkey advanced network accelerations including Open vSwitch (OvS), IPsec, and firewall
  • Application customization and programmability enables flexibility to add custom workloads
  • Baseline NIC feature parity with field-proven XtremeScale™ Ethernet controllers

  • Board Specifications

    PCI Express

    Gen3 x8

    Network Interfaces

    2x SFP28

    Look-up Tables (LUTs)

    522K

    DDR

    1x 2GB x 40 DDR4-2400
    1x 4GB x 72 DDR4-2400

    Hardware Time Stamping

    Yes

    PXE and UEFI Boot Support

    Yes

  • Dimensions

    Height

    2.54 inch (64.4 mm)

    Length

    6.60 inch (167.65 mm)

    Width

    Single x16 PCIe Slot

  • Networking

    Stateless Offloads

    Yes

    Tunneling Offloads

    VXLAN / Geneve

    SR-IOV

    Yes

    Advanced Packet Filtering

    Yes

    Acceleration

    DPDK, Onload™

  • Power & Thermal

    Maximum Total Power

    <45W

    Thermal Cooling

    Passive


    For full product specifications refer to the Product Brief.
