AMD Zynq™ 7000 SoC ZC706 Evaluation Kit

发布者: AMD

The AMD Zynq™ 7000 SoC ZC706 Evaluation Kit includes all the basic components of hardware, design tools, IP, and pre-verified reference designs including a targeted design, enabling a complete embedded processing platform and transceiver based designs including PCIe. The included pre-verified reference designs and industry-standard FPGA Mezzanine Connectors (FMC) allow scaling and customization with daughter cards. Please check the PetaLinux Software Development Kit page for information on the AMD processing systems.

产品编号:
- EK-Z7-ZC706-G
交付周期: Discontinued
器件支持: Zynq 7000

Discontinued: This development kit has been discontinued and is no longer offered for sale. The solutions targeted for this product will not be updated moving forward with limited support available from AMD.

Product Information

Features & Devices
Specifications
What's Inside

Key Features & Benefits

Optimized for quickly prototyping embedded applications using Zynq 7000 SoCs
Hardware, design tools, IP, and pre-verified reference designs
Demonstrates a embedded design, targeting video pipeline
Advanced memory interface with
1GB DDR3 Component Memory
1GB DDR3 SODIM Memory
Enabling serial connectivity with PCIe Gen2x4, SFP+ and SMA Pairs, USB OTG, UART, IIC
Supports embedded processing with Dual ARM Cortex-A9 core processors
Develop networking applications with 10-100-1000 Mbps Ethernet (RGMII)
Implement Video display applications with HDMI out
Expand I/O with the FPGA Mezzanine Card (FMC) interface

Featured AMD Devices

Featuring the ROHS compliant ZC706 including the XC7Z045 FFG900 – 2 SoC

Logic Cells	350
Block RAM (Mb)	19.1
DSP Slices	900
Maximum Transceiver Count	16
Maximum I/O Pins	362

Board Features

Featuring the ZC706 Evaluation Board

Communication & Networking

PCIe Gen2x4
SFP+ and SMA Pairs
GigE RGMII Ethernet (PS)
USB OTG 1 (PS) - Host USB
IIC Bus Headers/HUB (PS)
1 CAN with Wake on CAN (PS)
USB UART (PS)

Clocking

33MHz PS System Clock
200MHz PL Oscillator (Single-Ended Differential)
SMA Connectors for external clock (Differential)
GTX Reference Clock port with 2 SMA connectors
OBSAI/CPRI – SFP+ Received clock
EXT Config CLK

Configuration

Onboard configuration circuitry
2X16MB Quad SPI Flash
SDIO Card Interface (boot)
PC4 and 20 pin JTAG ports

Expansion Connectors

1st FMC LPC expansion port (34 LVDS Pairs on LA Bus, 1 GT)
2nd FMC HPC expansion port (34 LVDS Pairs on LA Bus, 8 GT – No HA or HB bus)
Dual Pmod (8 I/O Shared with LED’s)
Single Pmod (4 I/O)
IIC access to 8 I/O

Memory

DDR3 Component Memory 1GB (PS)
DDR3 SODIM Memory 1GB (PL)
2X16MB Quad SPI Flash (config)
IIC - 1 KB EEPROM

Control & I/O

2 User Push Buttons/Dip Switch, 2 User LEDs
IIC access to GPIO
SDIO (SD Card slot)
3 User Push Buttons, 2 User Switches, 8 User LEDs
IIC access to 8 I/O
IIC access to a WTClock

Analog

AMS interface (Analog) System Monitor and also available for external sensor

Power

12 V wall adaptor
Current measurement capability of supplies

What's Inside

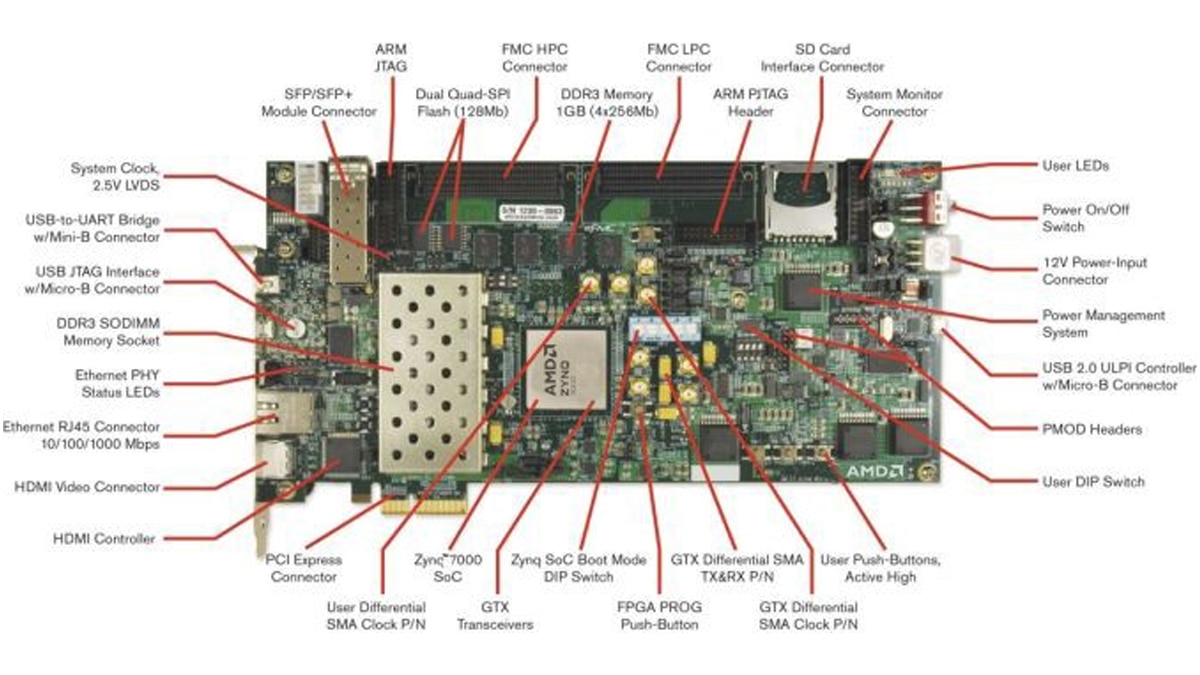

ZC706 Evaluation Board

Featuring the XC7Z045 FFG900 -2 SoC

Full seat Vivado™ Design Suite: Design Edition

Node locked & Device-locked to the Zynq 7000 XC7Z045 SoC, with 1 year of updates

Ethernet Cable

ATX PCIe Minifit Jr Power Adapter

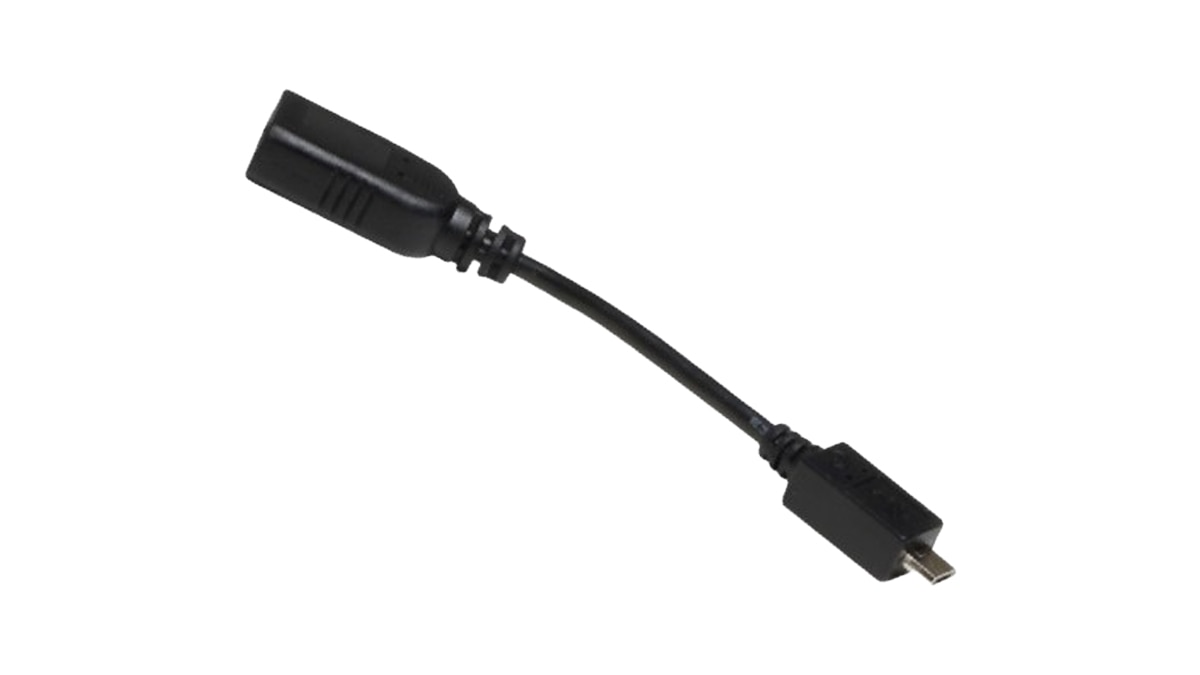

USB Adapter

Mini USB Cable

HDMI Cable

Micro USB Cable

Meets all the power requirements UltraScale FPGA GTH transceiver

Power Cord and Adapter

white pearl gradient medium color divider

Resources

ZC706 Documentation

Design Tools & Downloads

Name	Description	License Type	Files
Vivado Design Suite	The AMD Vivado™ Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for FPGAs and SoCs.	Node locked and device-locked to the XCZU7EV MPSoC FPGA, with one year of updates	Download Vivado Design Suite
Vitis Unified Software Platform	Full suite of tools for embedded software development, hardware acceleration, and debug targeting AMD platforms.	Free	Download Vitis Embedded Platforms
PetaLinux Tools	Configure, Build, and Deploy Linux operating system to AMD platforms.	Free	Download Petalinux Tools

Additional Tools, IP and Resources

Provider Name	Product Category	Item	Description
Deep Learning HDL Toolbox	Support Package	MathWorks	Enables deployment of deep learning processors on AMD FPGAs and SOCs using MATLAB
Getting Started Guide for Deep Learning HDL Toolbox	Training	MathWorks	Learn how to create, compile, and deploy a dlhdl.workflow object using Deep Learning HDL Toolbox™ Support Package.
