AMD Virtex™ 7 FPGA VC709 Connectivity Kit

por: AMD

The AMD Virtex™ 7 FPGA VC709 Connectivity Kit is a 40Gb/s platform for high-bandwidth and high-performance applications containing all the necessary hardware, tools and IP to power quickly through your evaluation and development of connectivity systems. This includes a 40Gb/s targeted reference design featuring PCI Express Gen 3, a DMA IP core from Northwest Logic, 10GBase-R, AXI, and a Virtual FIFO memory controller interfacing to an external DDR3 memory. To control and monitor this design, the kit includes a connectivity GUI built on Fedora Live OS which includes all the software drivers. Additionally, this kit contains two fiber optic cables and four transceiver modules leveraged by this design.

Precio: $8,094.00
Part Number:
- DK-V7-VC709-G
Lead Time: 8 Weeks
Device Support: Virtex 7

Añadir a carro

Product Information

Features & Devices
Specifications
What's Inside

Key Features & Benefits

40Gb/s Connectivity platform for high-bandwidth and high-performance applications using Virtex 7 VX690T FPGAs
Hardware, design tools, IP, and pre-verified reference designs
Demonstrates an Featuring 10GBase-R interfacing to external DDR3 memory
Advanced memory interface with 2 4GB DDR3 SODIM Memory up to 933MHz / 1866Mbps
Enabling serial connectivity with PCIe Gen3x8, 4 SFP+, SMA Pairs, and UART
Supports embedded processing with MicroBlaze, soft 32bit RISC
Develop networking and other serial applications with 4 SFP/SFP+ ports
Expand I/O with the FPGA Mezzanine Card (FMC) interface

Featured AMD Devices

Featuring the ROHS compliant VC709 kit including the XC7VX690T-2FFG1761C

Logic Cells	693,120
DSP Slices	3,600
Memory (Kb)	52,920
GTH 13.1Gb/s Transceivers	80
I/0 Pins	1,000

Board Features

Featuring the AMD Virtex 7 FPGA VC709 Connectivity Kit

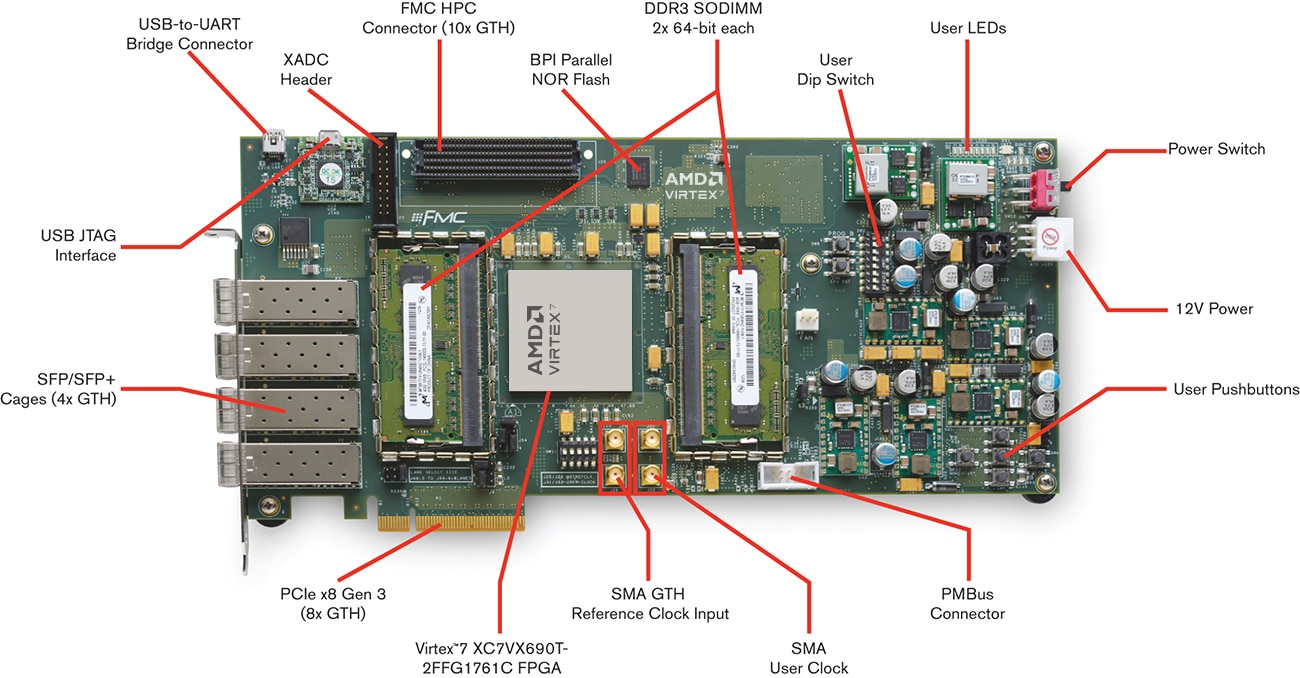

AMD Virtex™ 7 FPGA VC709 Connectivity Kit callouts

Communication & Networking

4x SFP/SFP+ cages
10x GTH ports to FMC
UART To USB Bridge
PCI Express 8-lane edge connector

Configuration

Onboard JTAG configuration circuitry to enable configuration over USB
BPI Parallel NOR Flash: 32MB (256Mb)

Power

AC Power adapter (12V) or ATX

Clocking

Fixed Oscillator with differential 200MHz output
Used as the “system” clock for the FPGA
Fixed Oscillator with differential 233.33MHz output
Used as the "memory" clock
User Programmable (IIC) Differential Oscillator (Range: 10MHz - 810 MHz, 156.250 MHz default)
Differential SMA clock input
Differential SMA GTH reference clock input
Jitter attenuated clock
Used to support CPRI/OBSAI applications that perform clock recovery from a user-supplied SFP/SFP+ module

Expansion Connectors

FMC-HPC (Partially Populated) connector
GTH Transceivers (x10) , 160 single-ended or 80 differential (34 LA & 46 HA) user defined signals
VADJ fixed at 1.8 volts

Memory

DDR3 SODIMM (qty 2) - each with 4GB up to 933MHz / 1866Mbps
BPI Parallel NOR Flash: 32MB (256Mb)
IIC EEPROM: 1KB (8Kb)

Control & I/O

User Push Buttons (x5)
User DIP Switch (8-position)
User LEDs (x8)

What's Inside

AMD Virtex™ 7 FPGA VC709 Connectivity Kit

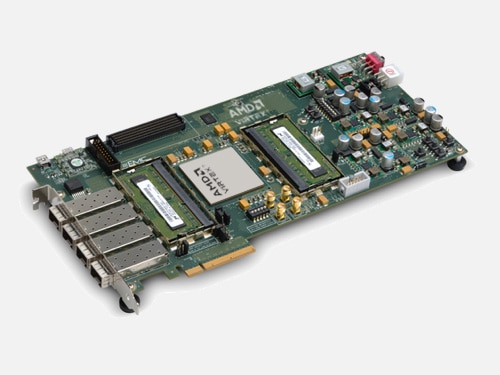

VC709 Evaluation Board

Featuring the Virtex 7 XC7VX690T-2FFG1761C FPGA

Full seat Vivado™ Design Suite: Design Edition

Node locked & Device-locked to the Virtex 7 XC7VX690T FPGA, with 1 year of updates

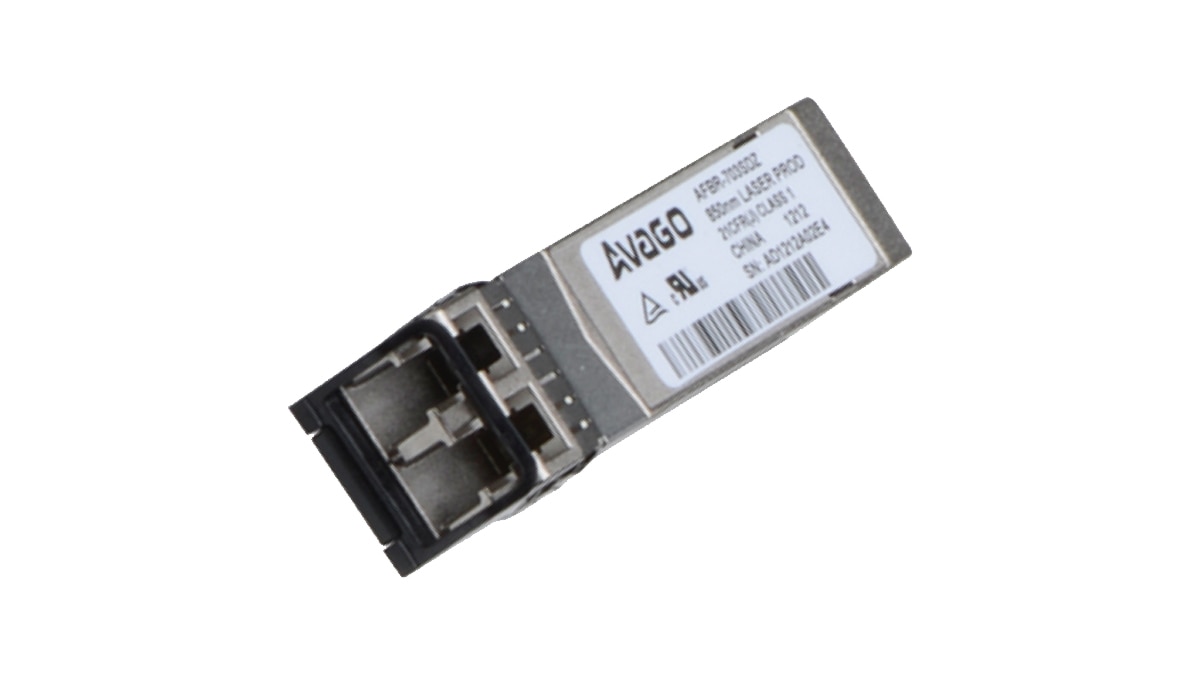

Four 10Gb Ethernet Transceiver Modules

Two Fiber Optic Patch Cables

Micro USB Cable

Mini USB Cable

Power Adapter

Power Cord

Programmable MEMS Oscillators

SiTime

Power Delivery Solutions

AMD

white pearl gradient medium color divider

Resources

VC709 Documentation

Design Tools

Name	Description	License Type
Vivado Design Suite Design Edition	The AMD Vivado™ Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for FPGAs and SoCs.	Node locked & Device-locked to the Virtex 7 690T FPGA, with 1 year of updates

Intellectual Property

Name	Description	License Type
PCI Express DMA Back-End Core (Northwest Logic)	Northwest Logic’s PCI Express DMA Back-End Core	Hardware Time Out Evaluation license for the Northwest Logic DMA implemented with and limited to an AXI DMA Back-End interface See More
Memory Interface Generator (MIG)	MIG is a free software tool used to generate memory controllers and interfaces for AMD FPGAs	No-charge IP
AXI Interconnect	The AXI Interconnect IP connects one or more AXI memory-mapped Master devices to one or more memory-mapped Slave devices. The AXI interfaces conform to the AMBA® AXI version 4 specifications from ARM®, including the AXI4-Lite control register interface subset.	No-charge IP
AXI Virtual FIFO Controller	The AXI Virtual FIFO Controller is a key Interconnect Infrastructure IP which enables users to access external memory segments as multiple FIFO blocks. The AXI Virtual Controller provides AMBA® AXI4-Stream write (master) as well as read (slave) interface to AXI4 DRAM memory mapped interface of external memory.	No-charge IP
10 Gigabit Ethernet PCS/PMA (10GBASE-R)	The 10 Gigabit Ethernet PCS/PMA (10GBASE-R) is a no charge AMD LogiCORE which provides a XGMII interface to a 10 Gigabit Ethernet MAC and implements a 10.3125 Gbps serial single channel PHY providing a direct connection to a XFP using the XFI electrical specification or SFP+ optical module using SFI electrical specification. This optical module can be connect to a 10GBASE-SR, -LR or –ER optical link.	No-Charge IP
10 Gigabit Ethernet Media Access Controller (10GEMAC)	AMD provides a parameterizable LogiCORE™ IP solution for the 10 Gigabit per second (Gbps) Ethernet Media Access Controller function used to interface to Physical Layer devices in a 10Gbps Ethernet (10GE) system.	Eval Version - Simulation Only

Training

Support
