General Specifications
- FPGA Resources
787K Look-up Tables (LUTS)
1,722K registers
1,680 DSP Slices
256 Mb embedded memory (76 Mb Block RAM, 180 Mb UltraRAM)
- Transceivers
8 GTYP transceivers (32.75 Gb/s)
64 GTF ultra-low latency
- On-Board Memory
16 GB DDR4, 64b +8b ECC at 2666 MT/s
72 MB, 2x288 Mb QDR I+, 550 Mhz
- Interfaces
4x QSFP-DD (32 x 10/25G ports)
- Expansion Ports
Four ARF6 supports additional 32x10/25G ports to connect multiple cards
Two Pico-Clasp connectors for sideband
- Clock Synchronization
1PPS In
- Configuration and Debug
2 Gbit QSPI, JAG over Micro USB
- PCle® Interface
PCle Gen4 x8 (x16 physical connector)
- Form Factor
Full-height, ¾ Length (FHAL)
Single slot
- Power and Thermal
180W Electrical
125W TDP
Passive cooling
-
图像缩放
-
图像缩放
-
图像缩放
-
图像缩放

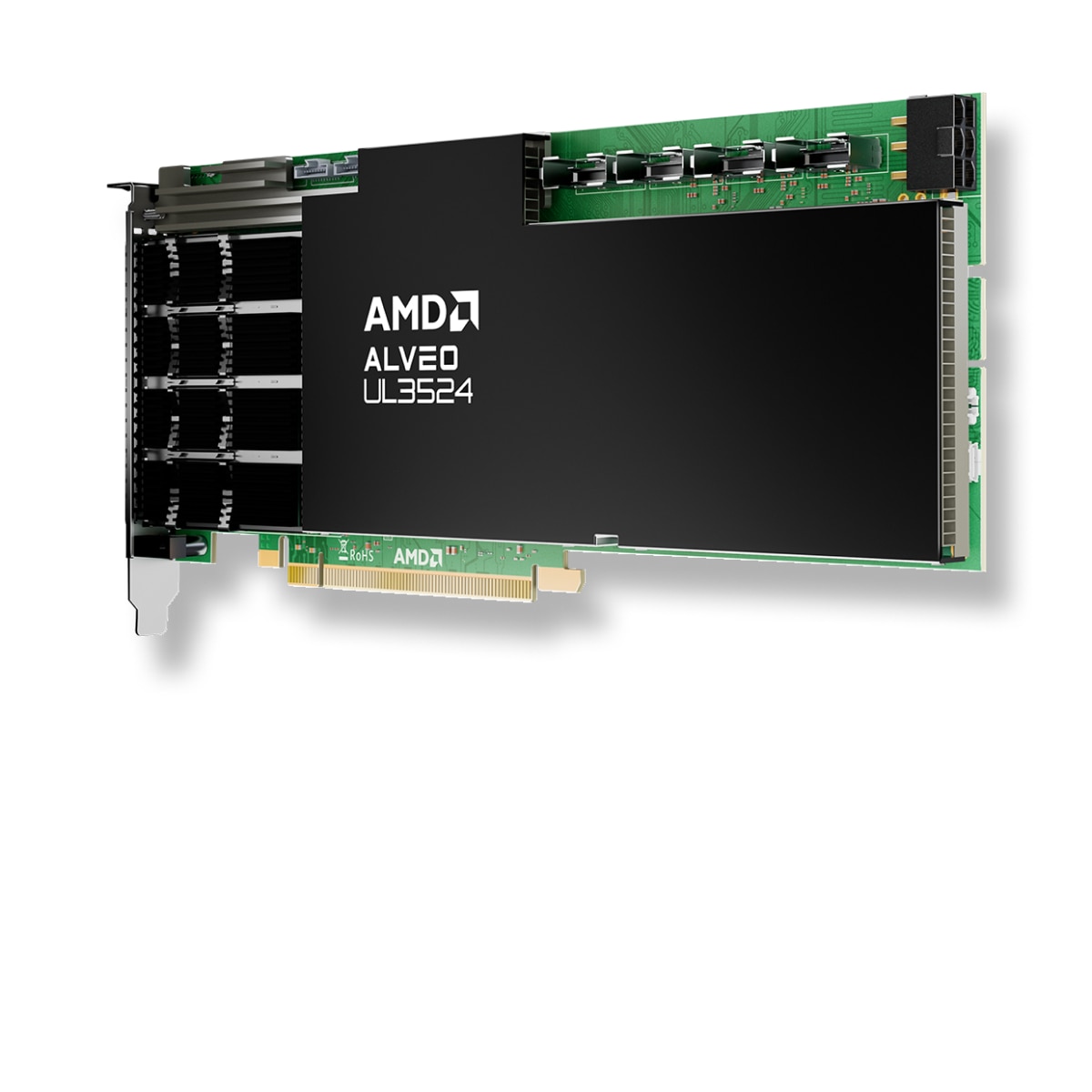

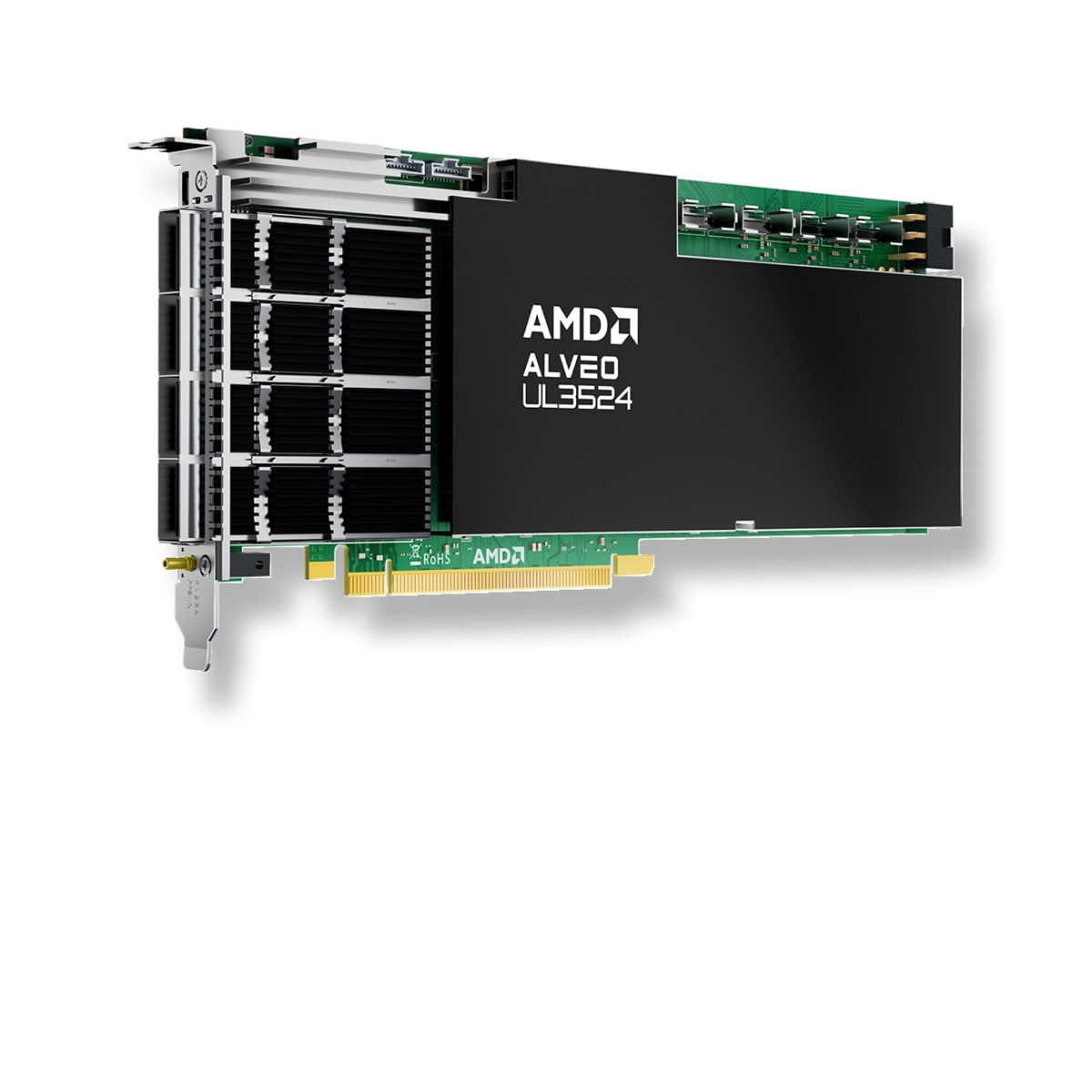

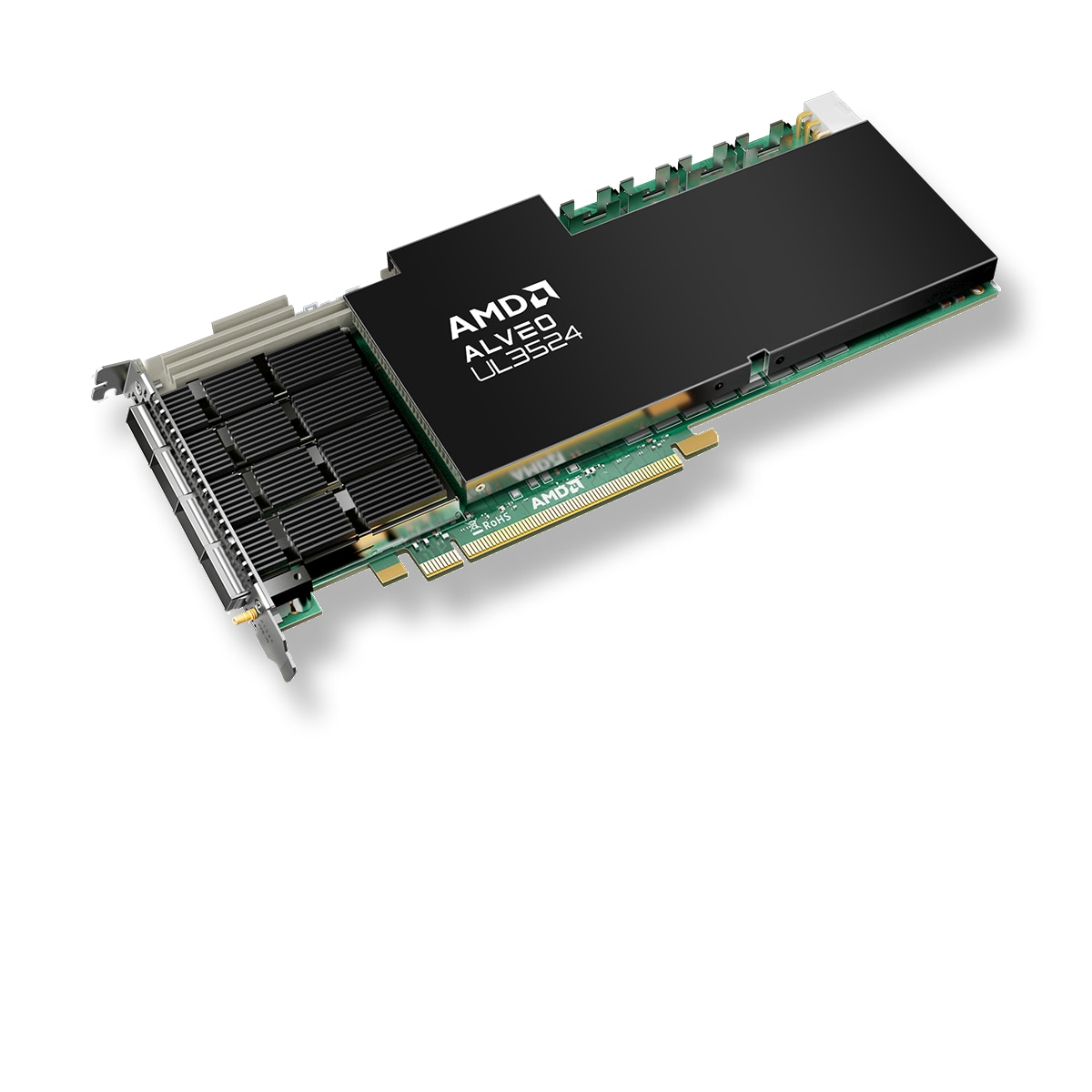

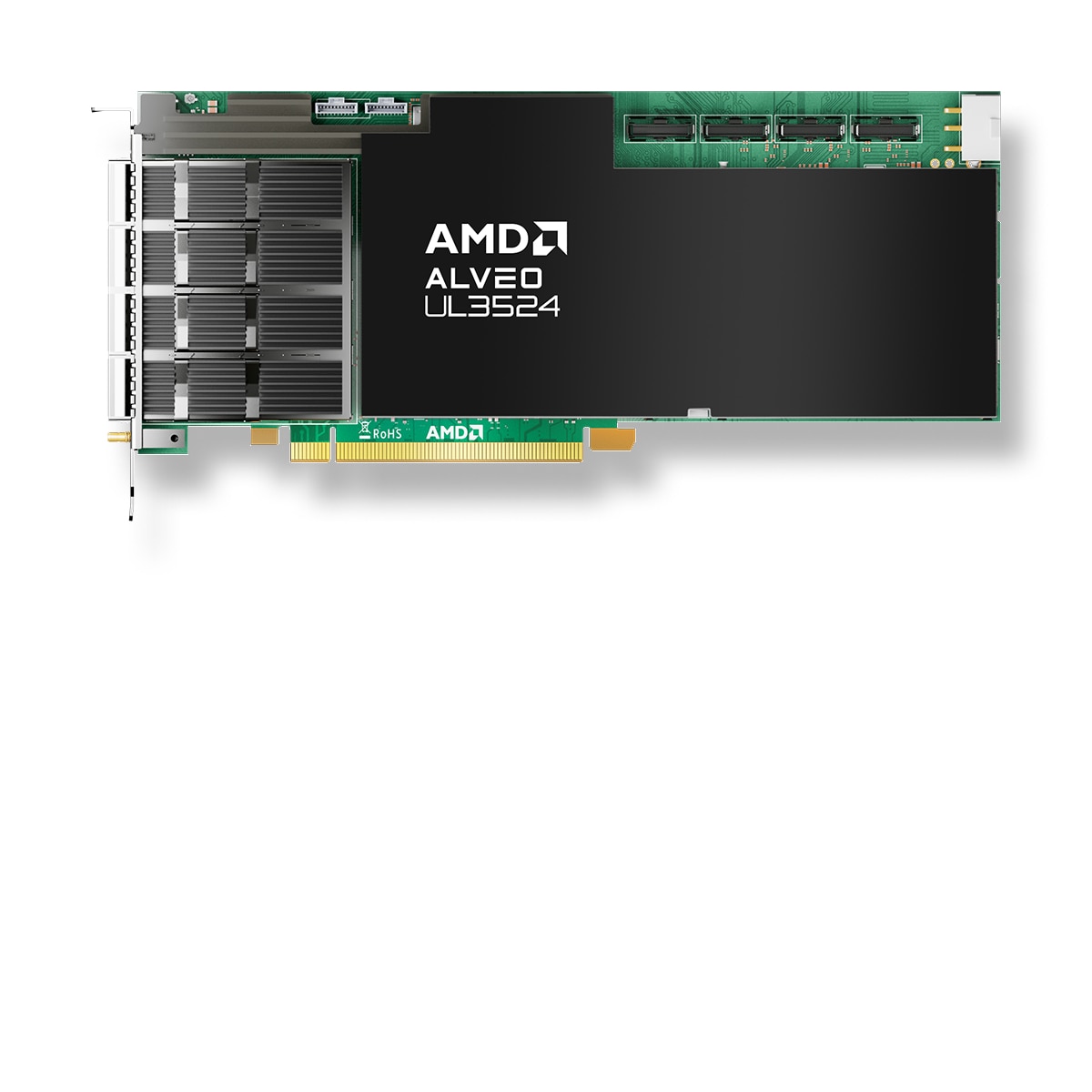

AMD Alveo™ UL3524 Accelerator Card
The Alveo™ UL3524 is powered by a new Virtex UltraScale+™ FPGA built for electronic trading. The device features a breakthrough transceiver architecture to achieve less than 3ns latency for world-class trade execution, delivering 7X greater performance vs. previous FPGA technology.
- 产品编号:
- A-UL3524-P16G-PQ-G
- 交付周期: 2-4 weeks
