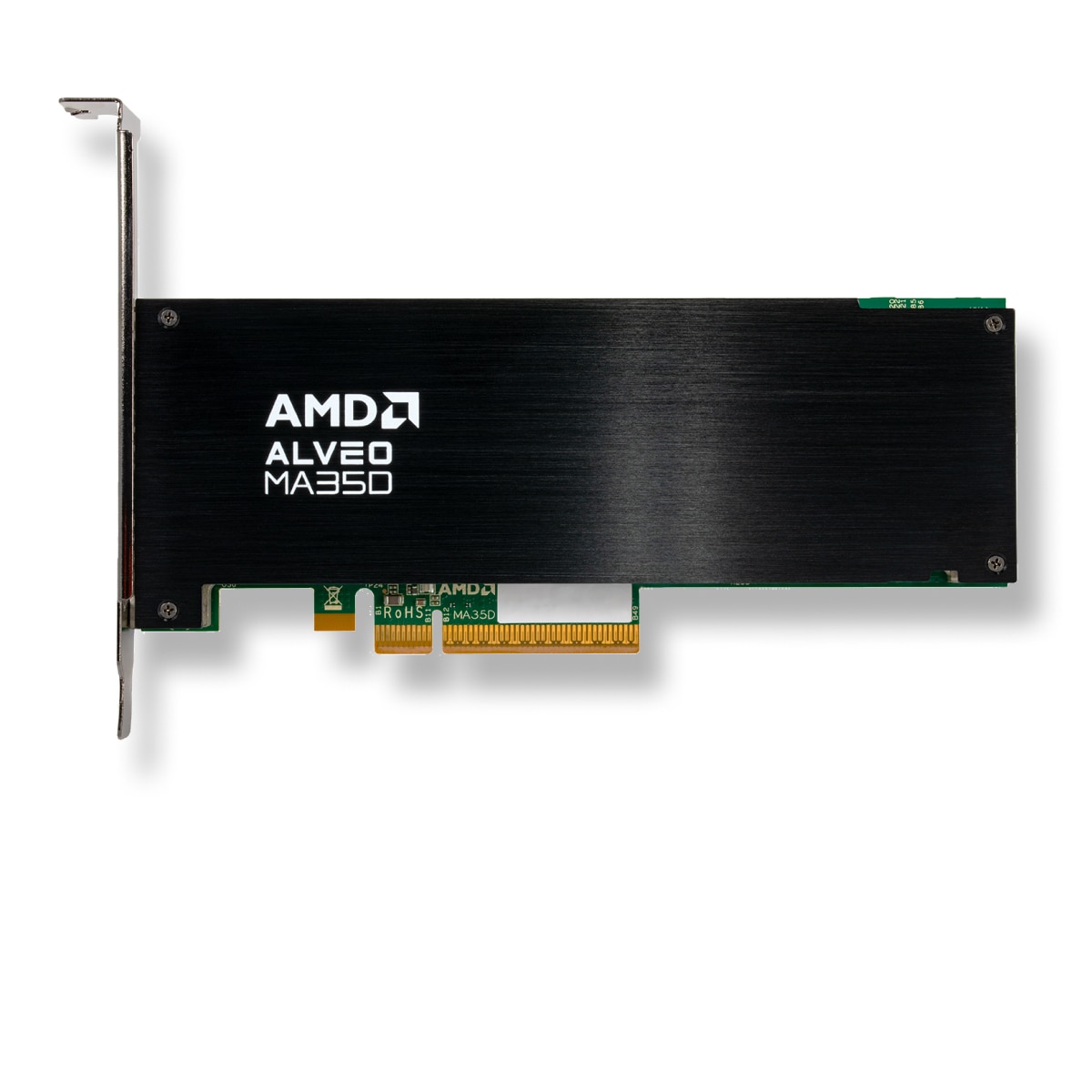

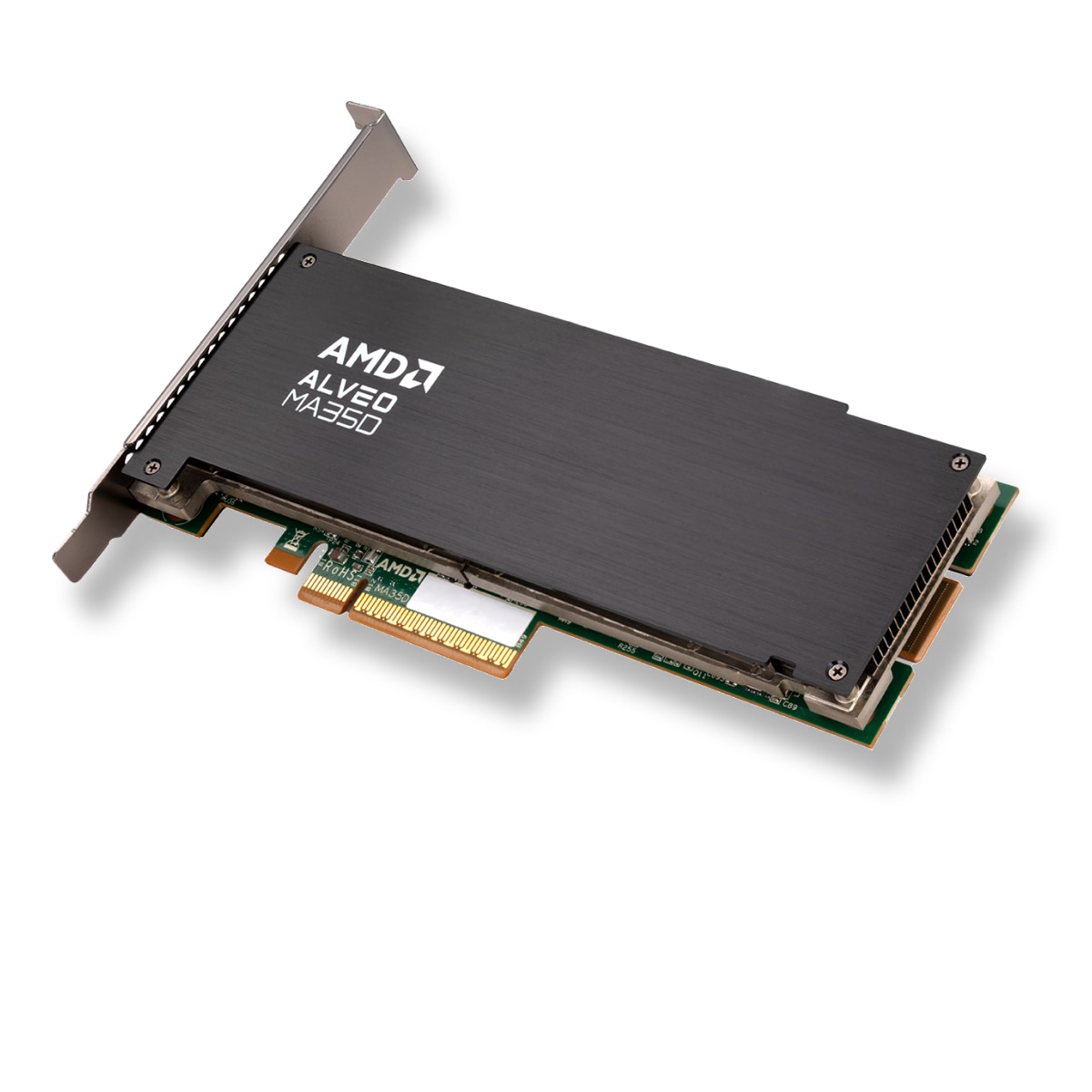

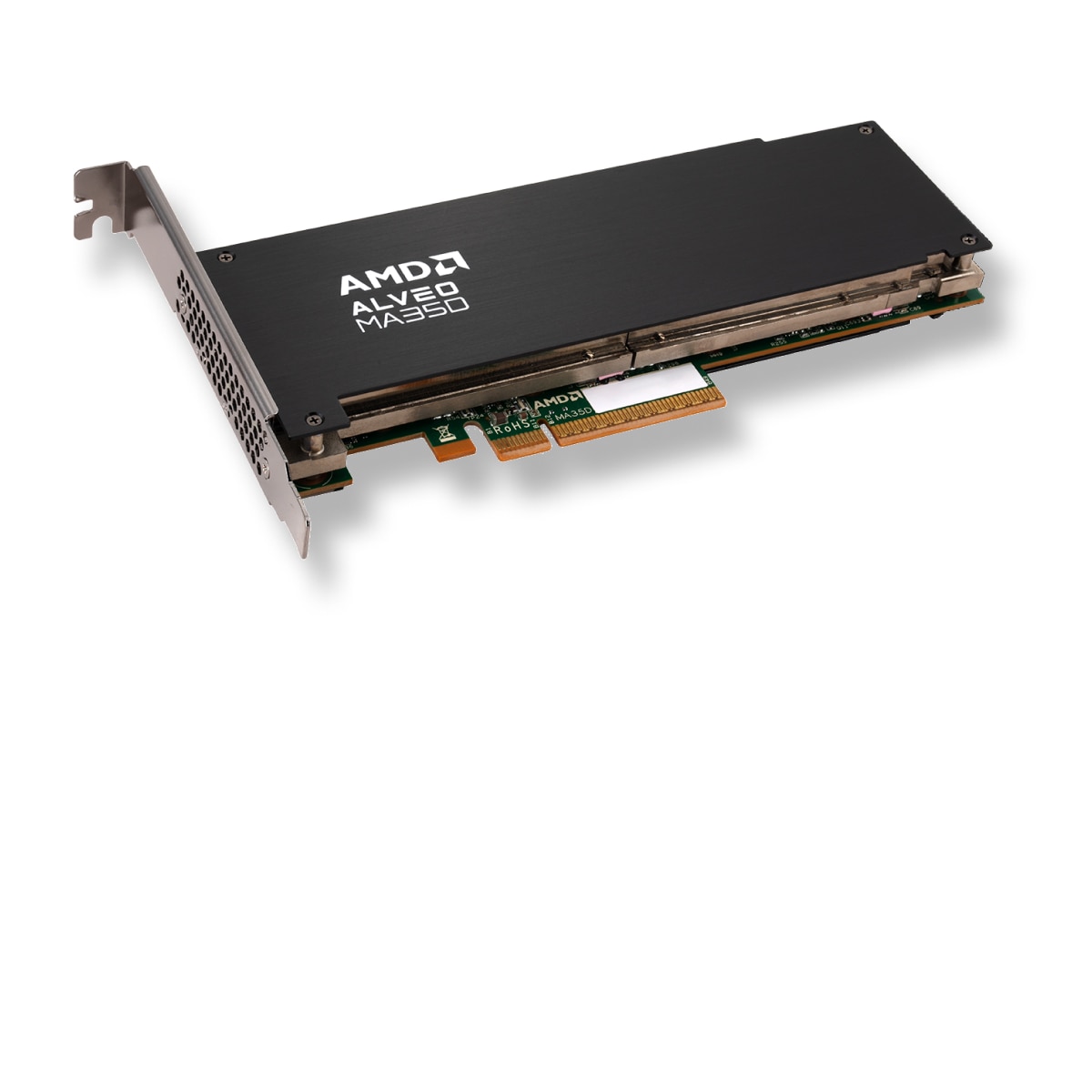

AMD Alveo™ MA35D Media Accelerator Card

The AMD Alveo™ MA35D revolutionizes high-volume streaming with ultra-low latency, optimal video quality, and support for next-gen codecs and scales live streaming cost-effectively.

  • 价格: $1,595.00
  • 产品编号:
    • A-MA35D-P16G-PQ-G
添加到购物车
Contact Us
or buy from: Authorized Distributors

Explore Partner Network

  • The Alveo MA35D media accelerator card is in volume production and available for purchase from AMD or authorized distributors.
  • Purchase up to three cards online from AMD for small deployments or evaluation. To purchase in volume, contact your local AMD sales representative or complete the product inquiry form.

Overview

Video Processing for Ultra-Low Latency Interactive Streaming

Purpose-built for real-time, high-volume streaming, the Alveo MA35D media accelerator is enabling a new era of interactive media services, including live events, e-learning, social streaming, live shopping, sports betting, cloud gaming, and more. Supporting both next-generation AV1 standard and mainstream H.264 and H.265 codecs1, the card delivers ultra-low latency at optimal video quality (VQ) for creating immersive experiences. Infrastructure operators, Content Delivery Networks (CDNs), content providers, and streaming platform vendors can leverage the Alveo MA35D media accelerator to maximize channel density, power efficiency, and bandwidth efficiency to cost-effectively scale their live streaming services.

Key Features & Benefits

Powered by a 5 nm Video Processing Unit
Based on 5 nm ASIC technology, two video processing units (VPUs) power the accelerator card, each integrating diverse IP to accelerate the entire video pipeline.

  • AV1, H.265, H.264 for up to 2X compression efficiency vs. software encoders2
  • Accelerated ABR Scaler for multiple resolutions and endpoints
  • AI Processor improves visual experience at low latency and low bitrates
  • VQ Look-Ahead Engine for optimizing VQ and compression efficiency
  • VQ QoE Engine maintains consistent QoS for end-users
  • Compositor Engine for multi-layered, immersive experiences

High-Density, Low-Latency Streaming
The Alveo MA35D media accelerator allows streaming providers to maximize the number of low-latency streams per card, per rack, and per data center–which can help reducing both CAPEX and OPEX.

The card provides:

  • High channel density at up to 32x 1080p60
  • Ultra-low latency at 8ms for 4K encode
  • 1 Watt per stream (1080p60)3 to help reduce power and cooling costs

Concurrent AV1, H.265, H.264
With two discrete transcoding devices per card, an Alveo MA35D accelerator enables multiple standards concurrently, allowing service providers to support mainstream H.264 and H.265 standards while incrementally migrating to AV1 as user adoption increases1.

AI-Enabled, Intelligent Video Pipeline
Recognizing that the industry is approaching the technology limits of compression efficiency, AI is taking a pivotal role in encoders to infuse more intelligence into the video pipeline. Each device on the Alveo™ MA35D card features an AI processor to evaluate content frame by frame, dynamically adjusting encoding parameters for optimal bitrate and visual quality– and doing so at low latency and high channel density.

  • Codec and Hardware Engines Specifications

    Encoding Formats
    • H.264 | H.265 | AV1
    • Two discrete transcoding chips per card enables multiple standards concurrently (for new and legacy endpoints)
    • Faster than Real-Time encoding (file-based use case)
    Decode Formats
    • H.264 | H.265 | AV1 | VP9
    H.264 / H.265 Performance
    • 4x 4Kp60 | 16x 1080p60 | 32x 1080p30 | 72x 720p30
    AV1 Performance
    • 4x 8Kp30 | 8x 4Kp60 | 32x 1080p60 | 64x 1080p30 | 144x 720p30
    Max Channel Density & Resolution
    • 256 maximum transcode channels
    • 7680 x 4320 maximum resolution
    8/10-bit Formats
    • YUV420 planar and semi-planar
    • RGB planar
    Comparable Presets
    • H.264: x264 medium
    • H.265: x265 medium
    • AV1: x265 slow
    Video Processing
    • ABR Scaler
    • Compositor Engine
    • Video Look-Ahead Engine
    • Video Quality (VQ) and Quality-of-Experience (QoE) Engine
    • 2D graphics overlay
    AI Processor
    • AI Processor
    • 22 TOPS per card
    • Maximizes video quality at reduced bandwidth
    • Region-of-Interest optimization (e.g., text, face), artifact reduction, and content-aware encoding

  • Board Specifications

    Form-Factor
    • HHHL, Single-slot
    Host Interface
    • PCIe® Gen4 x8; bifurcated x4x4
    • SR-IOV
    Memory
    • 16GB LPDDR5
    Typical Power
    • 35W (40W TDP), passive cooling
