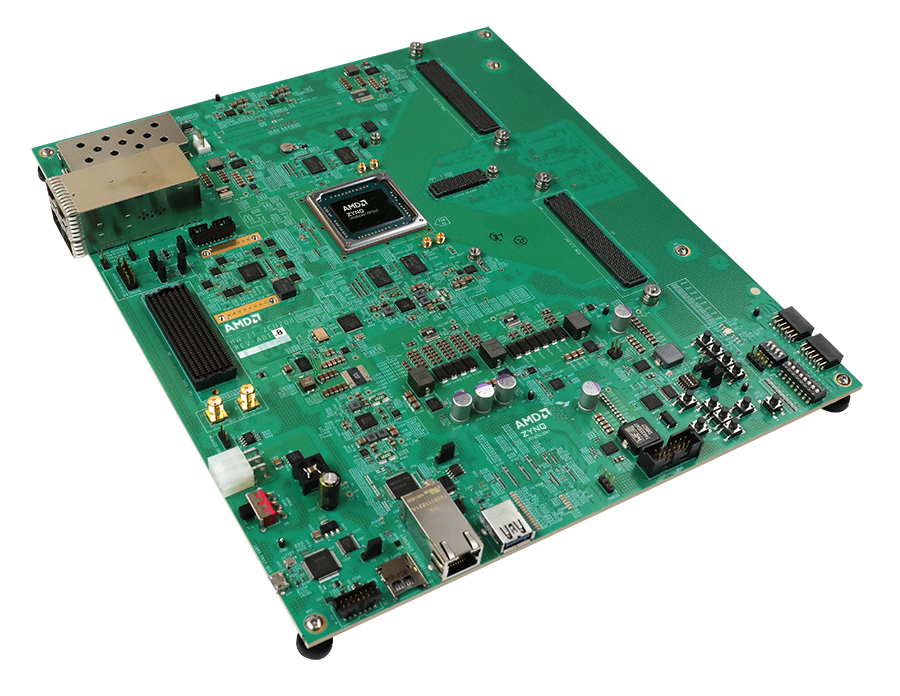

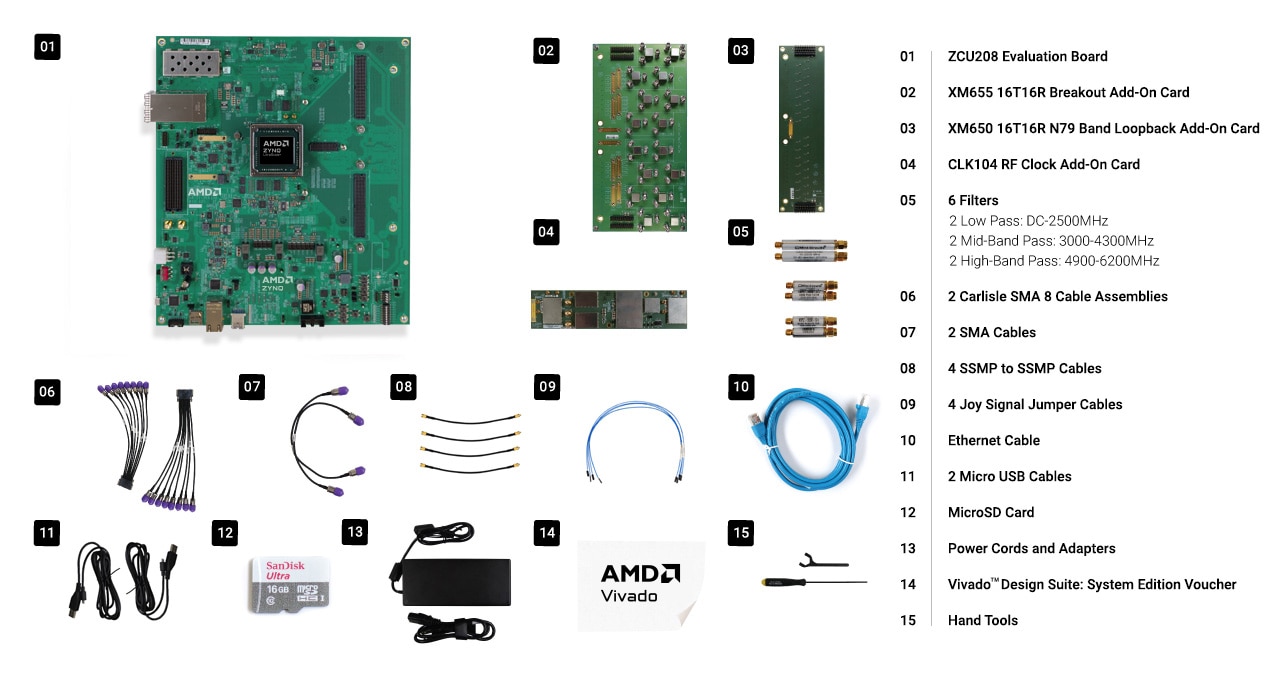

AMD Zynq™ UltraScale+™ RFSoC ZCU208 Evaluation Kit
por: AMD
The AMD Zynq™ UltraScale+™ RFSoC ZCU208 Evaluation Kit is the ideal RF test platform for both out-of-box evaluation and cutting-edge application development. This kit features a Zynq UltraScale+ RFSoC ZU48DR, which integrates eight 14-bit 5GSPS ADCs, and eight 14-bit 10GSPS* DACs, and eight soft-decision forward error correction (SD-FEC) cores designed to jumpstart RF class applications. The combination of Arm® Cortex®-A53 and Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, makes the ZCU208 evaluation kit the most comprehensive RF Analog-to-Digital signal chain prototyping platform.
- Precio: $15,995.00
- Part Number:
- EK-U1-ZCU208-V1-G
- Lead Time: 28 weeks
- Device Support: Zynq UltraScale+ RFSoC
*10GSPS is achieved using ZU48DR SCD5184 silicon
Note: Due to export compliance, Zynq UltraScale+ RFSoc kits require the purchaser to complete an End Use Statement before shipment can be released. Purchasers will be contacted with form and instructions upon order entry.
