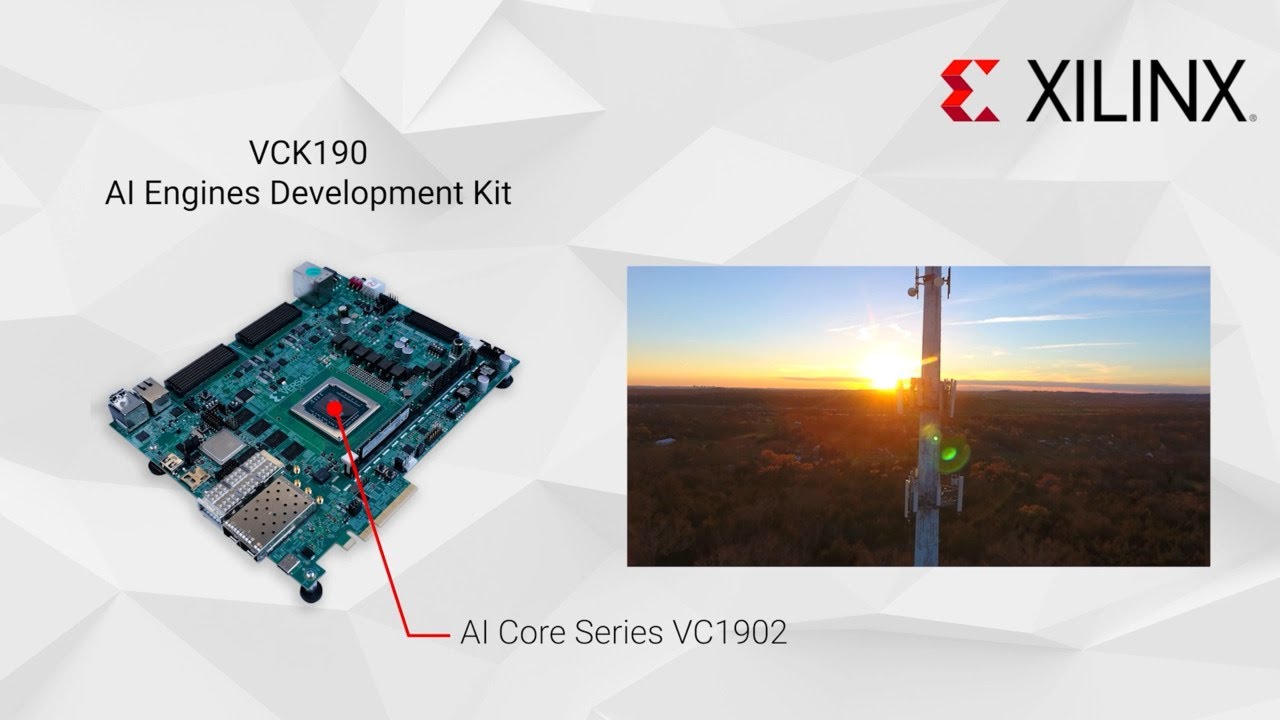

AMD Versal™ AI Core Series VCK190 Evaluation Kit

发布者: AMD

The AMD VCK190 is the first Versal™ AI Core series evaluation kit, enabling designers to develop solutions using AI and DSP engines capable of delivering over 100X greater compute performance compared to current server class CPUs. With a breadth of connectivity options and standardized development flows, the Versal AI Core series VC1902 adaptive SoC, providing the portfolio's highest AI inference and signal processing throughput for cloud, network, and edge applications.

价格: $13,195.00
产品编号:
- EK-VCK190-G
交付周期: 15 weeks
器件支持: Versal AI Core

添加到购物车

or buy from: Authorized Distributors

View Product Brief

Product Information

Features & Devices
Specifications
What's Inside

Key Features & Benefits

The VCK190 kit is an ideal platform supporting high throughput AI inference and signal processing applications from the cloud to edge, such as:

Data center compute
5G radio & beamforming (DFE)
Cable-access (Head-End)
Wireless test equipment
Automotive/ADAS prototyping
A&D radar, early warning

Versal AI Core Series Capabilities

Equipped with Versal AI Core VC1902 device
AI and DSP Engines providing 100X greater compute over today’s server-class CPUs
Pre-built partner reference designs for rapid prototyping

Breadth of Connectivity Options for Rapid Application Development

PCIe® Gen4 interface for high compute performance markets
HDMI for video processing applications
SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
DDR4 and LPDDR4 memory interfaces
FMC expansion connectors supporting a variety of optional plug-in cards including camera sensors and displays

Co-Optimized Tools and Debug Method

Vivado™ design suite, Vitis™ unified software platform, Vitis AI, AI Engine tools
SmartLynq+ module for high-speed debug, performance analysis, and event trace

Featured AMD Devices

Featuring the Versal AI Core XCVC1902-2MSEVSVA2197 Adaptive SoC

AI Engines	400
DSP Engines	1,968
System Logic Cells (K)	1,968
LUTs	899,840
Application Processing Unit	Dual-Core Arm® Cortex®-A72
Real-Time Processing Unit	Dual-Core Arm® Cortex®-R5F
Maximum I/O Pins	770
Programmable NoC Ports	28
Integrated Memory Controllers	4

Board Features

Featuring the Versal™ AI Core XCVC1902-2MSEVSVA2197 Adaptive SoC

Board Specifications	Value
Length	9.50 inches (24.13 cm) (¾ PCIe length)
Height	7.477 inches (18.992 cm)
Thickness	66.87 mil ±10% (1.698 mm ±10%)
Operating Environmental Temperature	0°C to +45°C
Storage Environmental Temperature	–25°C to +60°C

Configuration
JTAG	Yes
QSPI	Yes
MicroSD	2

Memory
DDR4 DIMM	8 GB @ 3200 Mb/s
LPDDR4 Component	8 GB (4x16 Gb) @ 3900 Mb/s
MicroSD Socket	16 GB

Control I/O
User Pushbuttons	6
DIP Switches	4
User LEDs	4
SYSMON	Yes
System Controller	Yes
PMBUS	Yes

Expansion Connectors
VITA 57.4 FMC+ (12 GTYs per connector)	2
PCIe® Gen4 x8	1

Communication & Networking
UART to USB Bridge	1
CAN-FD Header	1
RJ-45 Tri-Speed Ethernet Connectors	3
SFP28	2
QSFP28	1

Display
HDMI Video Output	1
HDMI Video Input	1

Clocking
Programmable DDR4 DIMM	1
Programmable LPDDR4 Component	2
PCIe Reference Clock	1
HDMI	1
Programmable zSFP	1
Programmable HSDP	1
Programmable 1588 eCPRI	4
Programmable System Controller	1

Power
180W (12V) Power Supply	Yes
Power-on Reset	Yes

What's Inside

Featuring the Versal™ AI Core XCVC1902-2MSEVSVA2197 Adaptive SoC. View the Kit Flyer

white pearl gradient medium color divider

Resources

VCK190 Documentation

Design Tools

Vivado™ Design Suite: The EDA tool suite to create projects for the VCK190 board. Node-locked and device-locked to the Versal™ AI Core XCVC1902 device, with one year of updates.
Vitis™ Unified Software Platform: The full suite of tools for developing embedded software, debugging Versal devices, and running targeted reference designs and example designs.
Vitis™ Model Composer: The Model-Based Design tool for the MathWorks MATLAB® and Simulink® targeting AI Engines and Programmable Logic design through automatic code generation .

PetaLinux Tools, Board Support Packages, and Prebuilt Images

To build custom Linux images with modifications, visit the PetaLinux tool page to get an installer and latest board supported packages (BSP).
To boot with Linux images without modifications, download pre-built PetaLinux images.

Get Started with VCK190

To jump-start prototyping and application development with the VCK190, visit the Wiki page.

Prep work
Board setup
Run the PetaLinux BSP pre-built image
Run the PetaLinux BSP out of the box example

Training

Support
