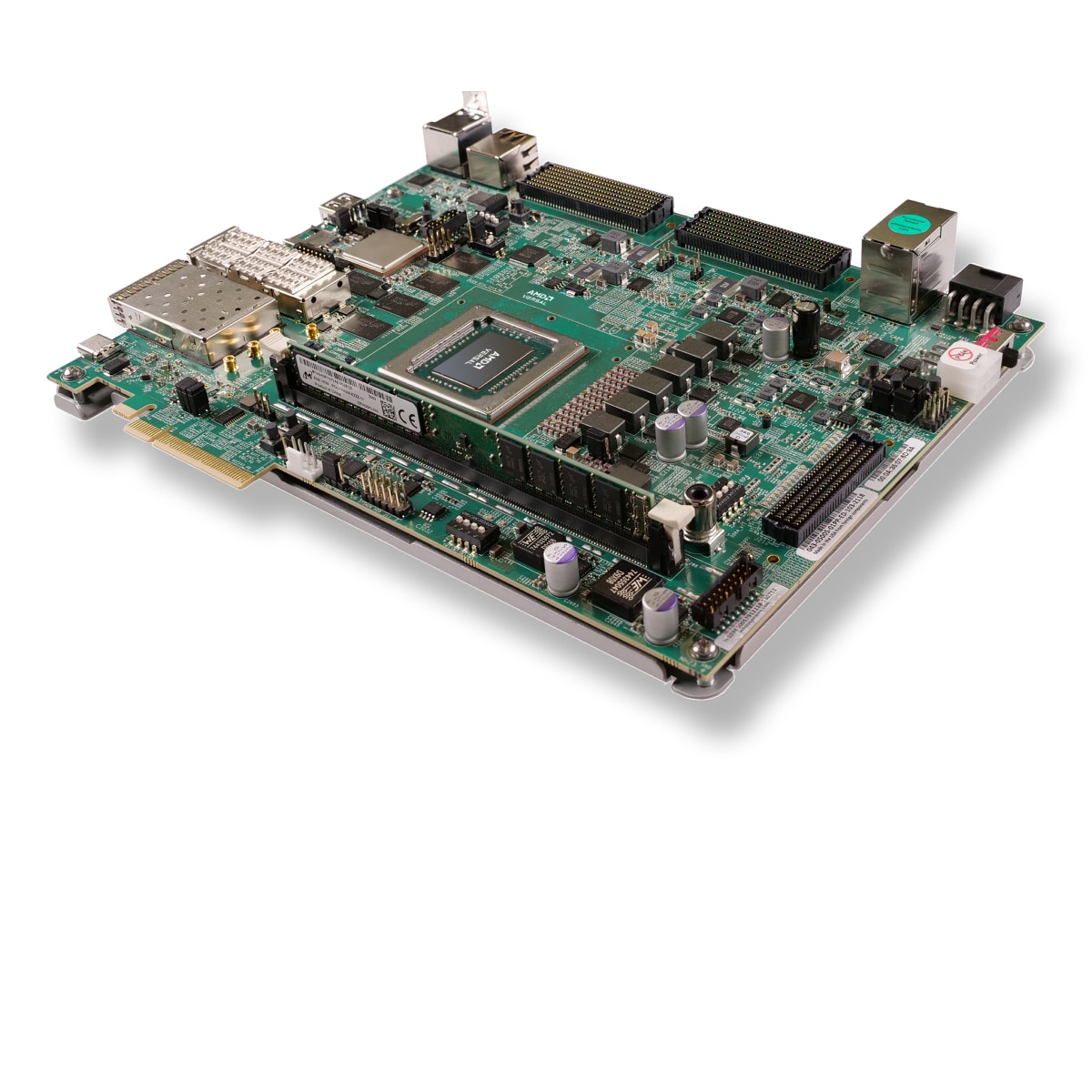

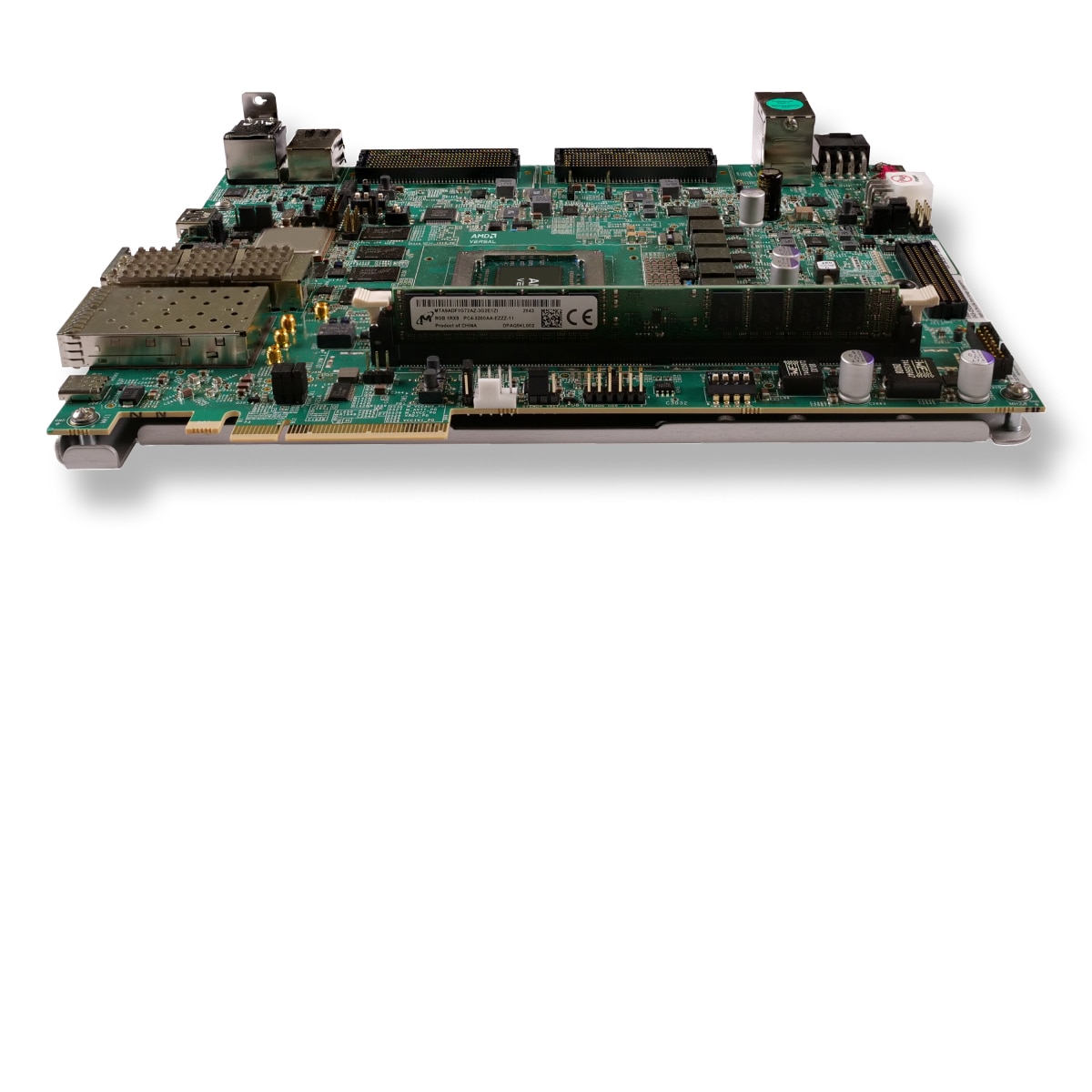

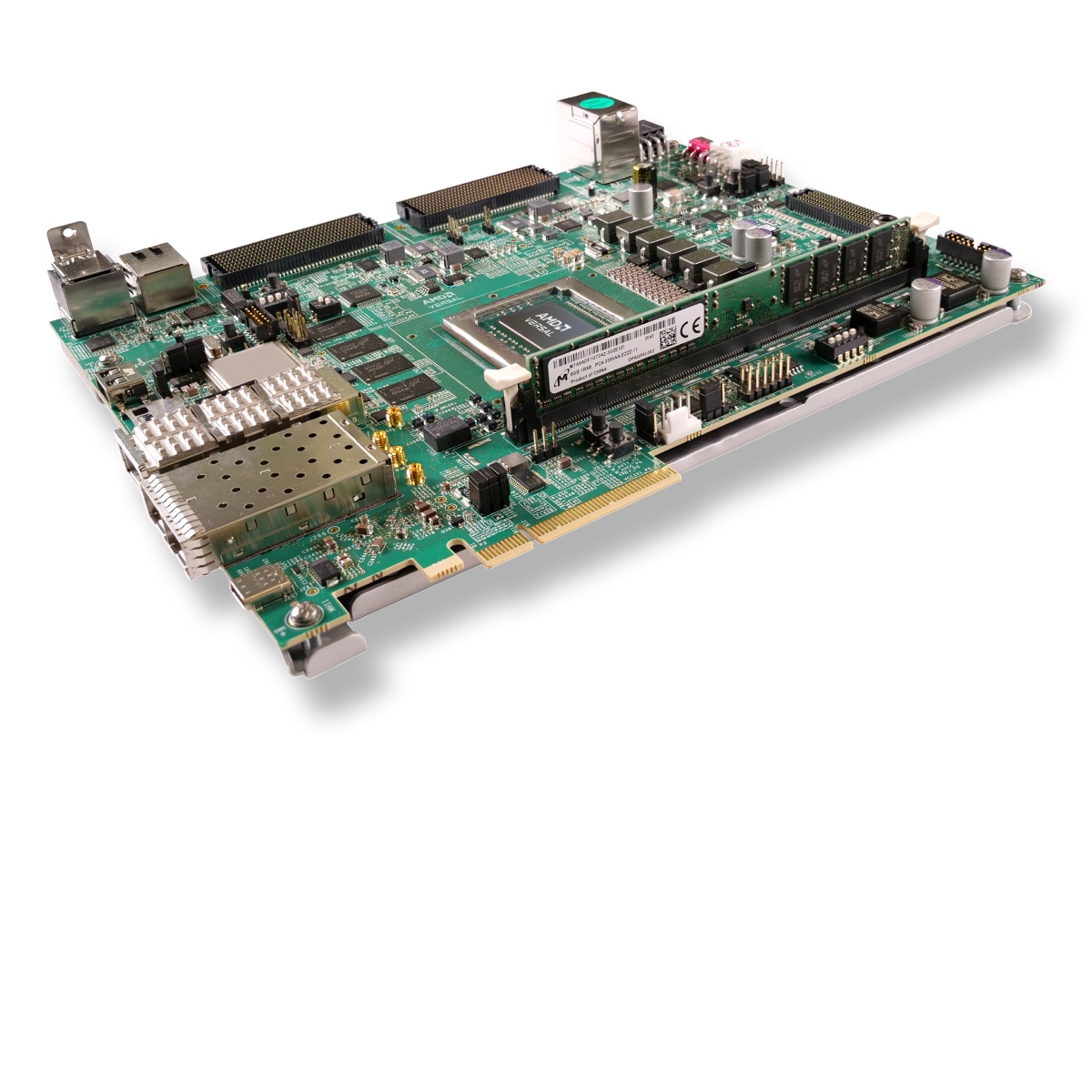

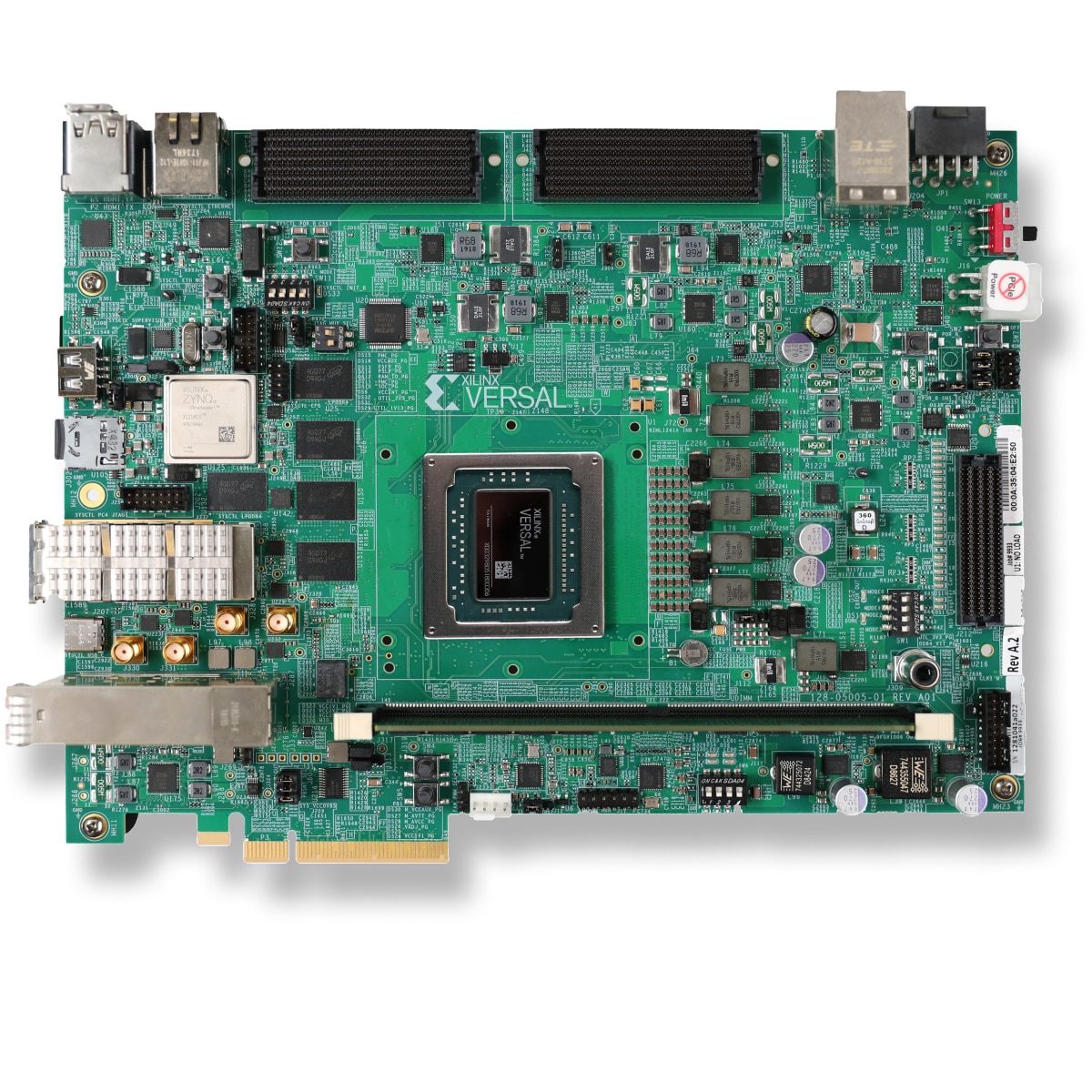

AMD Versal™ Prime Series VMK180 Evaluation Kit

发布者: AMD

The AMD Versal™ Prime series VMK180 evaluation board features the Versal Prime series VM1802 adaptive SoC, which combines a software programmable silicon infrastructure with world-class compute engines and a breadth of connectivity options to accelerate diverse workloads in a wide range of markets.

价格: $9,345.00
产品编号:
- EK-VMK180-G
交付周期: 15 weeks
器件支持: Versal Prime

添加到购物车

or buy from: Authorized Distributors

View Product Brief

Product Information

Applications, Features & Devices
Specifications
What's Inside

Target Applications

The VMK180 kit is ideal for a broad range of applications requiring performance and flexibility such as:

Data center network & storage acceleration
SmartNIC

5G xHaul
Nx100G Ethernet & OTN networking

Communications test equipment

Key Features & Benefits

Featured AMD Devices

Featuring the Versal Prime XCVM1802-2MSEVSVA2197 Adaptive SoC

DSP Engines	1,968
System Logic Cells (K)	1,968
LUTs	899,840
Application Processing Unit	Dual-Core Arm® Cortex®-A72
Real-Time Processing Unit	Dual-Core Arm Cortex-R5F
Maximum I/O Pins	770
Programmable NoC Ports	28
Integrated Memory Controllers	4

Versal Prime Series Capabilities

Equipped with Versal Prime VM1802 device
Jump start HW/SW differentiation with pre-built system infrastructure, enabled by programmable network on chip and integrated shell

Breadth of Connectivity Options for Rapid Application Development

PCIe® Gen4 interface for high compute performance markets
HDMI for video processing applications
SFP28 and QSFP28 optical interfaces and RJ-45 Ethernet port for networking
DDR4 and LPDDR4 memory interfaces
FMC expansion connectors supporting a variety of optional plug-in cards including camera sensors and displays

Co-Optimized Tools and Debug Method

Vivado™ design suite, Vitis™ unified software platform
SmartLynq+ module for high-speed debug, performance analysis, and event trace

Board Features

Featuring the Versal™ Prime XCVM1802-2MSEVSVA2197 Adaptive SoC

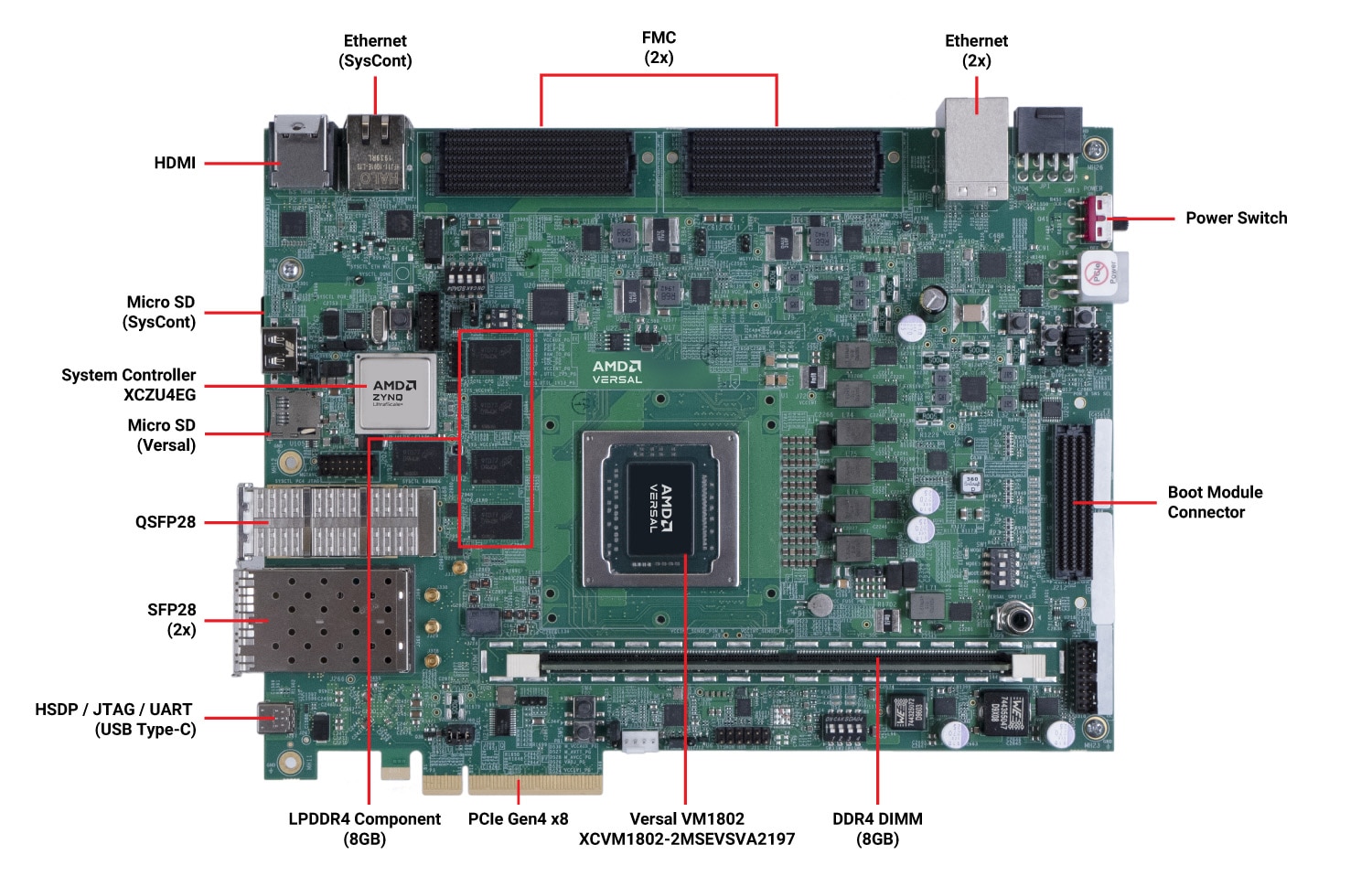

AMD Versal™ Prime Series VMK180 Evaluation Kit callout

Board Specifications	Value
Length	9.50 inches (24.13 cm) (¾ PCIe length)
Height	7.477 inches (18.992 cm)
Thickness	66.87 mil ±10% (1.698 mm ±10%)
Operating Environmental Temperature	0°C to +45°C
Storage Environmental Temperature	–25°C to +60°C

Configuration
JTAG	Yes
OSPI	Yes
MicroSD	2

Memory
DDR4 DIMM	8 GB @ 3200 Mb/s
LPDDR4 Component	8 GB (4x16 Gb) @ 3900 Mb/s
MicroSD Socket	16 GB

Control I/O
User Pushbuttons	6
DIP Switches	4
User LEDs	4
SYSMON	Yes
System Controller	Yes
PMBUS	Yes

Expansion Connectors
VITA 57.4 FMC+ (12 GTYs per connector)	2
PCIe® Gen4 x8	1

Communication & Networking
UART to USB Bridge	1
CAN-FD Header	1
RJ-45 Tri-Speed Ethernet Connectors	3
SFP28	2
QSFP28	1

Display
HDMI Video Output	1
HDMI Video Input	1

Clocking
Programmable DDR4 DIMM	1
Programmable LPDDR4 Component	2
PCIe Reference Clock	1
HDMI	1
Programmable zSFP	1
Programmable HSDP	1
Programmable 1588 eCPRI	4
Programmable System Controller	1

Power
180V (12V) Power Supply	Yes
Power-on Reset	Yes

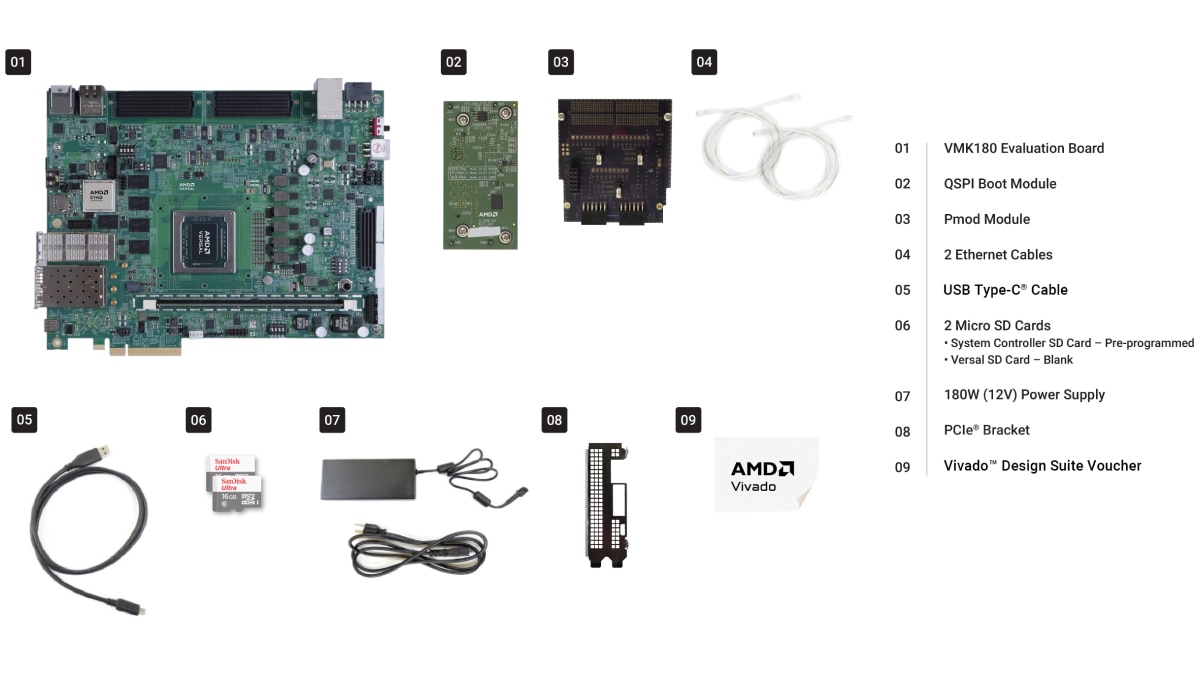

What's Inside

Featuring the Versal™ Prime XCVM1802-2MSEVSVA2197 Adaptive SoC. View the Kit Flyer

white pearl gradient medium color divider

Resources

VMK180 Documentation

Design Tools

Vivado™ Design Suite: The EDA tool suite to create projects for the VMK180 board. Node-locked and device-locked to the Versal® Prime XCVM1802 device, with one year of updates.
Vitis™ Unified Software Platform: The full suite of tools for developing embedded software, debugging Versal devices, and running targeted reference designs and example designs.

PetaLinux Tools, Board Support Packages, and Pre-Built Images

To build custom Linux images with modifications, visit the PetaLinux tool page to get an installer and latest board supported packages (BSP).
To boot with Linux images without modifications, download pre-built PetaLinux images.

Get Started with VMK180

To jump-start prototyping and application development with the VMK180, visit the Wiki page.

Prep work
Board setup
Run the PetaLinux BSP pre-built image

Training

Support

Recommended Accessories

SmartLynq+ Module
