ERNIC™

发布者: AMD

The ERNIC™ (Embedded RDMA enabled NIC) IP provides an Initiator and Target implementation of RDMA over Converged Ethernet (RoCE v2) enabled NIC functionality. This IP is specifically designed for embedded applications that require reliable transmission over Ethernet networks.

产品编号:
- EF-DI-ERNIC-SITE
设计工具支持: Vivado Software
许可: Core License Agreement
器件支持: Kintex UltraScale, Kintex UltraScale+, Versal AI Core, Versal AI Edge, Versal Premium, Versal Prime, Virtex UltraScale, Virtex UltraScale+, Zynq UltraScale+ MPSoC

评估

评估IP

获取安全站点

Overview
Documentation

Product Description

The ERNIC™ (Embedded RDMA enabled NIC) Core IP targets embedded application system which requires RDMA over Converged Ethernet (RoCE v2) for high throughput and low latency transmission over Ethernet networks. The most ideal use case is to deploy ERNIC Core IP in a FPGA to capture large number of sensors, videos, images and/or data stream, and send back to Host side for further processing.

The ERNIC Core includes a Queue Manager, Response Handler, Receiver (Rx) packet handler and Transmitter (Tx). The ERNIC Core IP provides AXI interface to work with wide variety of AMD hard and soft MAC IP.

The ERNIC Core IP allows simultaneous connections to multiple remote hosts running RoCE v2 traffic.

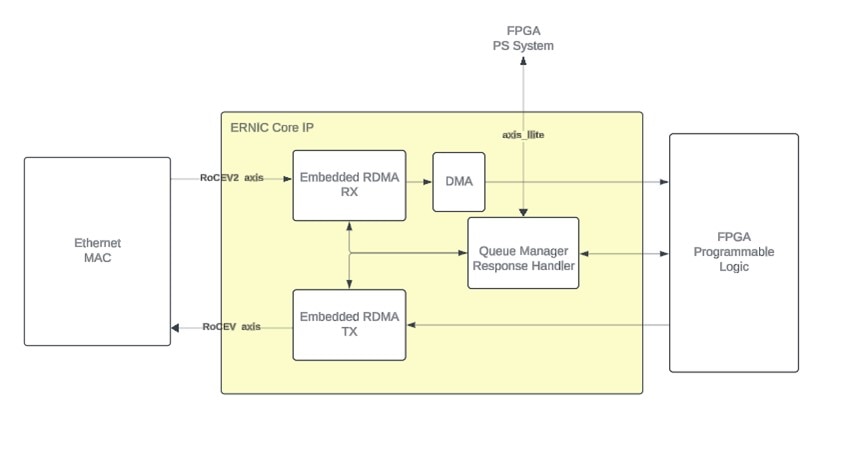

View ERNIC Core IP block diagram

An ERNIC Example Design¹ will be provided as reference to start a ERNIC Core IP design in a Versal or Ultrascale+™ FPGA. The ERNIC Example Design includes a packet filter to separate RoCE v2 vs non-RoCE V2 traffic. The example design shows a typical RDMA target side implementation where the receiver and transmitter data paths connect to FPGA’s NoC, DDR memory controller and programmable logic. An embedded Linux driver is also provided as part of example design to allow FPGA’s PS (Processing System) to initiate, configure and manage RDMA connections.

^{1 Requires an ERNIC IP license.}

Key Features and Benefits

Support for RDMA functionality
- RoCE v2 (InfiniBand Architecture Specification Volume 1, Annex A16 and Annex 17)
- 100Gbps data path
- Designed to scale up to 256 + 1 RDMA Queue Pairs
  - QP[1]: Supports MAD packets
  - QP[2] to QP [257]: Data
- Support for IPv4 and IPv6 packets
- Packet retransmission on errors
- Support for Explicit Congestion Notification (ECN)
Support for hardware based reliable connection
Supports incoming RDMA SEND (no atomic operation)
Supports incoming and outgoing RDMA READ and WRITE
Hardware handshake user interface for configuration

Applications

The ERNIC can be used in a variety of applications that run across the Ethernet network. Typical applications include:

Target Side Sensor data acquisition and transfer
Target Side Video and image capture and transfer
Remote storage nodes running RoCE v2

Resource Utilization

ERNIC Resource Utilization (Registration Required)

Documentation

Vivado IP Release Notes

This article contains a list of all 'Vivado™ IP Release Notes - All IP Change Log Information' answer records and the associated Vivado Tools release.

View Release Note

XNVMF & XRNIC Solution Setup Guide (DOCX)

Registration Required.

View Solution Guide

PB059 - Embedded RDMA Enabled NIC AMD Embedded RDMA Enabled NIC v4.2 (PB059) (v4.2)

The Embedded RDMA enabled NIC IP is an implementation of RDMA over Converged Ethernet (RoCE v2) enabled NIC functionality.

View Product Brief

PB059 - AMD Embedded RDMA Enabled NIC (PB059) (v1.0)

The Embedded RDMA enabled NIC IP is an implementation of RDMA over Converged Ethernet (RoCE v2) enabled NIC functionality.

View Product Brief

PG332 - AMD Embedded RDMA Enabled NIC LogiCORE IP Product Guide (PG332) (v4.2)

The AMD ERNIC™ (Embedded RDMA enabled NIC) IP is an implementation of RDMA over Converged Ethernet (RoCE v2) enabled NIC functionality.

View Product Guide
