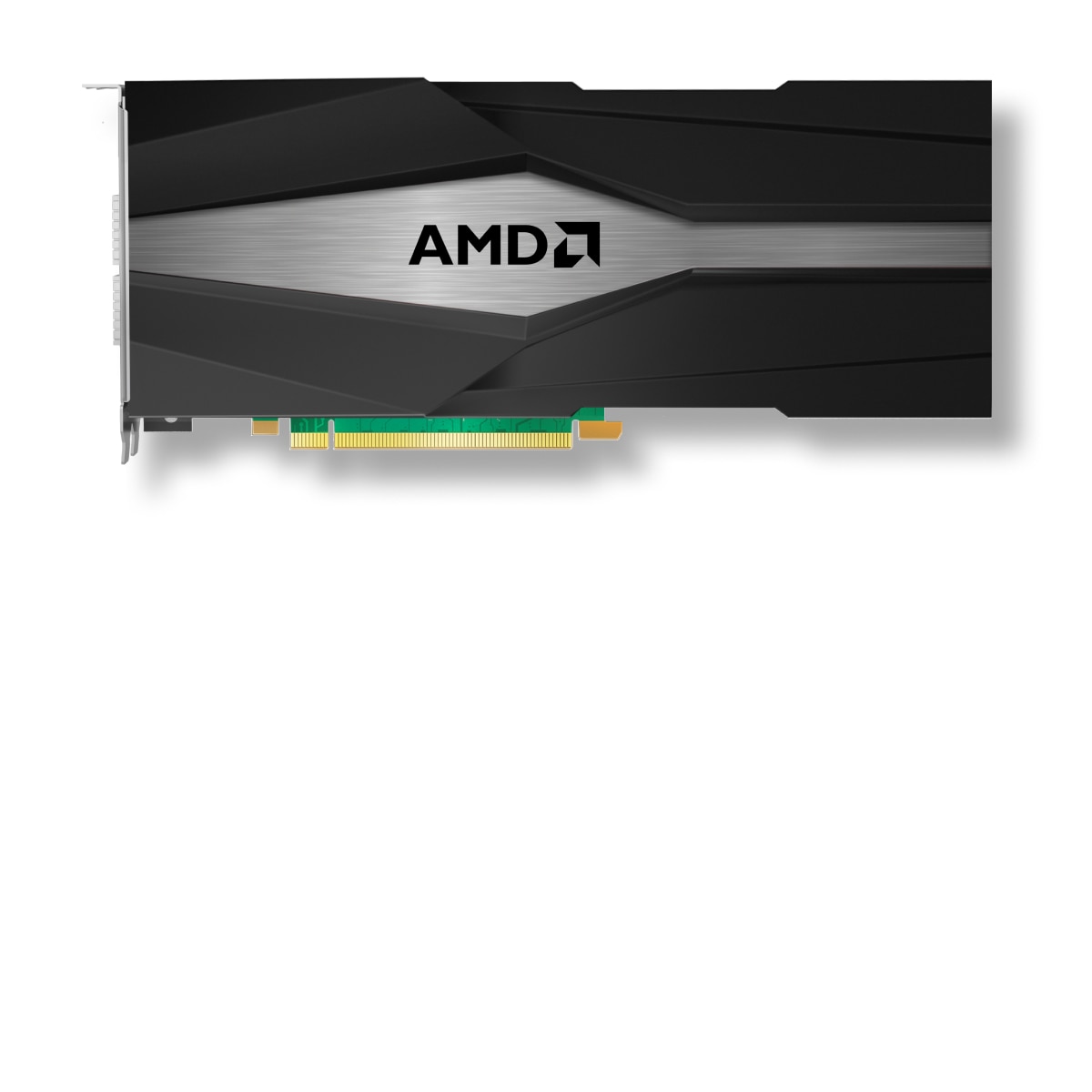

AMD VCK5000 Versal™ Development Card

par: AMD

The AMD VCK5000 Versal™ development card is built on the AMD 7nm Versal adaptive SoC architecture and is designed to optimize 5G, data center compute, AI, signal processing, radar, and many other applications. Fully supported by Vitis™, Vitis AI, and partner solutions like Mipsology Zebra® and Aupera® VMSS, the VCK5000 domain-specific architecture brings strong horsepower per watt while keeping ease-of-use in mind with C/C++, software programmability. Delivering the near 100% compute efficiency per watt in standard AI benchmarks and 2x TCO compared to the flagship nVidia GPUs, the VCK5000 development platform is ideal for CNN, RNN, and NLP acceleration for your cloud and edge applications.

Prix: $13,195.00
Part Number:
- DK-VCK5000-G-ED
Lead Time: 8 weeks
Device Support: Versal AI Core

Ajouter au panier

Note: Lead times are for AMD direct orders of 10 units or less. For lead times on larger quantities, contact customer service.

Product Information

AI Inference
AI Engine
Specifications

AI Inference Development

If you are an AI developer, bring your TensorFlow and PyTorch trained models to directly infer on Versal using Mipsology Zebra and build, configure, and deploy computer vision applications on FPGA platforms with Aupera Video Machine Learning Streaming Server solution.

Key Features

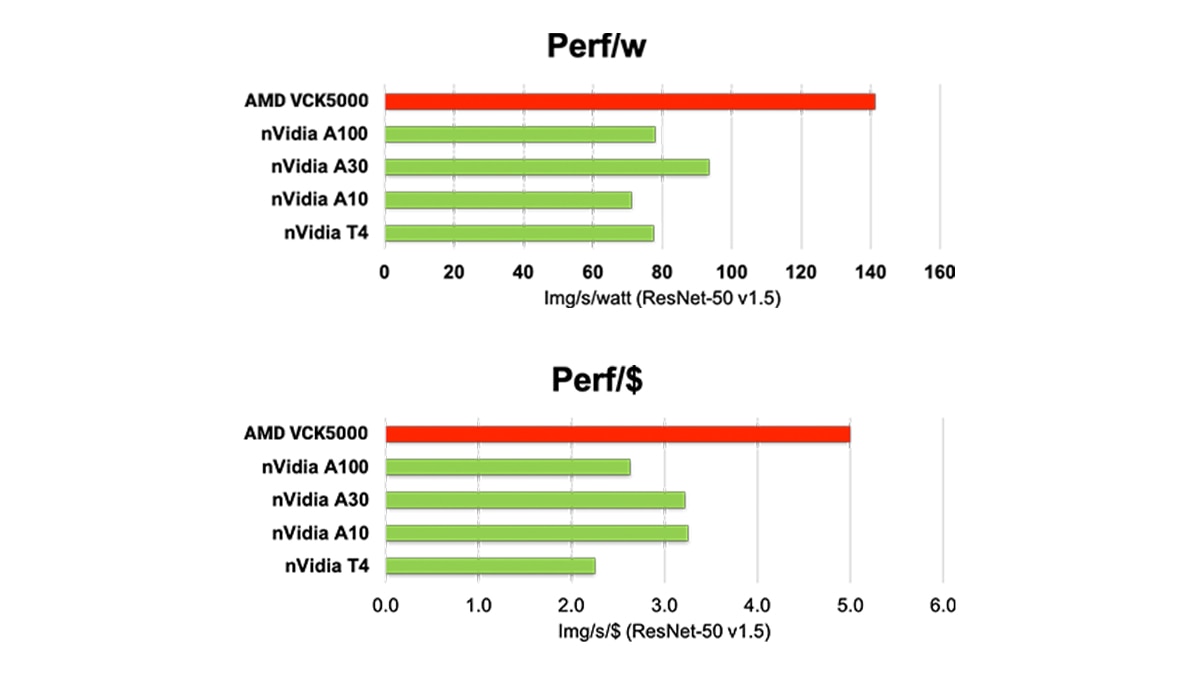

2x TCO Reduction vs Mainstream nVidia GPUs

2x perf/w and perf/$ compared to Nvidia Ampere with standard MLPerf Models
Achieves 90% compute efficiency
Consume less than 100W at card level

Zoom sur l'image

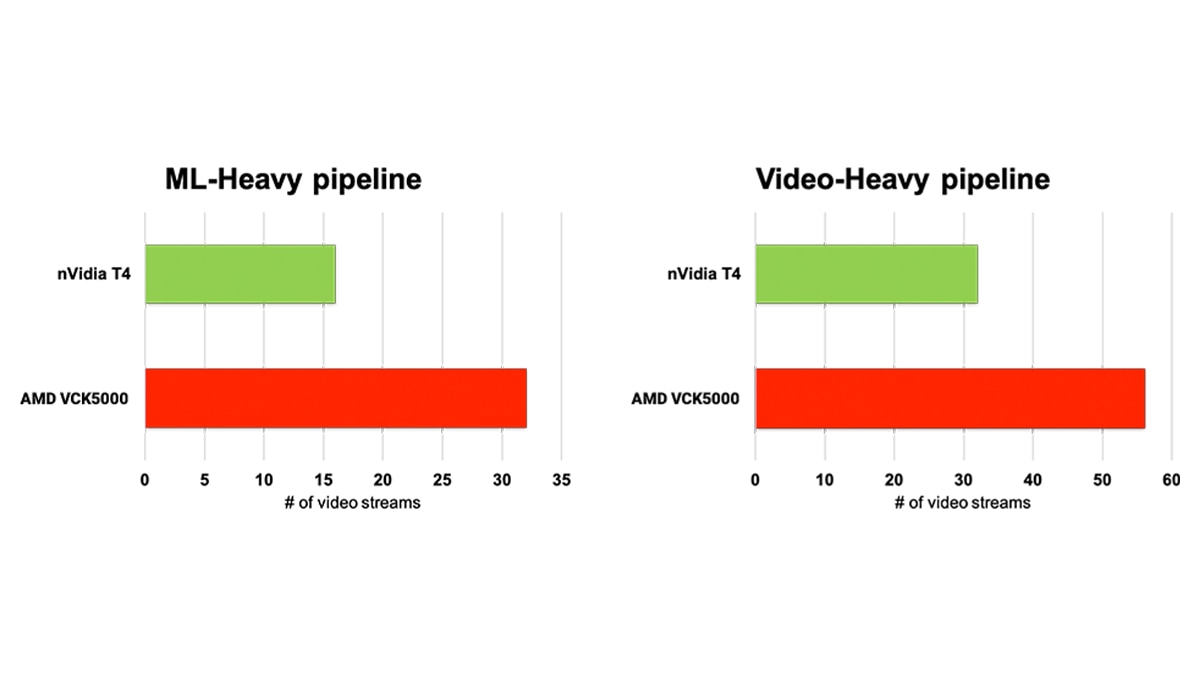

2x End-to-End Video Analytics Throughput vs nVidia GPUs

Full pipeline from H.264 decode to computer vision to up to 10 AI models
Video decode and CV run on x86 CPU or discrete U30 Alveo card
Plug-in based pipeline composition from FFmpeg / Gstreamer

_{ML Heavy: H.264 Decode + Yolov3 + 3x ResNet-18}
_{Video Heavy: H.264 Decode + tinyYolov3 + 3x ResNet-50}

Zoom sur l'image

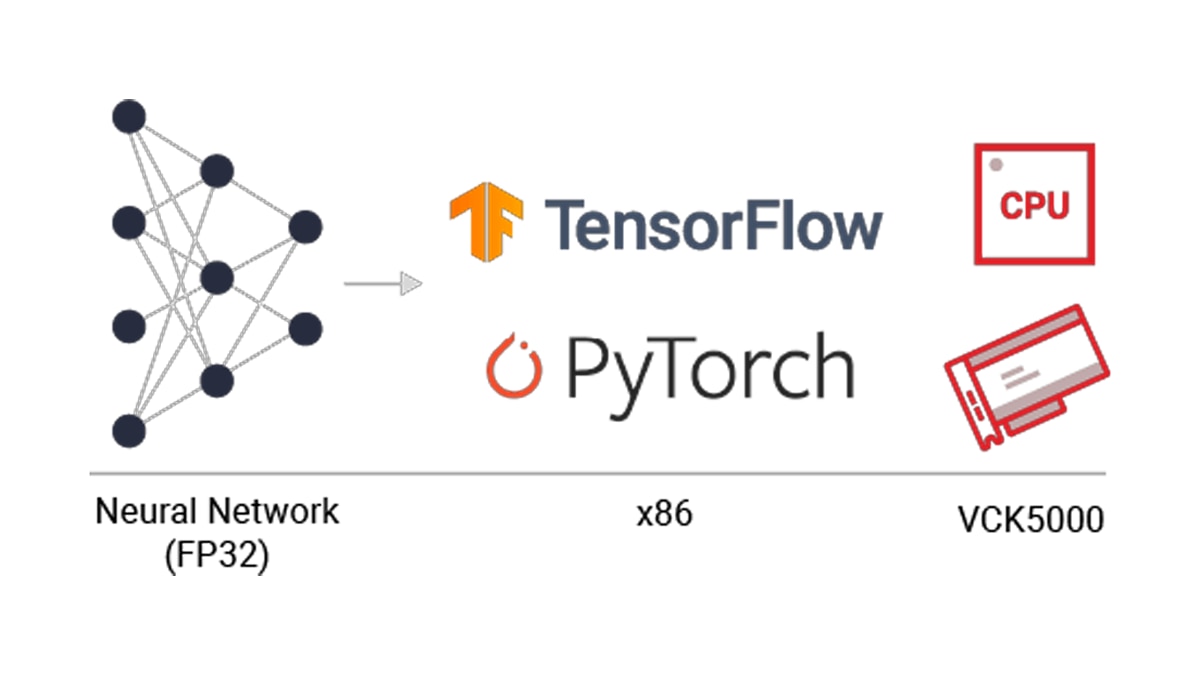

Easy to Use with Familiar Frameworks

Easy-to-use software flow for any CPU & GPU users, no hardware programming required
Run inference from Tensorflow framework directly on board
State-of-the-art model supported with mainstream frameworks PyTorch, TensorFlow, TensoFlow 2 and Caffe

Zoom sur l'image

Partner Solutions

Mipsology Zebra Software

Zebra combines high performance with unprecedented ease of use and is AMD's preferred AI accelerator for computing neural networks for image-based AI applications.

Zebra seamlessly replaces GPU/CPU to compute any image based neural network faster and with lower power consumption. And with Zebra, there is no need to retrain or make any changes to your network or application. Zebra deploys with a simple Linnux command, so you don’t need FPGA knowledge to use Zebra.

Get 5 free demo hours of Zebra in the VMAccel® cloud

Buy

Download Solution Brief

Contact Mipsology

Aupera Video Machine Learning Streaming Server Solution

Aupera VMSS is a software framework for Video AI inferencing applications. VMSS2.0 allows users to rapidly build, configure, and deploy Computer Vision pipelines using a graphical user interface (GUI); with no coding. Custom pipelines can be easily built using Aupera’s node toolkit, decoding, pre-processing, post-processing, etc.; or by creating custom nodes which can be uploaded, built, tested, and used all from the GUI.

Aupera’s commercial video AI applications can also be configured, launched, and visualized through this framework. Users have a choice of checking the results of their custom pipeline through video overlays or by sending text output.

Get 5 free demo hours of VMSS 2.0 in the VMAccel® cloud

Buy

Download Solution Brief

Download User Guide

AI Engine Development

If you are looking to implement algorithm acceleration with AI engine and programmable logic, we provide AI engine C/C++ high-level abstraction APIs and Vitis Accelerated Libraries. The Vitis end-to-end flow is developed using C/C++ to run on X86 or embedded processors and manage runtime interactions with the accelerator with XRT. The hardware component, or kernel, can be developed using C/C++, or RTL target on PL or AI Engines.

Key Features

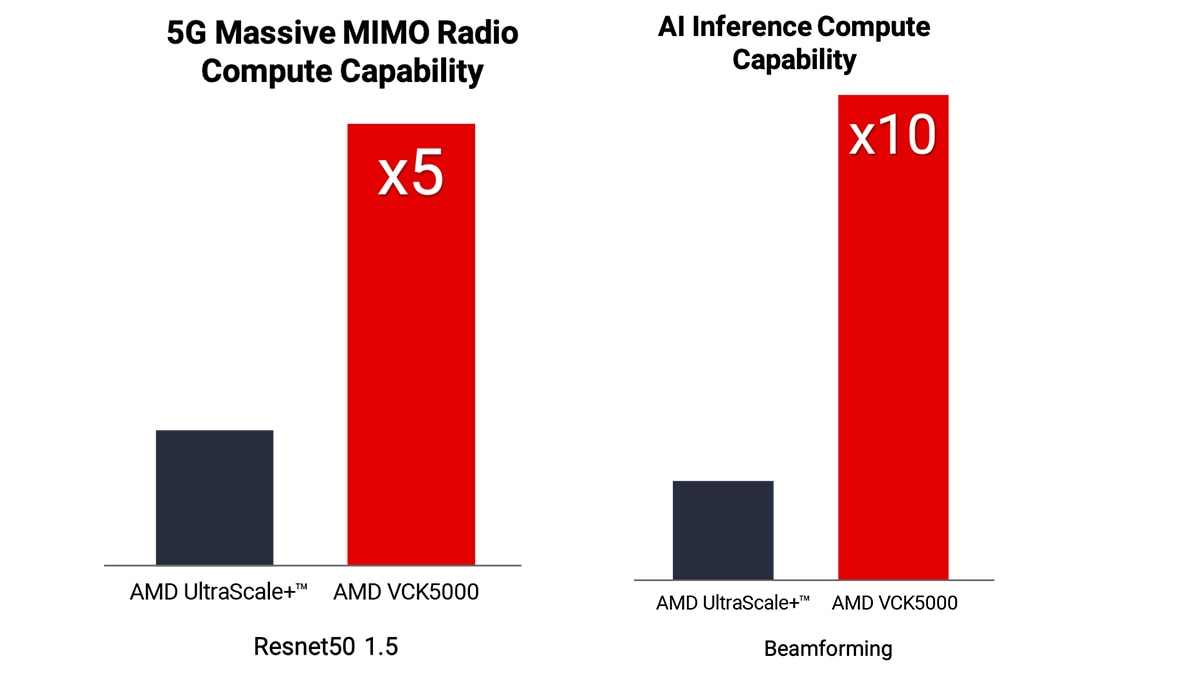

Power and Performance

Up to 10x performance improvements compared to previous generation AMD UltraScale+™ with less power in diverse applications
Industry-leading compute power: up 145 TOPS (int8); 37 TOPS (int16); 12T FLOPs (fp32)

Zoom sur l'image

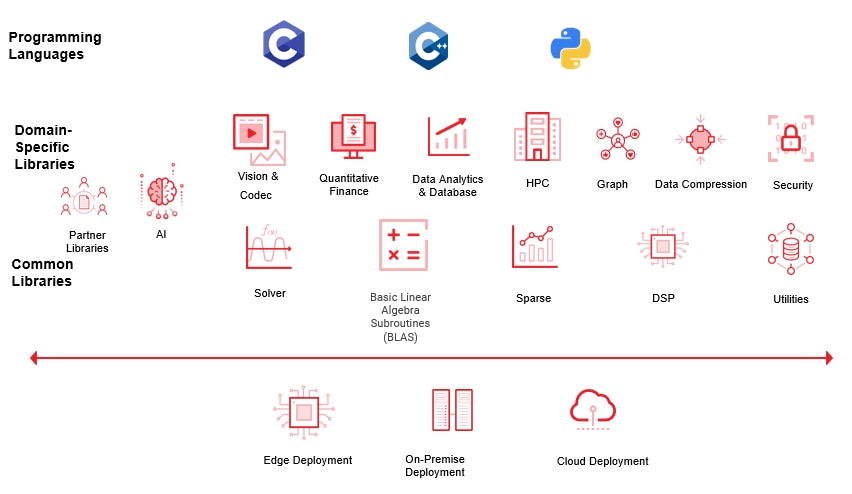

Software Familiarity

A familiar software development flow with Vitis unified software platform
Accelerate your applications faster with AI engine C/C++ high-level abstraction APIs and Vitis Accelerated Libraries

Zoom sur l'image

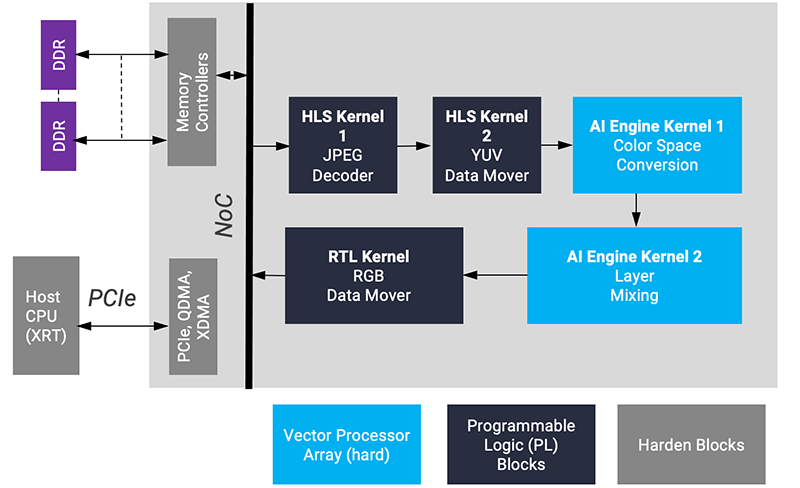

Mixed Kernel Development

Customize your own data pipeline with mixed kernels
Develop AIE kernels in C/C++, PL kernels in RTL or HLS, and let Vitis stitch together the full system

Zoom sur l'image

Get Started with AI Engine Development

Step 1: Purchase

Purchase VCK5000 production silicon-based card

Buy

Step 2: Access Secure Site

Request access to the VCK5000 Versal Development Card Secure Site

Step 3: Get Started

Follow the getting started steps and installation guide in the VCK5000 Versal Development Card Secure Site

Board Specifications

Board Specifications	Value
Height	12.225 inch (31.05 cm)
Width	10.675 inch (27.11 cm)
Thickness (+/-5%)	0.119 inch (0.302 cm)
Operating Environmental Temperature	0◦C to +45◦C
Storage Environmental Temperature	-25◦C to +60◦C

white pearl gradient medium color divider

Resources

VCK5000 Documentation
