    U258

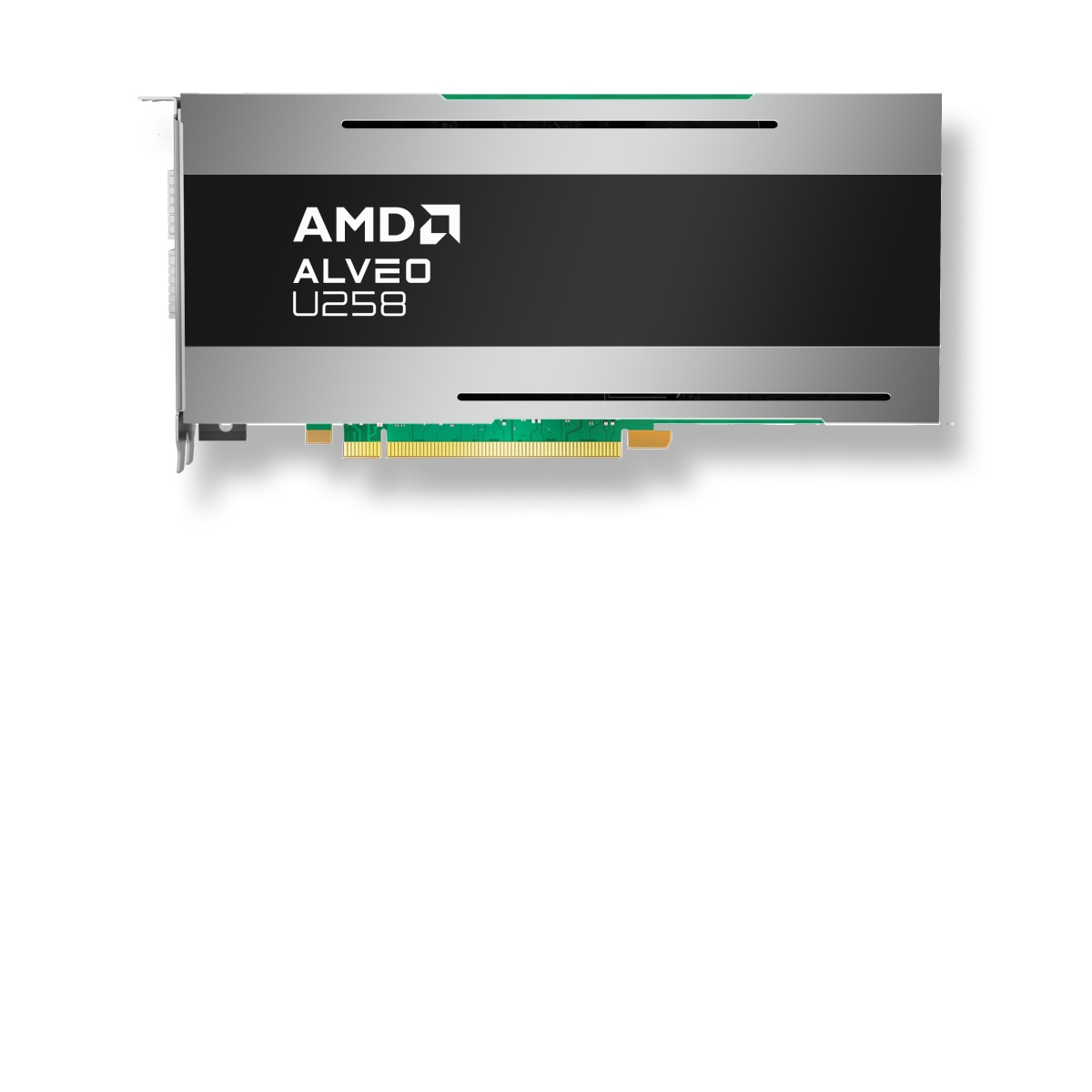

AMD Alveo™ U258 Data Center Accelerator Card

The AMD Alveo™ U258 Data Center accelerator cards are designed to meet the constantly changing needs of the modern Data Center.

Explore Partner Network

Overview

The AMD Alveo™ Data Center accelerator cards are built on the AMD 16nm UltraScale™ architecture.  Alveo U258 offers up to 3,780K system logic cells, 455Mbit embedded memory, 4x QSFP-DD network ports, 4x DDR4 DIMM support, and 2x slim-SAS connectors providing compute logic capacity, flexible connectivity, and high-performing adaptable acceleration for FPGA-as-a-Service (FAAS) applications within Data Centers.

Alveo U258 accelerator cards are adaptable to changing acceleration requirements and algorithm standards, capable of accelerating any workload without changing hardware, and reduce overall cost of ownership. Alveo U258 Data Center Accelerator cards can be volume deployed in cloud based data centers offering FaaS services for development and deployment to accelerate workloads.

Key Features & Benefits

Fast - Highest Performance
Large logic capacity and bandwidth for high performing FaaS workloads. Flexible interface for networking extensions.

Adaptable – Accelerate Any Workload
Accelerates compute, network, storage workloads.  Maximized application performance as workloads  and algorithms evolve through reconfigurable fabric - unlike fixed-architecture alternatives.

Accessible - Cloud ↔ On-Premises Mobility
Accessible and scalable for FaaS development and deployment cross enterprise cloud and public cloud.

  • Accessories

    Optional Accessories

    Alveo optional accessories extend the capabilities and access to Alveo data center acceleration cards. Accessories include power adapter cables and USB cables.

  • Board Specifications

    Compute Resources

    3,780K System Logic Cells

    PCI Express

    Gen3 x16

    Network Interfaces

    4xQSFP-DD

    Slim-SAS

    Two 8x Slim-SAS 74-pin

    Tools Support

    Vivado™ Design Suite

  • Dimensions

    Height

    Full

    Length

    3/4

    Width

    Double Slot

  • Memory

    Internal SRAM Capacity

    455 MB

    DDR4 Support

    4xRDIMM (x72) sockets*

    *Supports DDR4 up to 2400 Mb/s. Contact AMD about RDIMM size/speed configurations

  • Power and Thermal

    Maximum Total Power

    300W

    Thermal Cooling

    Passive
