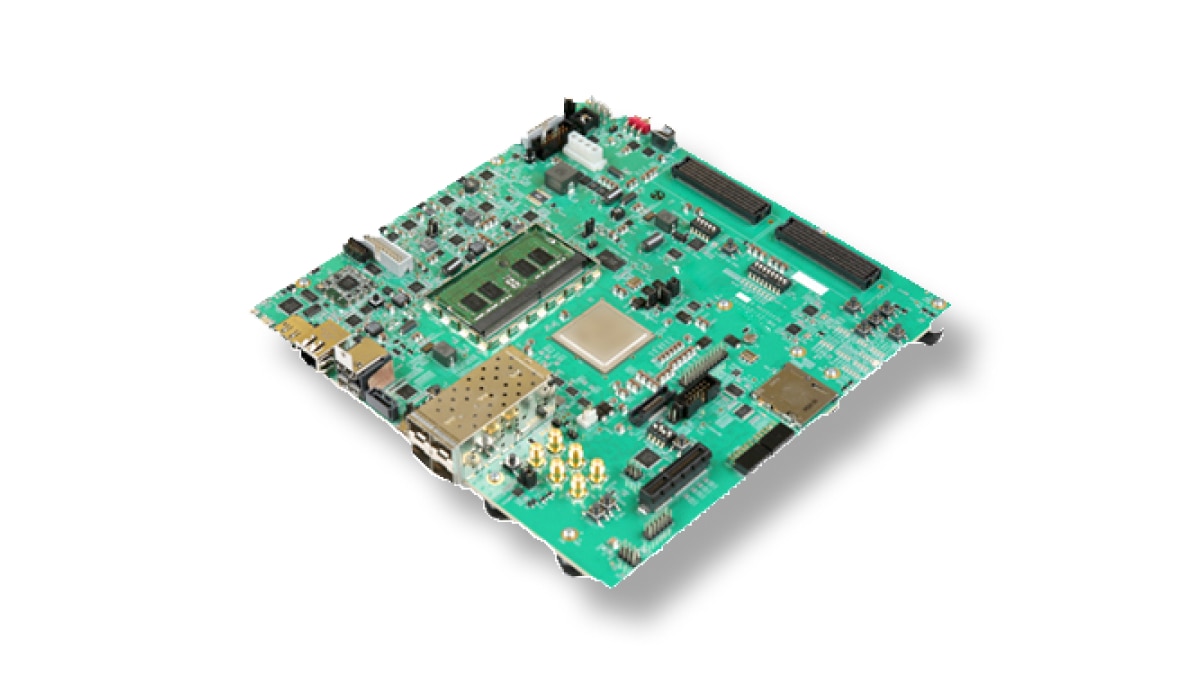

AMD Zynq UltraScale+™ MPSoC ZCU102 Evaluation Kit

von: AMD

The ZCU102 Evaluation Kit enables designers to jumpstart designs for automotive, industrial, video, and communications applications. This kit features an AMD Zynq™ UltraScale+™ MPSoC with a quad-core Arm® Cortex®-A53, dual-core Cortex-R5F real-time processors, and a Mali™-400 MP2 graphics processing unit based on 16nm FinFET+ programmable logic fabric by AMD. The ZCU102 supports all major peripherals and interfaces, enabling development for a wide range of applications.

Preis: $3,234.00
Part Number:
- EK-U1-ZCU102-G
Lead Time: 6 weeks
Device Support: Zynq UltraScale+ MPSoC

In den Warenkorb

or buy from: Authorized Distributors

Product Information

Features & Devices
Specifications
What's Inside

Key Features & Benefits

Optimized for quick application prototyping with Zynq UltraScale+ MPSoC
DDR4 SODIMM – 4GB 64-bit w/ ECC attached to processing system (PS)
DDR4 Component – 512MB 16-bit attached to programmable logic (PL)
PCIe® Root Port Gen2 x4, USB3, Display Port, and SATA
4x SFP+ interfaces for Ethernet
2x FPGA Mezzanine Card (FMC) interfaces for I/O expansion, including 16 16.3Gb/s GTH transceivers and 64 user-defined differential I/O signals

Featured AMD Devices

Featuring the Zynq UltraScale+ XCZU9EG-2FFVB1156 MPSoC

System Logic Cells (K)	600
DSP Slices	2,520
Memory (Mb)	32.1
I/0 Pins	328

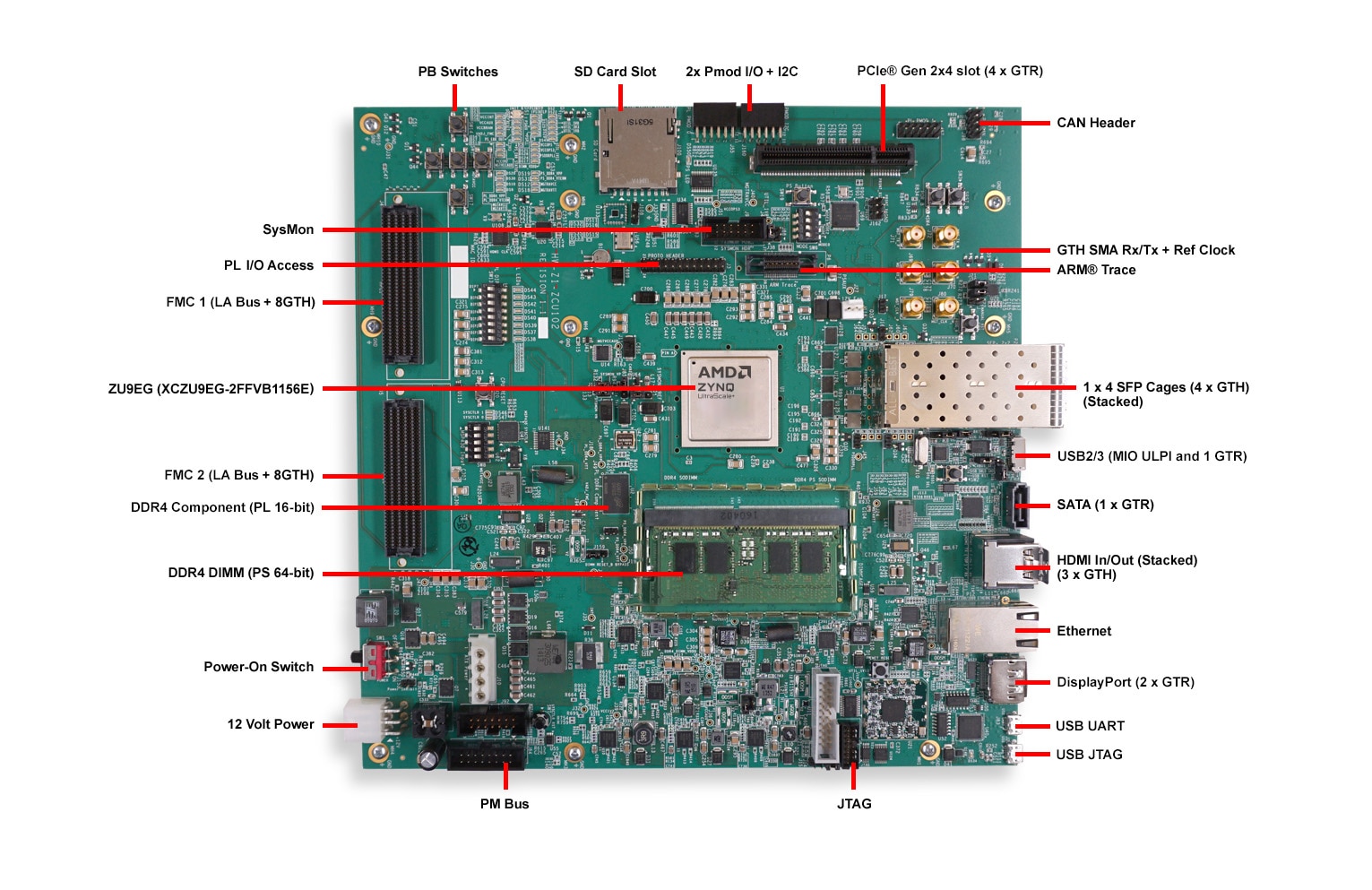

Board Features

Featuring the ZCU102 Evaluation Board

Communication & Networking

RGMII communications at 10, 100, or 1000 Mb/s. Serial GMII interface-supports a 1 Gb/s SGMII interface
4x SFP+ cage
SMA GTH support (4x SMA Tx/Rx connectors)
UART To USB bridge
RJ45 Ethernet connector
SATA (1 x GTR)**
PCIe Gen2x4 Root Port**

Clocking

Programmable clocks
System clocks, user clocks, jitter attenuated clocks
2x SMA MGT input clocks

Display

HDMI video input and output (3 GTH)
External Retimer device driving an HDMI output connector
9x GPIO user LEDs (8x PL, 1x PS)
VESA DisplayPort 1.2 source-only controller supports up to two lanes of main link data at rates of 1.62 Gb/s, 2.70 Gb/s, or 5.40 Gb/s.

Expansion Connectors

2x FMC-HPC connectors (16 GTH Transceivers, 64 differential user defined signals)
2x PMOD headers
IIC

Configuration

Onboard JTAG configuration circuitry to enable configuration over USB
Dual Quad-SPI flash memory
Boot from SD card

Memory

PS 4GB DDR4 64-bit SODIMM w/ ECC
PL 512MB DDR4 component memory ([256 Mb x 16] devices) at 1200MHz / 2400Mbps DDR
8KB IIC EEPROM
Dual 64MB Quad SPI flash
SD card slot

Control & I/O

6x Directional Push Buttons (5x PL, 1x PS)
DIP switches (8x PL)
PMBUS & System Controller MSP430 for power, clocks, and I2C bus switching
USB2/3 (MIO ULPI and 1 GTR)**

Power

12V wall adapter or ATX

** Switch enables either PCIe Root Port OR SATA, USB2/3 & DisplayPort

What's Inside

View the Kit Flyer

Zynq UltraScale+ MPSoC ZCU102 Evaluation Kit

ZCU102 Evaluation Board

Featuring the Zynq UltraScale+ XCZU9EG-2FFVB1156 MPSoC

Access to a full seat of Vivado™ Design Suite: Design Edition

Node-locked and device-locked to the XCZU9EG

Ethernet Cable

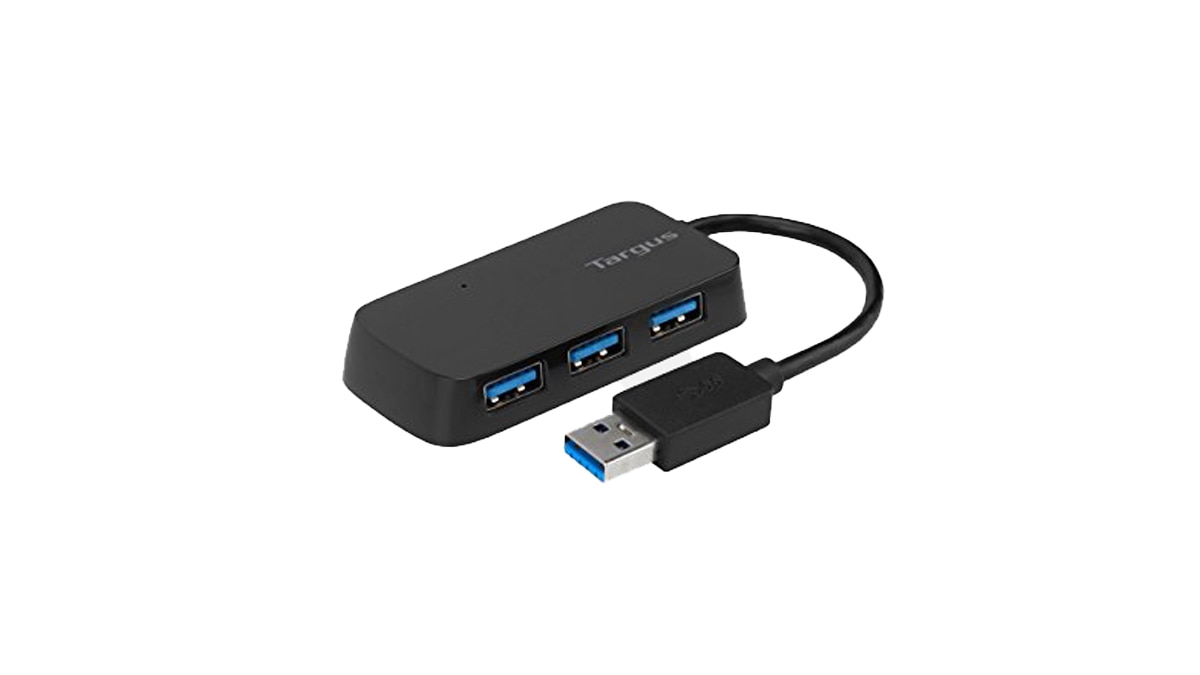

Targus USB-3

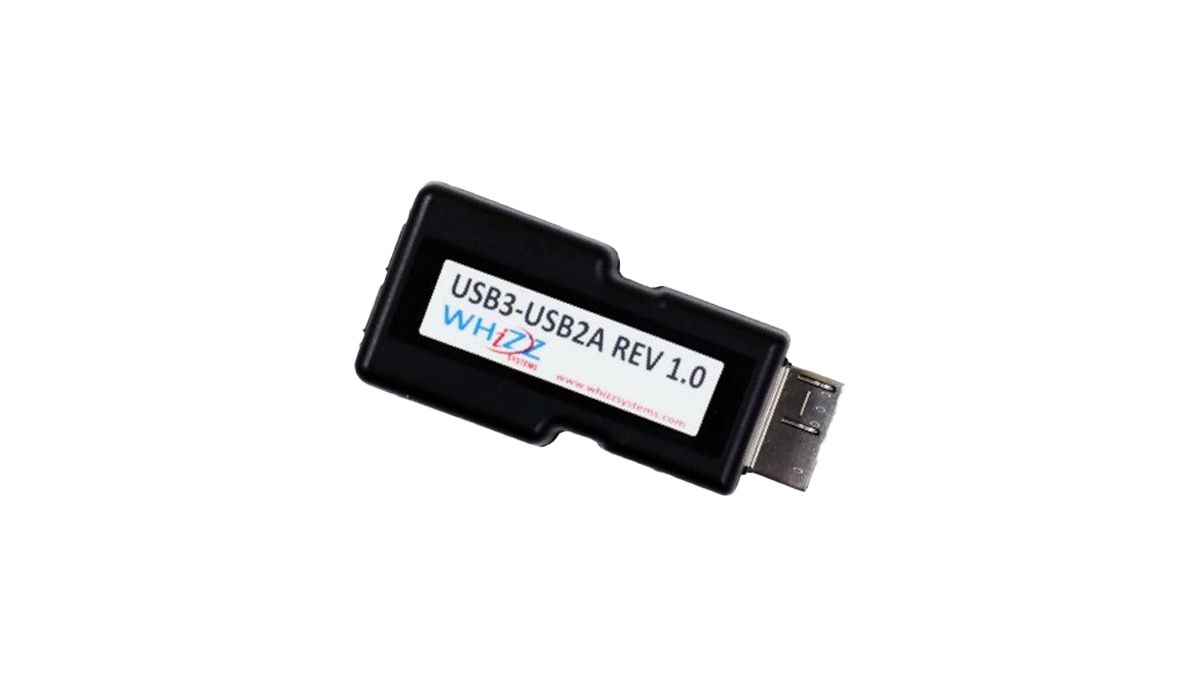

USB3 Adapter

USB Micro Cable

Power Cords and Adapter

Access to SDSoC Environment

To develop full Zynq MPSoC system using C, C++ or OpenCL

white pearl gradient medium color divider

Resources

ZCU102 Documentation

Design Tools

Name	Description	License Type	Files
Vivado Design Suite	The AMD Vivado™ Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for FPGAs and SoCs.	Node locked and device-locked to the XCZU9EG MPSoC FPGA, with one year of updates	Download Vivado Design Suite
AMD Vitis Unified Software Platform	Full suite of tools for embedded software development, hardware acceleration, and debug targeting AMD platforms.	Free	Download Vitis Embedded Platforms
PetaLinux Tools	Configure, build, and deploy Linux operating system to AMD platforms.	Free	Download Petalinux Tools

Intellectual Property

Name	Description	License Type
Memory Interface Generator (MIG)	MIG is a free software tool used to generate memory controllers and interfaces for AMD FPGAs.	No-Charge IP

Additional Tools, IP, and Resources

Name	Product Category	Item	Description
Open Source	Software Tool	TeraTerm	One of many possible terminal emulators used for serial connection from your PC to the evaluation kit.
Power Advantage Tool	Software Tool	Power Advantage Tool - Zynq UltraScale+ MPSoC	The Power Advantage Tool is a demo designed to showcase the power features of the Zynq UltraScale+ MPSoC.
Deep Learning HDL Toolbox	Support Package	MathWorks	Enables deployment of deep learning processors on AMD FPGAs and SOCs using MATLAB
Getting Started Guide for Deep Learning HDL Toolbox	Training	MathWorks	Learn how to create, compile, and deploy a dlhdl.workflow object using Deep Learning HDL Toolbox™ Support Package.

Training

Support

Recommended Accessories

SmartLynq Data Cable

View Product

Platform Cable USB II

View Product

FMC Loopback Card

View Product

Similar Products

AMD Zynq™ UltraScale+™ MPSoC ZCU106 Evaluation Kit

View Product

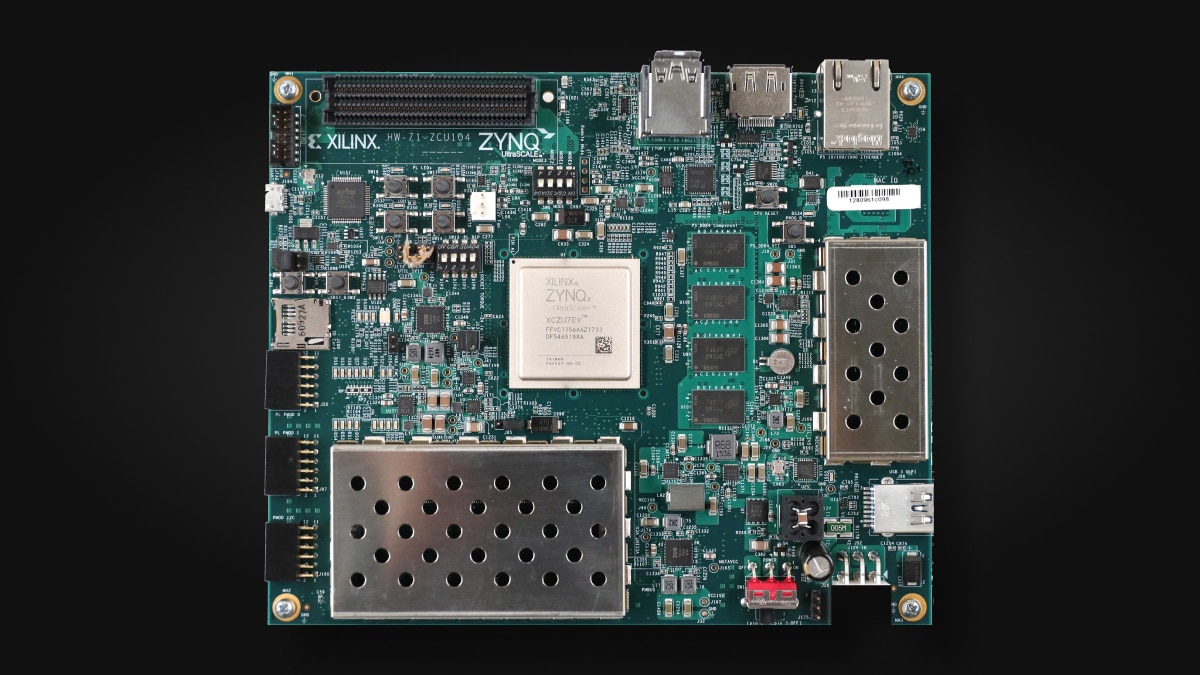

AMD Zynq™ UltraScale+™ MPSoC ZCU104 Evaluation Kit

View Product

View Product

Download Kit Selection Guide
