- Name
- AMD Radeon™ RX 9060 XT
- Family
- Radeon RX
- Series
- Radeon RX 9000 Series
- Board Type
- Desktop
- OS Support
- Windows 10 - 64-Bit Edition , Windows 11 - 64-Bit Edition , Linux x86 64-Bit
- Additional Power Connector
- 1x8-Pin
-
- Compute Units
- 32
- Boost Frequency
- Up to 3130 MHz
- Game Frequency
- 2530 MHz
- Ray Accelerators
- 32
- AI Accelerators
- 64
- Peak Pixel Fill-Rate
- Up to 200.3 GP/s
- Peak Single Precision (FP32 Vector) Performance
- 25.6 TFLOPs
- Peak Half Precision (FP16 Vector) Performance
- 25.6 TFLOPs
- Peak Half Precision (FP16 Matrix) Performance
- 103 TFLOPs
- Peak Half Precision (FP16 Matrix) Performance with Structured Sparsity
- 205 TFLOPs
- Peak 8-bit Precision (FP8 Matrix) Performance (E5M2, E4M3)
- 205 TFLOPs
- Peak 8-bit Precision (FP8 Matrix) Performance with Structured Sparsity (E5M2, E4M3)
- 410 TFLOPs
- Peak 8-bit Precision (INT8 Matrix) Performance
- 205 TOPs
- Peak 8-bit Precision (INT8 Matrix) Performance with Structured Sparsity
- 410 TOPs
- Peak 4-bit Precision (INT4 Matrix) Performance
- 410 TOPs
- Peak 4-bit Precision (INT4 Matrix) Performance with Structured Sparsity
- 821 TOPs
- ROPs
- 64
- Stream Processors
- 2048
- Texture Units
- 128
- Transistor Count
- 29.7 B
-
- Typical Board Power (Desktop)
- 160W
- Minimum PSU Recommendation
- 450W
-
- AMD Infinity Cache Technology
- 32 MB
- Memory Speed
- Up to 20 Gbps
- Max Memory Size
- 16 GB
- Memory Type
- GDDR6
- Memory Interface
- 128-bit
- Memory Bandwidth
- Up to 320 GB/s
-
- HDMI™ 4K Support
- Yes
- 4K H264 Decode
- Yes
- 4K H264 Encode
- Yes
- H265/HEVC Decode
- Yes
- H265/HEVC Encode
- Yes
- AV1 Decode
- Yes
- AV1 Encode
- Yes
-
- DisplayPort™
- 2.1a
- HDMI™
- 2.1b
-
- Supported Technologies
- AMD Software Adrenalin Edition , AMD FSR™ "Redstone" , AMD Fluid Motion Frames , AMD Noise Suppression , AMD Radeon™ Super Resolution , AMD Smart Access Memory , AMD Smart Access Video , AMD Privacy View , AMD Radeon™ Boost , AMD Enhanced Sync Technology , AMD FreeSync™ Technology , AMD Radeon™ Chill , AMD Virtual Super Resolution , AMD Radeon™ Anti-Lag 2 , AMD Radeon™ Image Sharpening 2
-
- TPP
- 1641
- TPP Density
- 8.52
-
Image Zoom

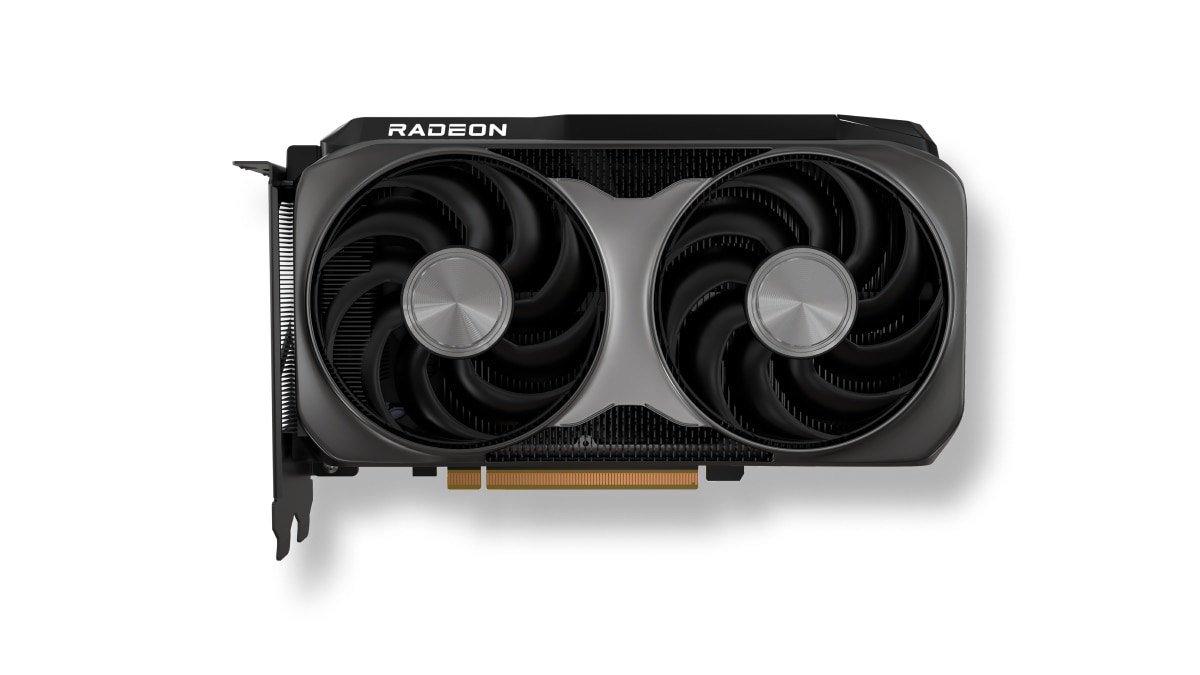

*Artist render. Not available for purchase.
AMD Radeon™ RX 9060 XT (16GB)
All You Need For Incredible Gaming
Native 1440p Ultra - Average 46% Faster than RX 7600 XT across 30+ Games1
157 FPS
F1 24
104 FPS
God of War: Ragnarok
92 FPS
Horizon Zero Dawn Remastered
77 FPS
Call of Duty: Black Ops 6
72 FPS
Dragon Age: The Veilguard
98 FPS
Assassin's Creed Mirage
79 FPS
Resident Evil 4 (RT)
139 FPS
DOOM Eternal (RT)
