- Name
- AMD Ryzen™ 7 7700X3D
- Family
- Ryzen
- Series
- Ryzen 7000 Series
- Form Factor
- Desktops , Boxed Processor
- Market Segment
- Enthusiast Desktop
- Regional Availability
- Global
- Former Codename
- Raphael AM5
- Processor Architecture
- Zen 4
- # of CPU Cores
- 8
- Multithreading (SMT)
- Yes
- # of Threads
- 16
- Max. Boost Clock
- Up to 4.5 GHz
- Base Clock
- 4 GHz
- L1 Cache
- 512 KB
- L2 Cache
- 8 MB
- L3 Cache
- 96 MB
- Default TDP
- 120W
- Processor Technology for CPU Cores
- TSMC 5nm FinFET
- Processor Technology for I/O Die
- TSMC 6nm FinFET
- CPU Compute Die (CCD) Size
- 71mm²
- I/O Die (IOD) Size
- 122mm²
- Package Die Count
- 2
- AMD EXPO™ Memory Overclocking Technology
- Yes
- Precision Boost Overdrive
- Yes
- Curve Optimizer Voltage Offsets
- Yes
- AMD Ryzen™ Master Support
- Yes
- CPU Socket
- AM5
- Supporting Chipsets
- A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
- CPU Boost Technology
- Precision Boost 2
- Instruction Set
- x86-64
- Supported Extensions
- AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
- Thermal Solution (PIB)
- Not Included
- Recommended Cooler
- Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax)
- 89°C
- *OS Support
- Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
-
- Native USB 3.2 Gen 2 (10Gbps)
- 4
- Native USB 3.2 Gen 1 (5Gbps)
- 0
- Native USB 2.0 (480Mbps)
- 1
- PCI Express® Version
- PCIe® 5.0
- Native PCIe® Lanes (Total/Usable)
- 28 , 24
- NVMe Support
- Boot , RAID0 , RAID1 , RAID10
- System Memory Type
- DDR5
- Memory Channels
- 2
- Max. Memory
- 128 GB
- System Memory Subtype
- UDIMM
- Max Memory Speed
-
2x1RDDR5-52002x2RDDR5-52004x1RDDR5-36004x2RDDR5-3600
- ECC Support
- Yes (Requires mobo support)
-
- Graphics Model
- AMD Radeon™ Graphics
- Graphics Core Count
- 2
- Graphics Frequency
- 2200 MHz
- USB Type-C® DisplayPort™ Alternate Mode
- Yes
-
- Product ID Boxed
- 100-100002235WOF
- Product ID Tray
- 100-000002235
-
- AMD Secure Processor
- Yes
- AMD Platform Secure Boot
- Yes
- Windows Secure Boot
- Yes
- UEFI Secure Boot
- Yes
- Windows Device Guard
- Yes
- Supervisor Mode Execution Prevention (SMEP)
- Yes
- Guest Mode Execution (GMET) Trap
- Yes
- Virtualization-Based Security (VBS)
- Yes
- Windows Secured-Core PC
- Yes
- Firmware TPM
- Yes
- AMD-V (SVM)
- Yes
- AMD AVIC (Interrupt Virtualization)
- Yes
- AMD-Vi (I/O MMU Virtualization)
- Yes
- Second Level Address Translation (SLAT)
- Yes
- Advanced Encryption Standard New Instructions (AES-NI)
- Yes
- AMD Enhanced Virus Protection (NX bit)
- Yes
- AMD Shadow Stack
- Yes

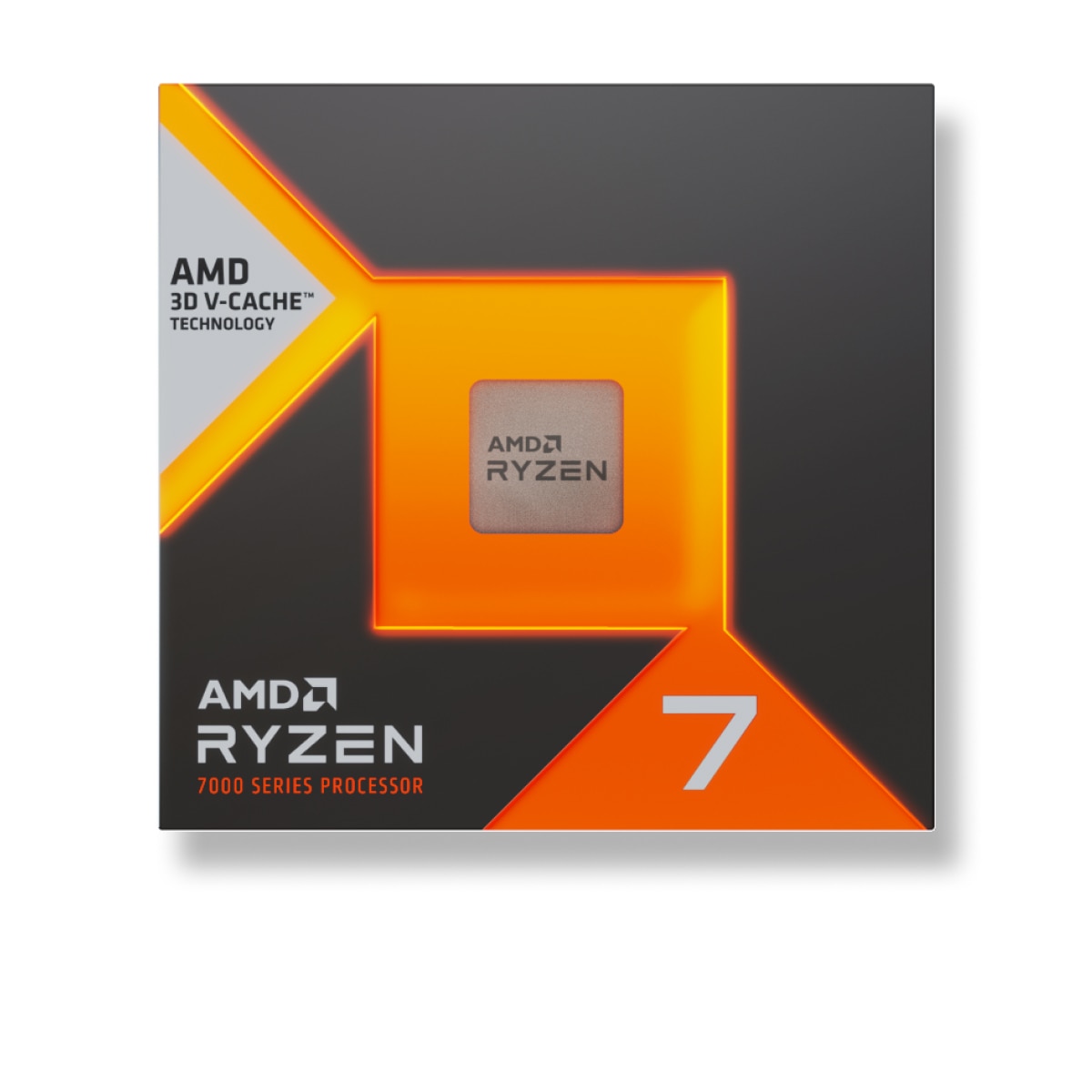

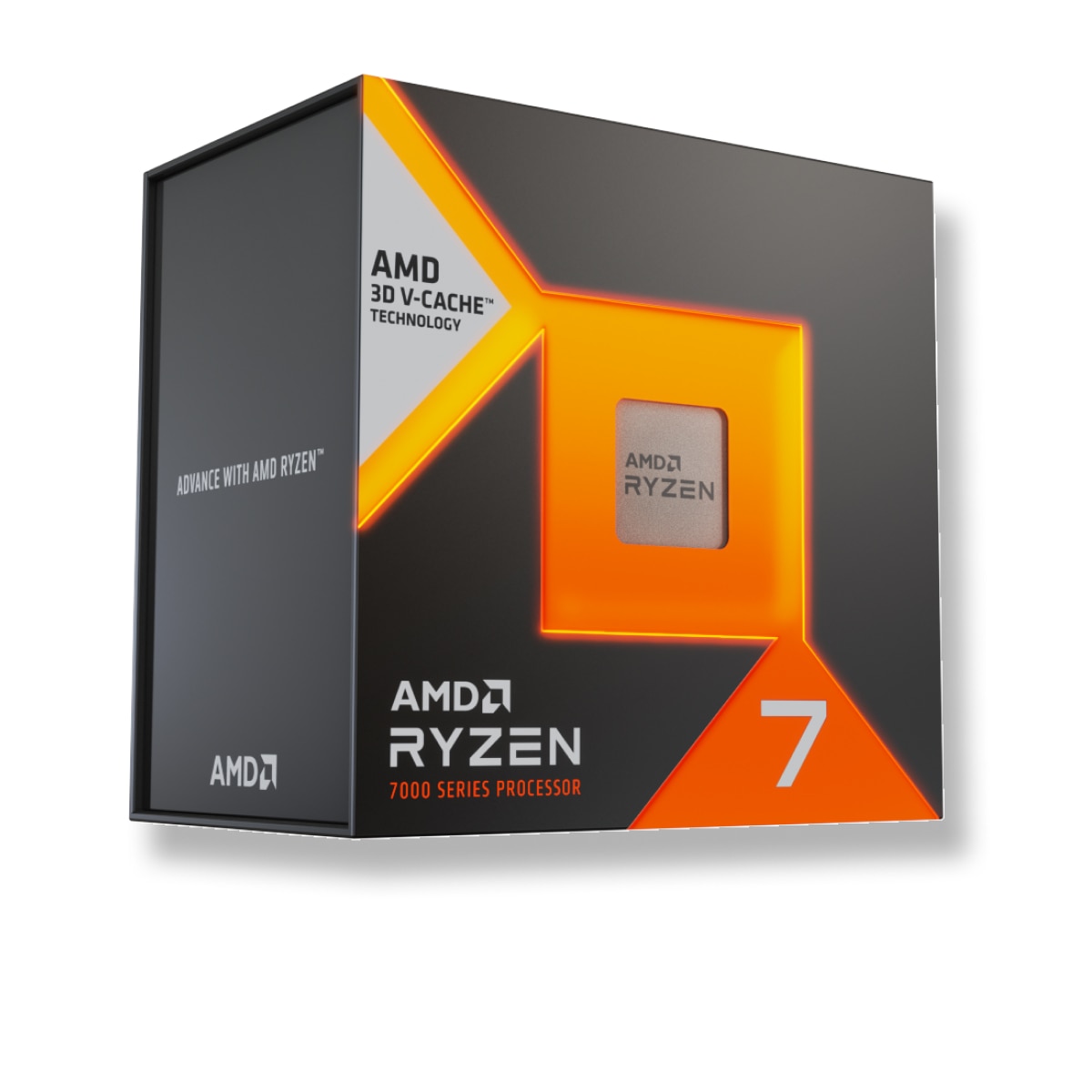

AMD Ryzen™ 7 7700X3D Desktop Processor
Whatever the setting or resolution, lead your team to victory with elite gaming performance from a powerful 8‑core AMD gaming processor featuring AMD 3D V‑Cache™ technology.
