The Sweet Spot for High-Speed Memory, Ethernet, Crypto, and Adaptive Performance: AMD Versal™ Prime VM2152 Device

Breaking the Power vs. Performance Trade-Off in High-Speed Design

Modern systems in networking, aerospace, and high-speed testing are pushing the limits of high data throughput. This creates a massive challenge for engineers: how do you move more data faster without increasing board size or the power budget?

Traditionally, high-speed interfaces have been confined to high-end FPGAs and adaptive SoCs with extensive programmable logic. While these devices deliver the required performance, they come at the cost of increased power consumption, larger board footprints, and higher system complexity, resulting in challenging designs with tight operating constraints.

Why the AMD Versal™ Prime Series VM2152 Adaptive SoC Matters to You

The AMD Versal Prime VM2152 adaptive SoC integrates 112G transceivers and support for LPDDR5 memory at 6400 Mb/s or DDR5 memory to 5600 Mb/s into a compact, power-efficient device. It offers faster LPDDR5 memory speed than competing solutions, such as Altera™ Agilex™ 7 and Agilex 5 Series FPGAs,¹ while enabling high-throughput processing in space and power-constrained designs.

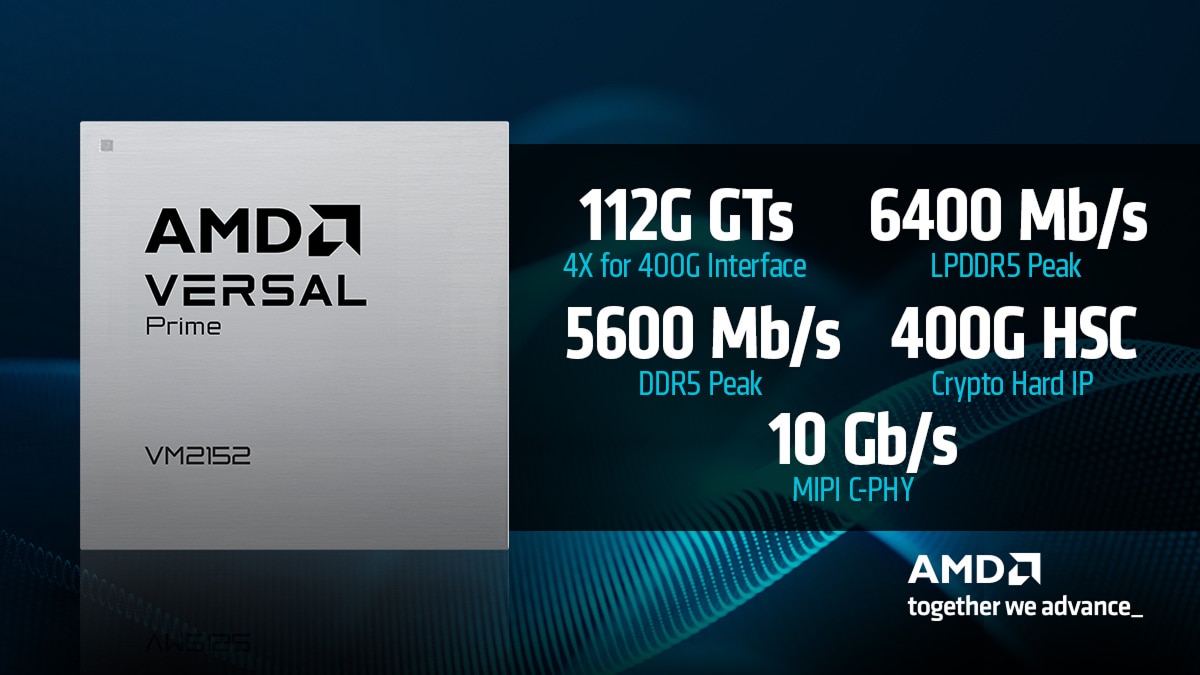

AMD Versal Prime VM2152 – Key Highlights

• 6400 Mb/s LPDDR5 → High bandwidth, efficient memory subsystem
• 5600 Mb/s DDR5 → Balanced performance for embedded systems
• 112G Transceivers → Enables high data rate connectivity
• 400G High-Speed Crypto (HSC) Hard IP → Built-in security acceleration
• Up to 10 Gb/s MIPI C-PHY & 4.5 Gb/s D-PHY → Advanced sensor interface capability

Feature availability varies by device, package, and configuration. See the AMD Versal Prime Portfolio Product Selection Guide (XMP453) for details.

Target Industries & Applications

Wired — High-Throughput I/O Bridging & Coprocessing

• 400G interface with four 112G (or eight 56G) gigabit transceivers (GTs)
• Power & area efficiency from built-in hard IP cores
• 600G & 100G Ethernet hard IP cores (DCMAC, MRMAC)
• 400G HSC hard IP core for data security
• LPDDR5 hard IP memory interface for packet buffering

This helps designers to scale performance with minimal impact on system costs or power.

Wireless — Radio & Baseband Processing

• More DSP58 Engines for digital signal processing & data compression
• 56G or 112G GTs for 50G and 100G network interfaces
• Processor system with 2x Arm® A72 cores for SyncE & other processing needs

This supports evolving wireless standards without overdesigning hardware.

Test & Measurement — MIPI Testers & High-Speed DDR Access

• 10 Gb/s MIPI C-PHY for latest camera module & automotive ADAS testers
• 4.5 Gb/s MIPI D-PHY for display module testers
• 6400-LPDDR5 / 5600-DDR5 support

This significantly accelerates validation cycles while reducing overall system complexity.

Other Industries that Require DSP and High-Speed Memory Access

• High-speed DDR memory — 6400-LPDDR5 / 5600-DDR5
• More DSP block-to-logic ratio — more than previous Versal Prime devices
• Fast I/O — 112G GTs, 600G Ethernet hard IP (DCMAC), 10 Gb/s MIPI C-PHY
• Compact packages — as small as 31x31 mm

This makes it easier to build scalable solutions across multiple markets without redesigning.

One Chip. Multiple Industries. Zero Compromise.

The AMD Versal Prime VM2152 adaptive SoC features a unified architecture that integrates high-speed I/O, FPGA adaptive compute, and multi-protocol connectivity into a single, efficient device.

From ultra-high-speed networking and precision test equipment to broad-market embedded applications, the VM2152 device is built to support multiple markets and a breadth of use cases, delivering performance where it matters most.

Throughput Redefined in Mid-Range FPGAs

For more details on how the VM2152 delivers massive bandwidth without the thermal compromise, visit the AMD Versal Prime Series product page.
