by: AMD

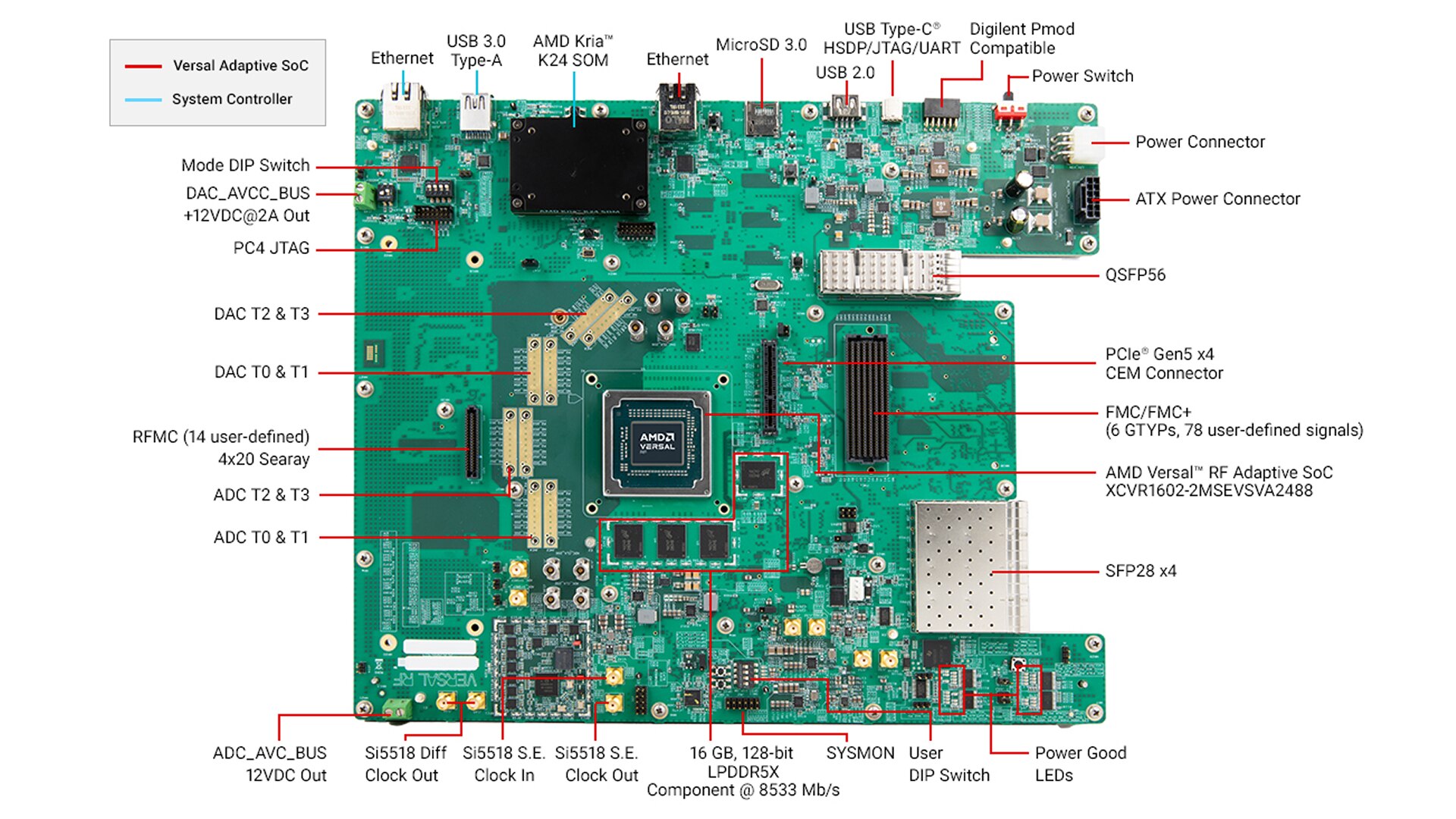

The VRK160 Evaluation Kit, equipped with the AMD Versal™ RF XCVR1602 adaptive SoC, is uniquely suited for rapid prototyping of pre-6G wireless, radar, and a breadth of RF applications. This product is currently available to qualified customers. Please contact your local sales representative.
Aerospace and Defense
Test and Measurement
Wireless
Featuring the Versal RF Series XCVR1602-2MSEVSVA2488 adaptive SoC
| 14-bit RF-ADC | 16 @ 8 GSPS |
| 14-bit RF-DAC | 16 @ 16 GSPS |
| AI Engine Tiles | 126 |
| LDPC Decoder | 4 |
| Channelizer | 224 |
| FFT/iFFT | 28 |
| System Logic Cells | 1,205,400 |
| LUTs | 551,040 |
| DSP58 | 2,256 |
| Total PL Memory (Mb) | 156 |
| DDR Memory Controllers | 5 |
| GTYP Transceivers | 12 |
| GTM Transceivers (56G/112G) | 8 (4) |
| 100G Multirate Ethernet MAC | 2 |
| PCI Express® | 1 x Gen5 x4 |
Featuring the AMD Versal™ RF Series XCVR1602-2MSEVSVA2488 adaptive SoC
Certain AMD technologies may require third-party enablement or activation. Supported features may vary by operating system. Please confirm with system manufacturer for specific features. No technology or product can be completely secure.
