- Name
- AMD Radeon™ PRO W7800 48GB
- Family
- Radeon PRO
- Series
- Radeon PRO W7000 Series
- Form Factor
- Workstations
-
- GPU Architecture
- AMD RDNA™ 3
- Hardware Raytracing
- Yes
- Lithography
- TSMC 5nm GCD 6nm MCD
- Ray Accelerators
- 70
- AI Accelerators
- 140
- Stream Processors
- 4480
- Compute Units
- 70
- Peak Single Precision (FP32 Vector) Performance
- 45.2 TFLOPs
- Peak Half Precision (FP16 Vector) Performance
- 45.2 TFLOPs
- Peak Half Precision (FP16 Matrix) Performance
- 90.4 TFLOPs
- Peak 8-bit Precision (INT8 Matrix) Performance
- 90.4 TOPs
- Peak 4-bit Precision (INT4 Matrix) Performance
- 181 TOPs
- Transistor Count
- 57.7 Billion
- OS Support
- Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , Linux x86 64-Bit
-
- External Power Connectors
- 2x8-Pin
- Total Board Power (TBP)
- 260W
- Minimum PSU Recommendation
- 700W
-
- Dedicated Memory Size
- 48 GB
- Dedicated Memory Type
- GDDR6
- AMD Infinity Cache Technology
- 96 MB
- Memory Interface
- 384-bit
- Peak Memory Bandwidth
- 864 GB/s
- Memory ECC Support
- Yes
-
- GPU Form Factor
- PCIe® Add-in Card
- Bus Type
- PCIe® 4.0 x16 (3.0 Backward Compatible)
- Cooling
- Active
-
- DisplayPort™
- 3x DisplayPort™ 2.1 and 1x Enhanced Mini DisplayPort™ 2.1
- Display Configurations
- 4x 4096 x 2160 (4K DCI) @ 120Hz with DSC, 2x 6144 x 3456 (6K) 12-bit HDR @ 60Hz Uncompressed, 1x 7680 x 4320 (8K) 12-bit HDR @ 60Hz Uncompressed, 1x 12288 x 6912 (12K) @ 120Hz with DSC
- HDR Support
- Yes
- 8K Support
- Yes
- 10K Support
- Yes
- 12K Support
- Yes
-
- Supported Video Formats
- 1x Encode & Decode (AV1) , 2x Decode (H265∕HEVC，4K H264) , 2x Encode (H265∕HEVC，4K H264)
- Supported Technologies
- AMD Viewport Boost , AMD Remote Workstation , AMD Radeon™ Media Engine , AMD Software PRO Edition , AMD Radeon™ VR Ready Creator , AMD Radeon™ ProRender
- 10-bit Display Color Output
- Yes
- 12-bit Display Color Output
- Yes
- 3D Stereo Support
- Yes
-
- DirectX®
- 12.0 Ultimate
- OpenGL®
- 4.6
- OpenCL™
- 2.1
- Vulkan®
- 1.3
-
- TPP
- 1448
- TPP Density
- 2.87
-
Image Zoom

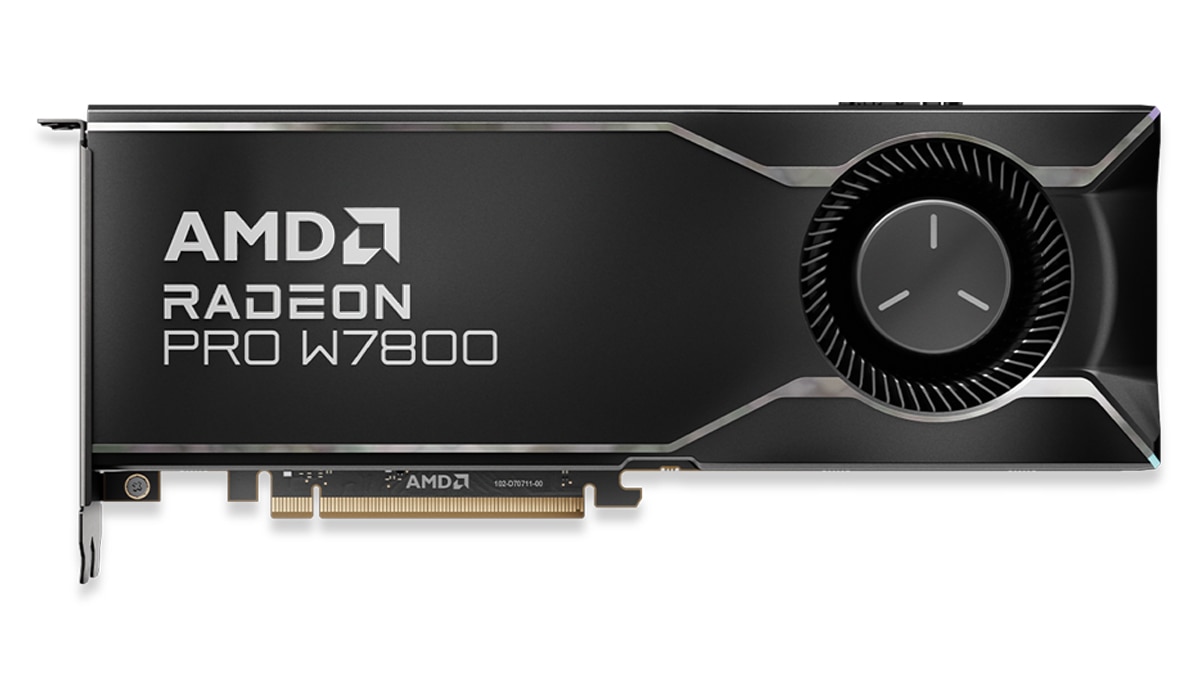

AMD Radeon™ PRO W7800 48GB Professional Graphics
Design Intelligently. Built for heavy workloads with 48GB GDDR6 Memory, 3x DisplayPort ™ 2.1, and AMD Radiance Display™ Engine -a revolution of light, color and detail with 12-bit HDR.
