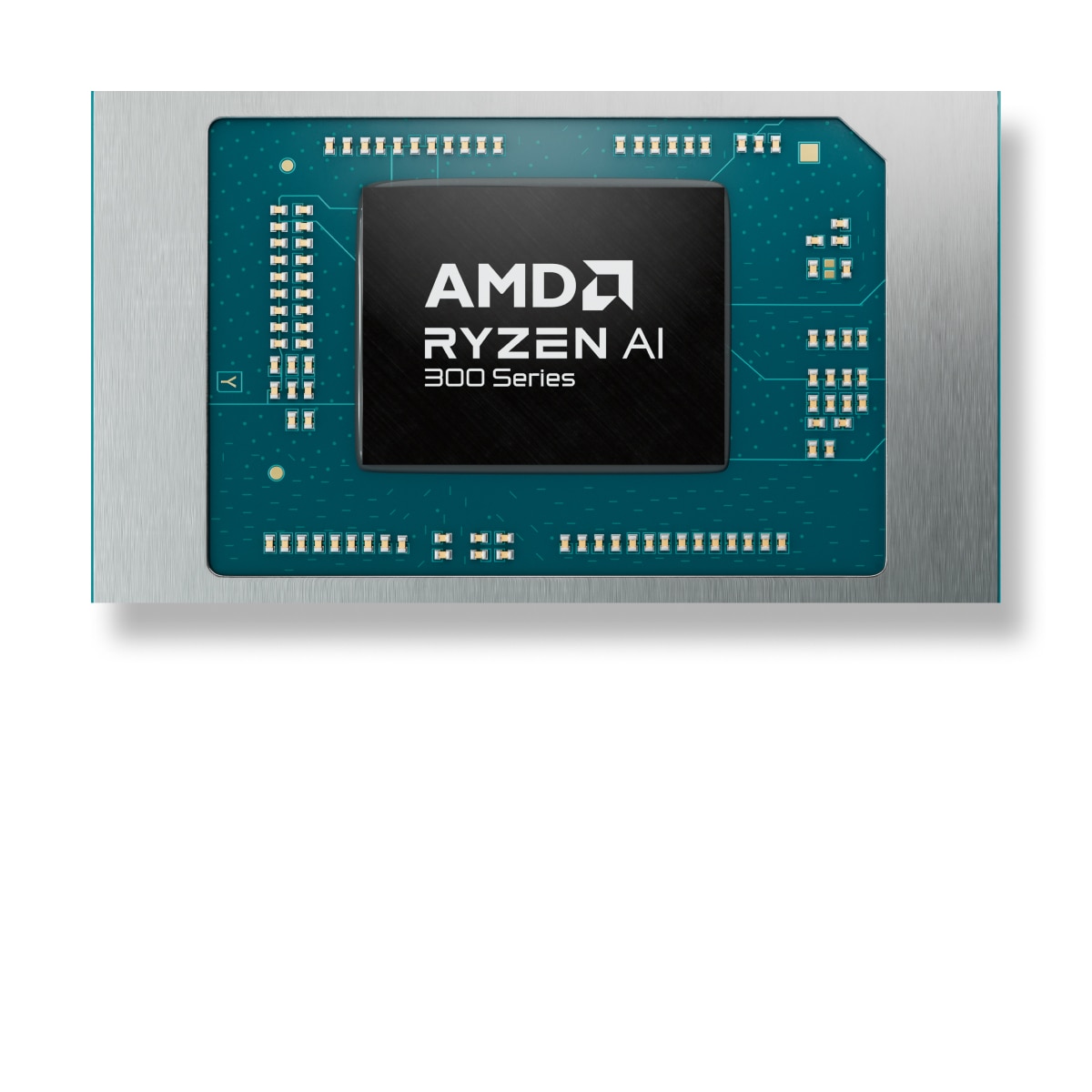

    AMD Ryzen™ Al 5 330

AMD Ryzen™ AI 5 330

AI-ready processor for responsive everyday computing

  • Name
    AMD Ryzen™ AI 5 330
    Family
    Ryzen
    Series
    Ryzen AI 300 Series
    Form Factor
    Laptops , Desktops
    Regional Availability
    Global
    Former Codename
    Krackan Point
    Processor Architecture
    1x Zen 5 , 3x Zen 5c
    # of CPU Cores
    4
    Multithreading (SMT)
    Yes
    # of Threads
    8
    Max. Boost Clock
    Up to 4.5 GHz
    Max Zen5c Clock
    Up to 3.4 GHz
    Base Clock
    2 GHz
    Zen5 Base Clock
    2 GHz
    Zen5c Base Clock
    2 GHz
    L2 Cache
    4 MB
    L3 Cache
    8 MB
    Default TDP
    28W
    AMD Configurable TDP (cTDP)
    15-28W
    Processor Technology for CPU Cores
    TSMC 4nm FinFET
    Package Die Count
    1
    AMD EXPO™ Memory Overclocking Technology
    No
    Precision Boost Overdrive
    Yes
    Curve Optimizer Voltage Offsets
    No
    CPU Socket
    FP8
    Supported Extensions
    AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
    Max. Operating Temperature (Tjmax)
    100°C
    Launch Date
    7/30/2025
    *OS Support
    Windows 11 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

  • Native USB 4 (40Gbps)
    2
    Native USB 3.2 Gen 2 (10Gbps)
    2
    Native USB 2.0 (480Mbps)
    3
    PCI Express® Version
    PCIe® 4.0
    Native PCIe® Lanes (Total/Usable)
    14 , 14
    NVMe Support
    Boot , RAID0 , RAID1
    System Memory Type
    DDR5 (FP8) , LPDDR5X (FP8)
    Memory Channels
    2
    Max. Memory
    256 GB
    Max Memory Speed
    4x2R
    LPDDR5x-8000, DDR5-5600
    ECC Support
    No

  • Graphics Model
    AMD Radeon™ 820M
    Graphics Core Count
    2
    Graphics Frequency
    2800 MHz
    DirectX® Version
    12
    DisplayPort™ Version
    2.1
    DisplayPort Extensions
    Adaptive-Sync , HBR3 , UHBR10
    DisplayPort Max Refresh Rates (SDR)
    7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
    DisplayPort Max Refresh Rates (HDR)
    7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
    HDMI® Version
    2.1
    HDCP Version Supported
    2.3
    USB Type-C® DisplayPort™ Alternate Mode
    Yes
    Multi-Monitor Support
    Yes
    Max Displays
    4
    AMD FreeSync™
    Yes
    Wireless Display
    Miracast
    Max Video Encode Bandwidth (SDR)

    1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

    Max Video Decode Bandwidth

    1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc

  • AMD Ryzen™ AI
    Available
    Overall TOPS
    Up to 56 TOPS
    NPU TOPS
    Up to 50 TOPS

  • Product ID Tray
    100-000001897

  • AMD Enhanced Virus Protection (NX bit)
    Yes
