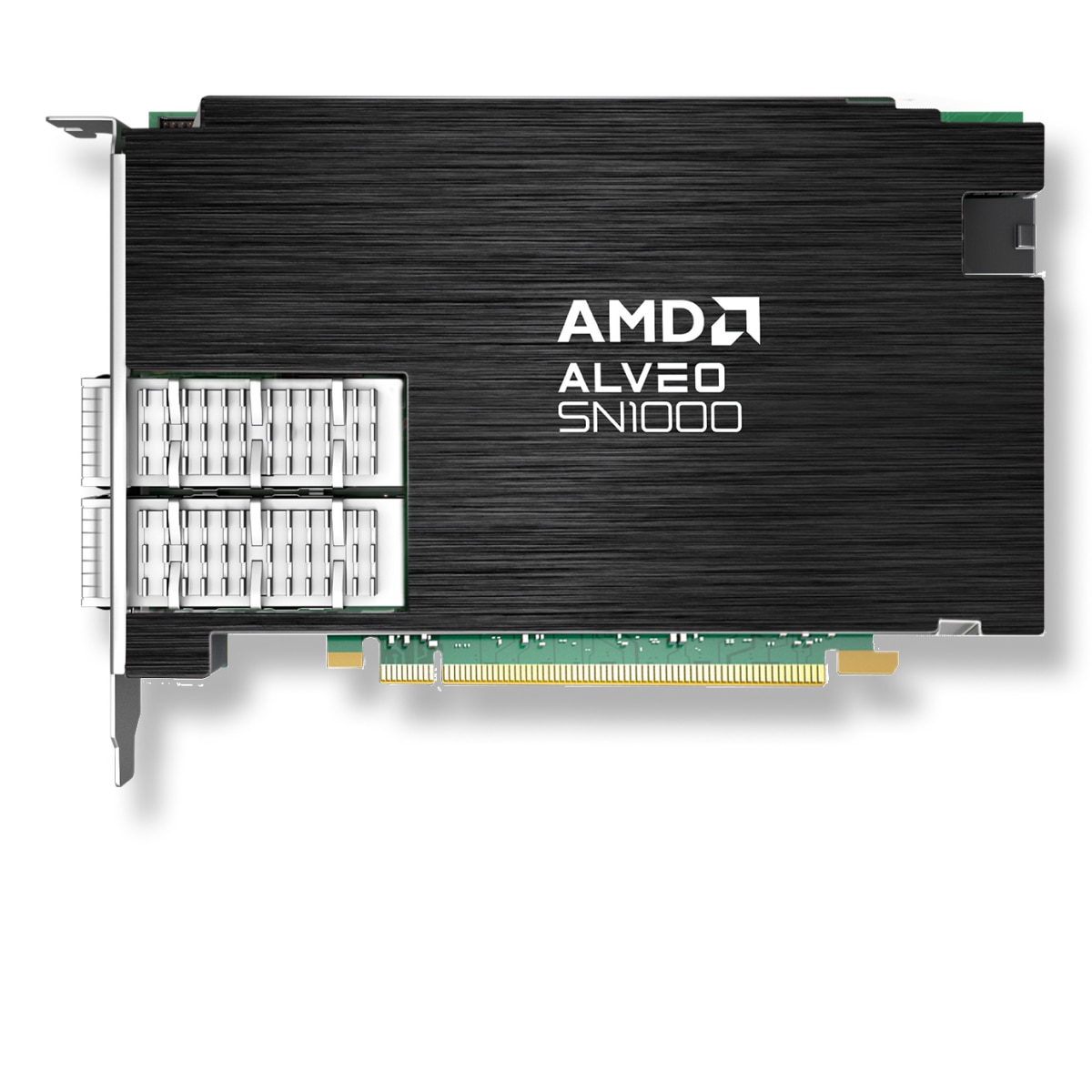

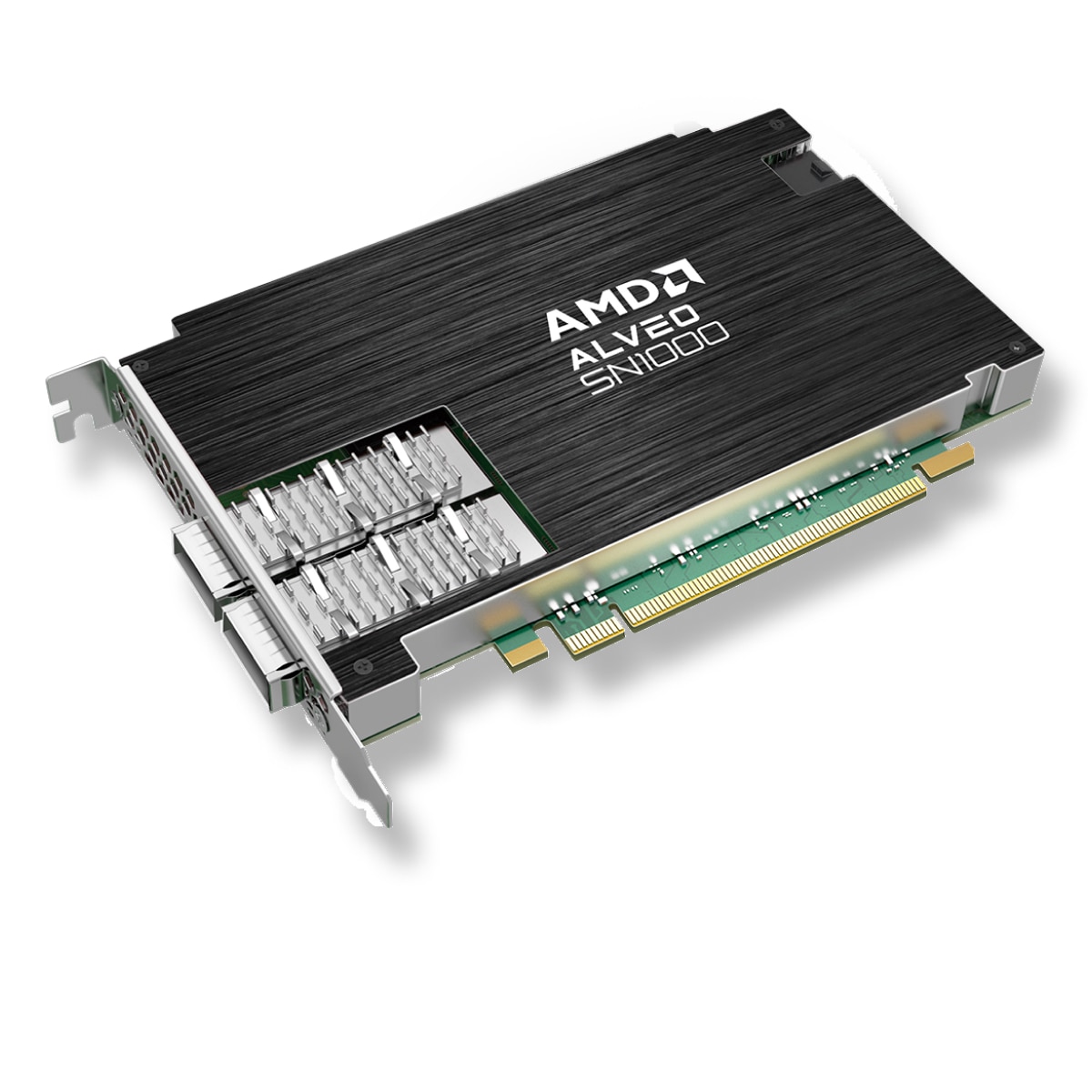

AMD Alveo™ SN1000 SmartNIC Accelerator Card

The AMD Alveo™ SN1000 is the industry’s first SmartNIC offering software-defined hardware acceleration for all function offloads in a single platform.

  • Part Number:
    • A-SN1022-P4

While the Alveo SN1022 adaptive SmartNIC is actively being supported for current users, AMD recommends that all new designs target the Alveo U45 network accelerator. Contact an AMD product specialist for any questions.

Overview

AMD Alveo SN1000 SmartNICs directly offload CPU-intensive tasks to optimize networking performance, with an architecture that can accelerate a broad range of custom offloads at line rate, including support for customer-built and third-party offloads.

Based on the AMD 16nm UltraScale+™ architecture, SN1000 SmartNICs are powered by the low-latency AMD XCU26 FPGA and a 16-core Arm® processor.

Key Features & Benefits

P4 Programmability
The SN1000 features full protocol-level offload acceleration customization, application-specific data paths, and the ease of P4 high-level language programming. Vitis™ Networking, P4 toolkit from AMD, enables customers to compose custom offloads and tweak existing offloads to handle new protocols and applications without replacing hardware.

Customized Offloads
SN1000 SmartNICs provide software-defined hardware acceleration for a wide range of networking, security, and storage offloads.

  • Network: Open vSwitch and virtualization acceleration (Virtio.net)
  • Security: IPsec, kTLS and SSL/TLS
  • Storage: Virtio.blk, NVMe™ over TCP, Ceph, and compression and crypto services

  • Board Specifications

    PCI Express

    PCIe Gen 4 x8 or Gen 3 x16

    Network Interfaces

    2x100G QSFP28 DA copper or optical transceiver

    Link Speeds

    100GbE

    Arm Processor
    Discrete 16-core Cortex-A72 Processor
    DDR Memory

    -1x 4GB x 72 DDR4-2400 (Arm® Processor) -2x 4GB x 72 DDR4-2400 (FPGA)

  • Performance

    Full Duplex Throughput

    200 Gb/s

    Packet Rate

    100 Mpps

    TCP Throughput

    100 Gb/s

    Latency (1/2 RTT)

    <3us

    OVS Performance(1)

    100 Gb/s

    Flow Table Entries

    4M stateful connections

    IPsec Encryption Throughput

    100 Gb/s (AES-GCM)

  • Dimensions

    Height

    FHHL PCIe CEM 0.72 inch (18.3 mm)

    Length

    6.59 inch (167.5 mm)

    Width

    4.38 inch (111.15 mm)

  • Networking

    Stateless Offloads

    Yes

    Tunneling Offloads

    VXLAN / NVGRE / Custom

    SR-IOV

    Yes

    Advanced Packet Filtering

    Yes

    Acceleration

    TCPDirect – TCP/UDP, Open Virtual Switch (OVS), Virtio-net, vDPA, DPDK, Onload™, Virtio-blk,  Ceph RBD Client Offload

  • Manageability

    PMCI Protocols

    NC-SI, PLDM Monitoring and Control, PLDM MCTP

    PMCI Transports

    MCTP SMBus, MCTP PCIe VDM

    Boot Support

    UEFI

    Maximum Total Power

    75W

    Software and FPGA Extensibility via Dynamically Loadable Plugins

    Yes

    Vitis Developer Environment

    Yes
