Product Features
- Industry’s first open, fully integrated platform for autonomous robotics
Features SOM based on Ryzen™ AI Embedded X199 processor (integrated CPU, GPU, NPU) and robotics carrier card with Spartan™ UltraScale+™ FPGA
Offers determinism and lower latency along with a range of interface options for physical AI uses cases
- Developer-friendly with customizable solutions, broad and open-source ecosystem
Day 0 support for AMD Robotics Software Suite
Build freely and securely on the AMD open, vertically integrated robotics SDK
Leverage AMD ROCm™ software and optimized AI frameworks
- Out-of-the Box ready for developers and highly accessible
Enables rapid prototyping, out-of-the-box, with integrated AI software stack enabling end-to-end development
Move seamlessly from development to deployment; Get to market faster
Available through AMD and distribution partners worldwide

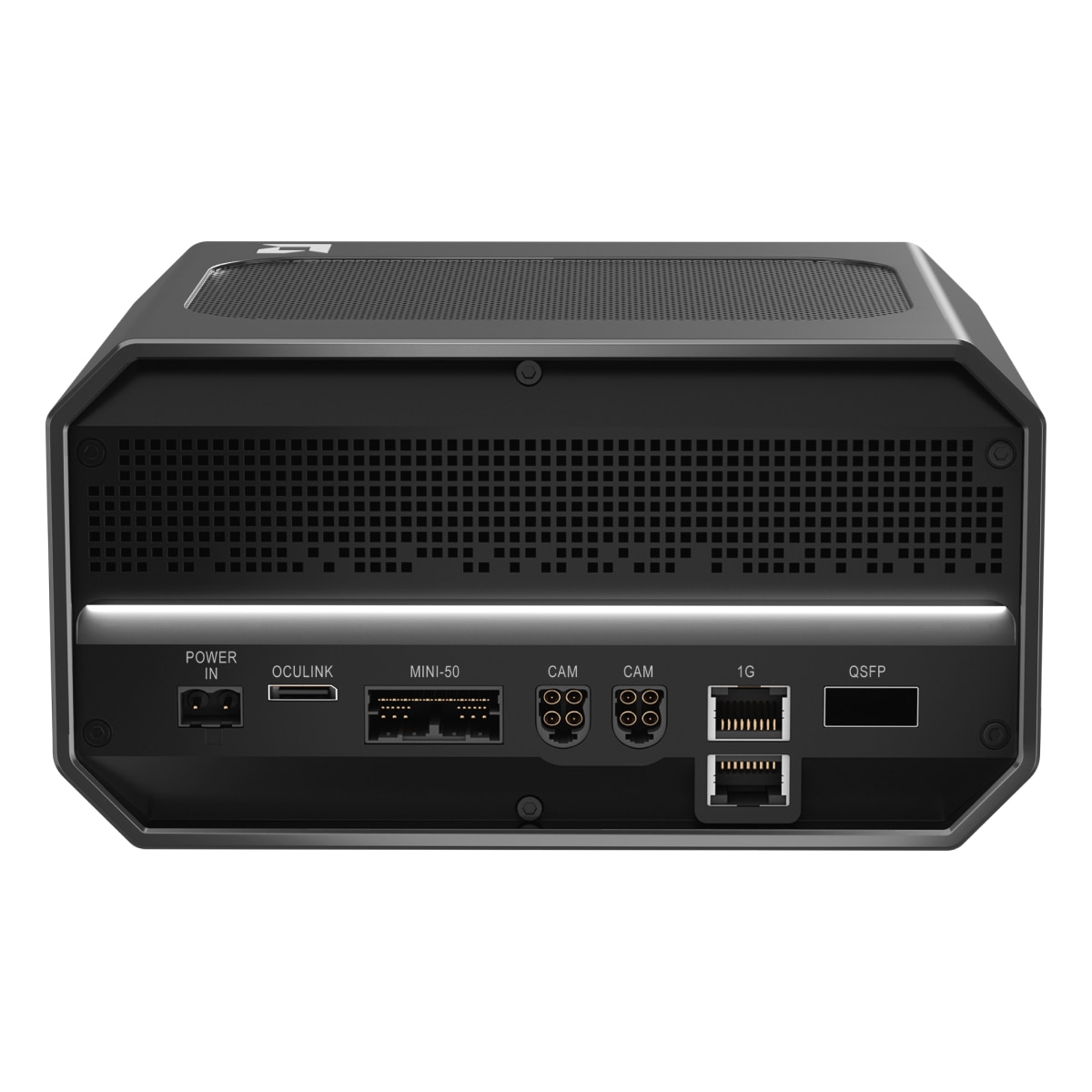

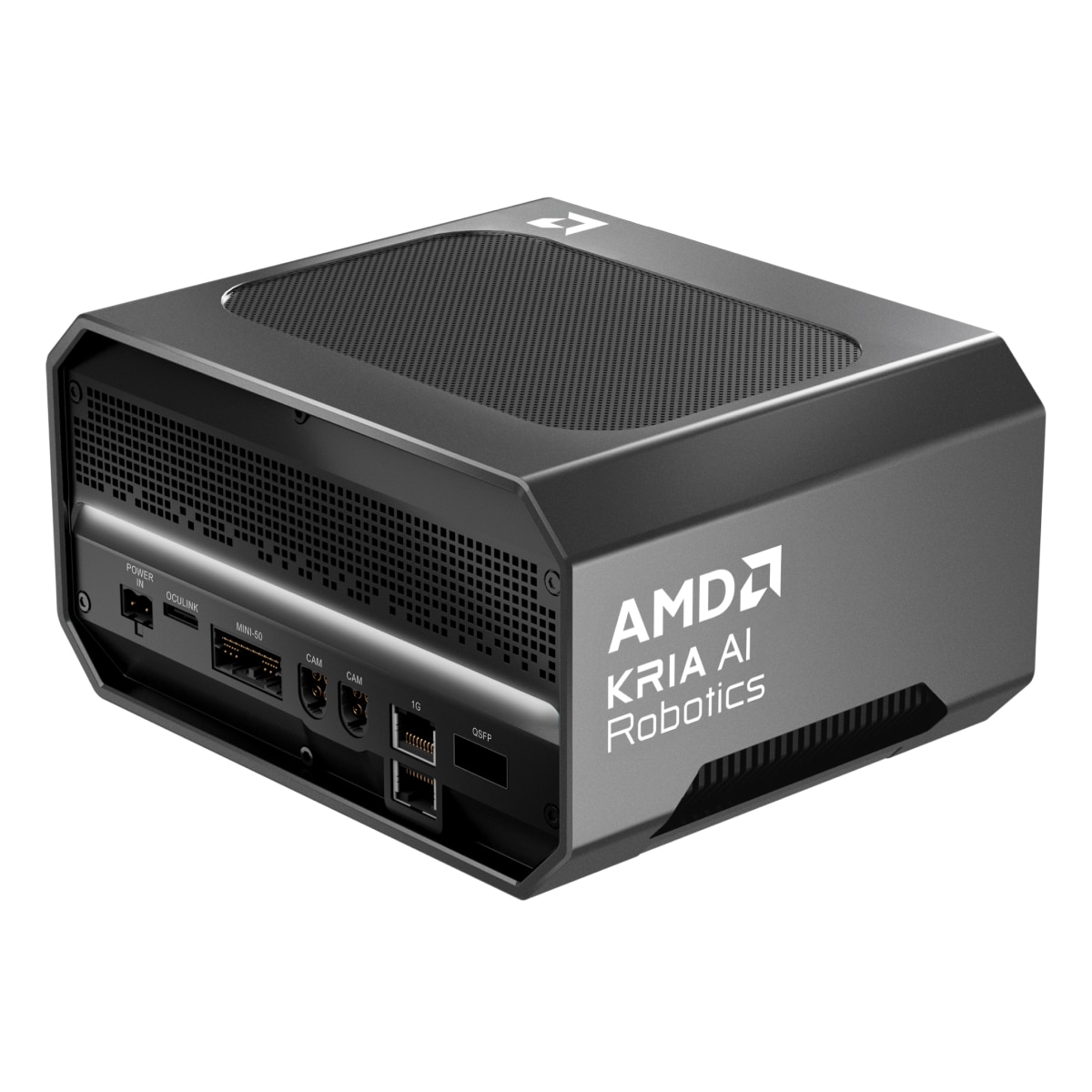

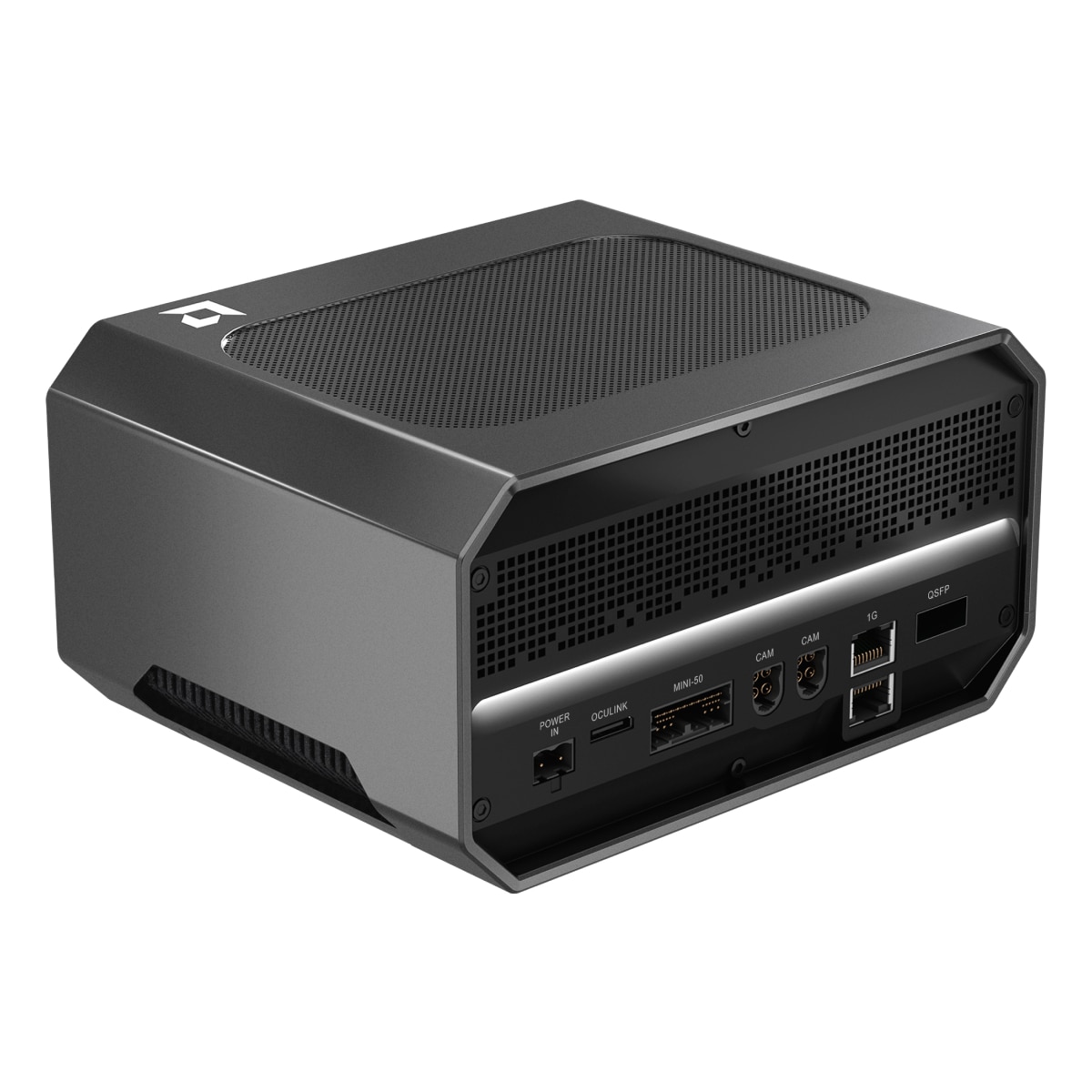

AMD Kria™ AI Robotics Developer Platform
by: AMD
Development platform for Kria™ AI SOM targeting physical AI and robotics use cases. Delivers a single platform with heterogenous compute and is seamlessly compatible with AMD software solutions and the AMD Robotics Software Suite.
-
General Specifications
- Device
AMD Ryzen AI Embedded X100 Series X199 processor (16-core CPU, 60 FP16 TFLOPS GPU and up to 50 TOPS NPU performance)
- Form Factor
SOM + carrier card + thermal enclosure
- Memory
64GB and 128GB LPDDR5X options
- Networking
2x 1/2.5/5 Gigabit Ethernet RJ45
2x 1 Gigabit Ethernet RJ45 (EtherCAT/TSN)
1x 10 Gigabit Ethernet (x4) QFSP
2x CAN-FD
1x RS485
- General Connectivity
2x USB4 Type-C
3x USB 3.2 Type-C
2x USB 2.0 Type-A
- Display
2x Mini DisplayPort
- Camera
1x FAKRA x4 camera (GMSL2/3)
1x FAKRA x4 camera (GMSL1/2)
- Audio
1x audio jack
1x A2B (Automotive Audio Bus)
- I/O Expansion*
1x Oculink PCIe connector
1x M.2 (NVMe SSD) 2280 Key M
1x M.2 (WiFi/Bluetooth) 2230 Key E
1x Pmod
1x Inertial Measurement Unit (IMU)
*Accessible by removing enclosure
