Integrated Memory. Simplified Design.
The AMD Versal™ Premium Gen 2 Memory on Package (MoP) adaptive SoC integrates compute and memory to deliver high performance, simplified design, and faster time-to-market.
Up to 60% board area savings for compact system design1
Up to 288 GB/s projected DRAM bandwidth for data-intensive workloads2
Simplified board design and reduced validation complexity3
15-year lifecycle with industrial temperature support4
Versal Premium Gen 2 MoP adaptive SoCs integrate DRAM directly into the package, helping eliminate need for external memory interfaces and reducing board size and complexity.
High bandwidth, compact footprint, faster bring-up.
While systems push to higher levels of performance in smaller form factors, the need to get your products to market faster is more intense than ever. Versal Premium Gen 2 MoP can save months of engineering effort because this memory interface has already been designed and verified for you.
Device Name |
2VP3422 |
2VP3522 |
2VP3622 |
System Logic Cells (K) |
2,561 |
3,273 |
3,273 |
CLB LUTs (K) |
1,172 |
1,496 |
1,496 |
Total RAM (Mb)* |
256 |
327 |
327 |
Integrated LPDDR5X Capacity / Controllers |
32 GB / Eight x32b |
32 GB / Eight x32b |
32 GB / Eight x32b |
DSP Engines |
6,080 |
2,512 |
7,616 |
PCIe® w/ DMA & CXL® 3.1 (CPM6) |
2x Gen6x8 |
2x Gen6x8 |
2x Gen6x8 |
Max. I/O (XP5IO/MIO) |
194 / 78 |
194 / 78 |
194 / 78 |
GTM2 Transceivers |
56 |
72 |
72 |
* Total RAM = Maximum Distributed RAM + Total Block RAM + Total UltraRAM
Verify all data in the above table with the device data sheets or product guides.
Engineers familiar with designing on Versal Premium Series Gen 2 can transition to Versal Premium Gen 2 Memory on Package devices with minimal changes to their existing development flow.
Versal Premium Gen 2 MoP devices use the same AMD Vivado™ and Vitis™ tool environment, the same programmable logic architecture, and the same NoC-based system design methodology you already know from Versal Premium Series Gen 2.
Familiar Vivado IP Integrator workflows
Existing RTL and software development flows
Consistent timing closure and implementation methodology
Reuse of existing design expertise and infrastructure
The difference is a set of system-level advantages that come with a higher level of integration.
With memory integrated directly into the package, Versal Premium Gen 2 MoP devices simplify board design, reduce high-speed memory routing complexity, and enable higher memory bandwidth density — while preserving a familiar AMD adaptive SoC development experience. For teams already targeting Versal Premium Series Gen 2, Versal Premium Gen 2 MOP is an easy migration.
Memory on Package (MoP) integrates DRAM directly with the adaptive SoC in a single package, rather than placing memory separately on the board. This approach helps eliminate the need for external memory routing and interface design, helping simplify development while improving system performance and efficiency.
By integrating memory into the package, MoP helps eliminate many of the challenges associated with external memory interfaces, such as signal integrity (SI) and power integrity (PI) considerations. This can significantly simplify board layout and reduce validation effort, helping accelerate development timelines.
Versal Premium Gen 2 MoP delivers high memory bandwidth—up to 288 GB/s projected—enabling efficient processing of data-intensive workloads. The integrated architecture also helps improve overall system efficiency compared to traditional onboard memory approaches.

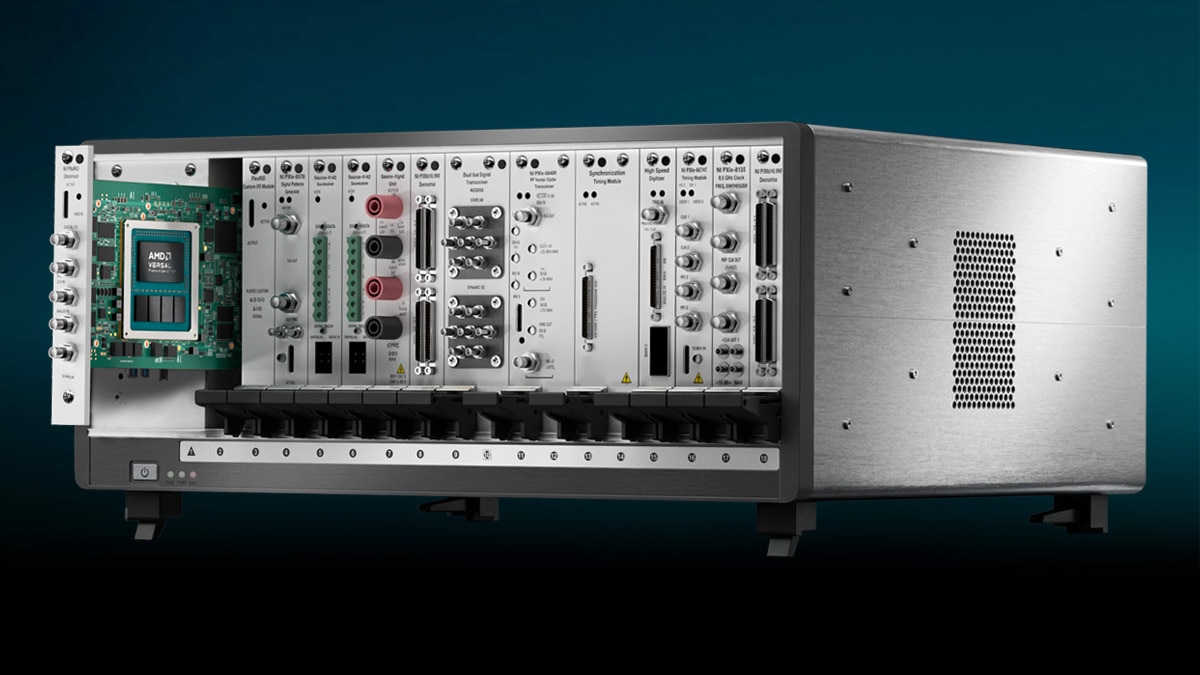

This solution is well suited for compute- and memory-intensive and space-constrained applications, including: aerospace & defense systems (e.g., 3U VPX), professional AV and broadcast equipment, and test and measurement systems. These applications benefit from the combination of a compact footprint, high bandwidth, and simplified design.
Versal Premium Gen 2 MoP devices are designed for long-life deployments, offering 15+ year lifecycle⁴ and support for industrial temperature ranges (-40°C to 110°C). This makes them suitable for mission-critical and embedded applications that require long-term availability and reliability.
Discover how Versal Premium Gen 2 Memory on Package adaptive SoCs can help you build compact, high-performance systems with faster development cycles.
